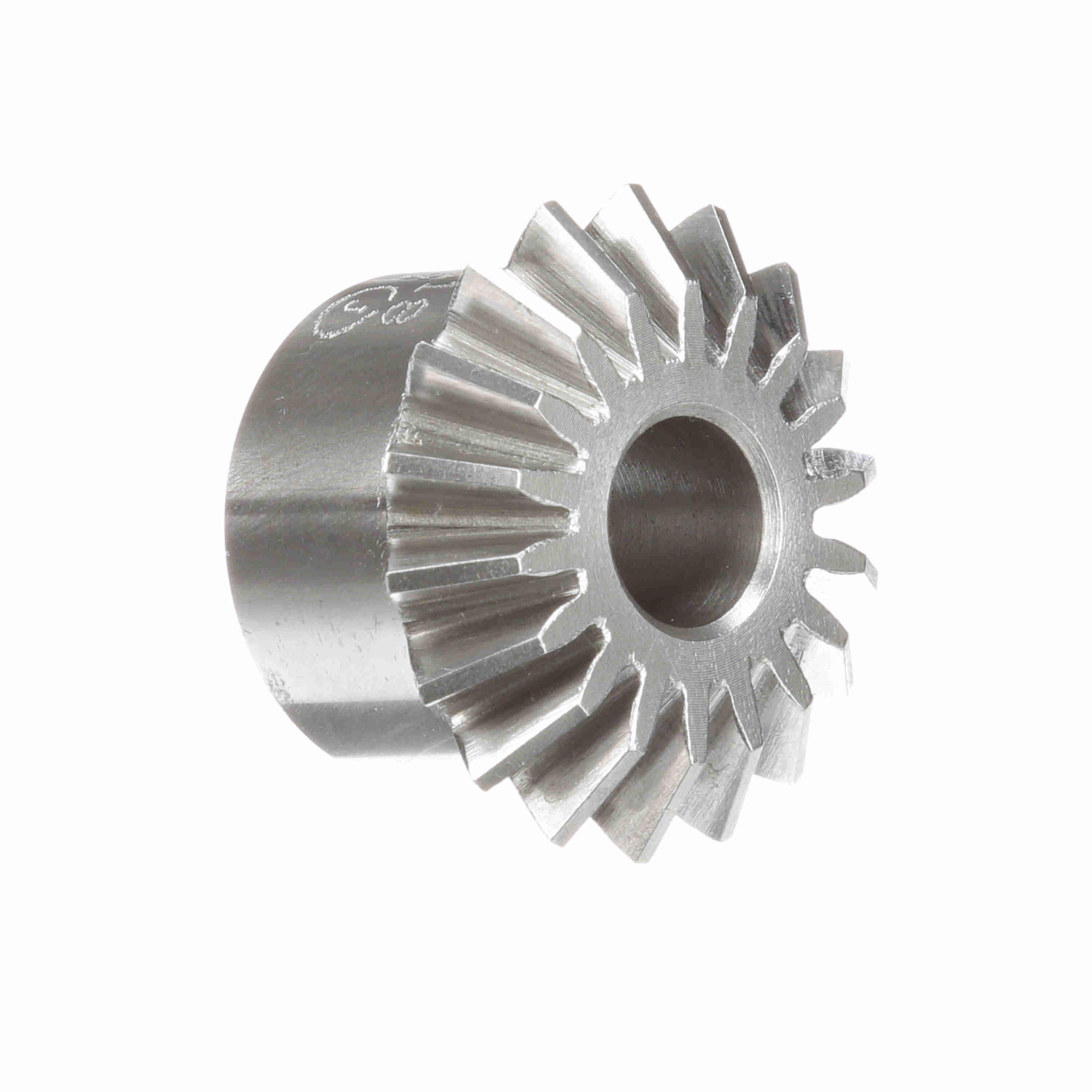

Browning® 1229129 Minimum Plain Bore Straight Tooth Miter Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 15 Teeth, 1-1/4 in Dia Pitch, 0.27 in W Face, 3/8 to 1/2 in Dia Bore, Unhardened Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289156719
-
Manufacturer Part Number1229129
-
CountryUSA
-
Face Width0.27 in
-
Pitch Diameter1-1/4 in
-
MaterialUnhardened Steel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Straight Tooth
-
Hub Diameter1 in
-
Hub Projection1/2 in
-
Diametral Pitch12
-
Number of Teeth15
-
Bore Diameter3/8 to 1/2 in
-
Overall Length55/64 in
- Browning Gears are rated in accordance with AGMA standards
-
Alternative Part NumberYSM12B15
-
UNSPSC31171700
-
Package Description1/PK
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
