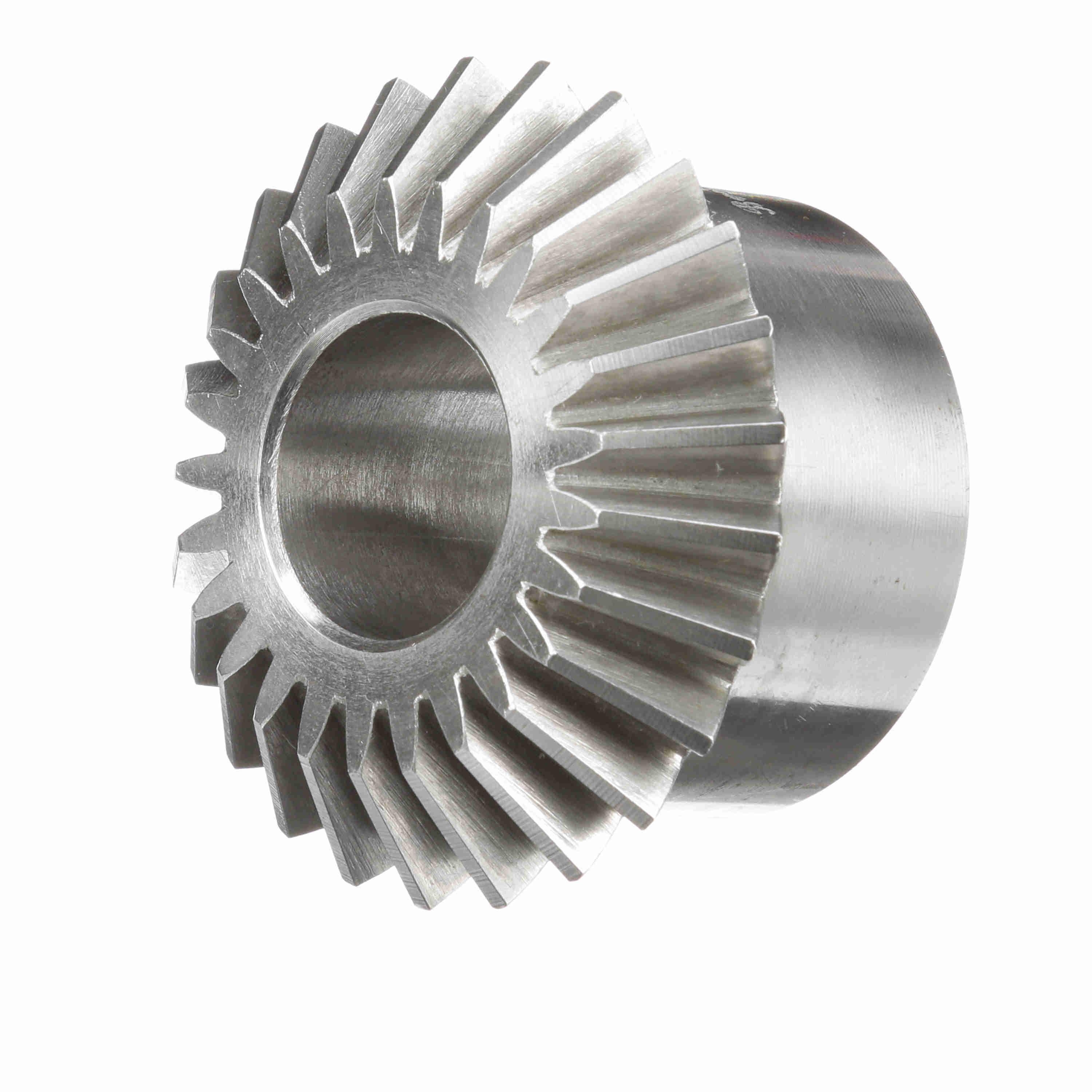

Browning® 1229285 Minimum Plain Bore Straight Tooth Miter Gear, 10 Diametral Pitch, 20 deg Pressure Angle, 25 Teeth, 2-1/2 in Dia Pitch, 0.55 in W Face, 1 to 1-1/4 in Dia Bore, Unhardened Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289296880
-
Manufacturer Part Number1229285
-
CountryUSA
-
Face Width0.55 in
-
Pitch Diameter2-1/2 in
-
MaterialUnhardened Steel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeMinimum Plain Bore Straight Tooth
-
Hub Diameter2 in
-
Hub Projection1-5/8 in
-
Diametral Pitch10
-
Number of Teeth25
-
Keyway Size1/4 x 1/8 in
-
Bore Diameter1 to 1-1/4 in
-
Overall Length1-5/8 in
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
-
Alternative Part NumberYSM10B25X1
-
UNSPSC31171700
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
