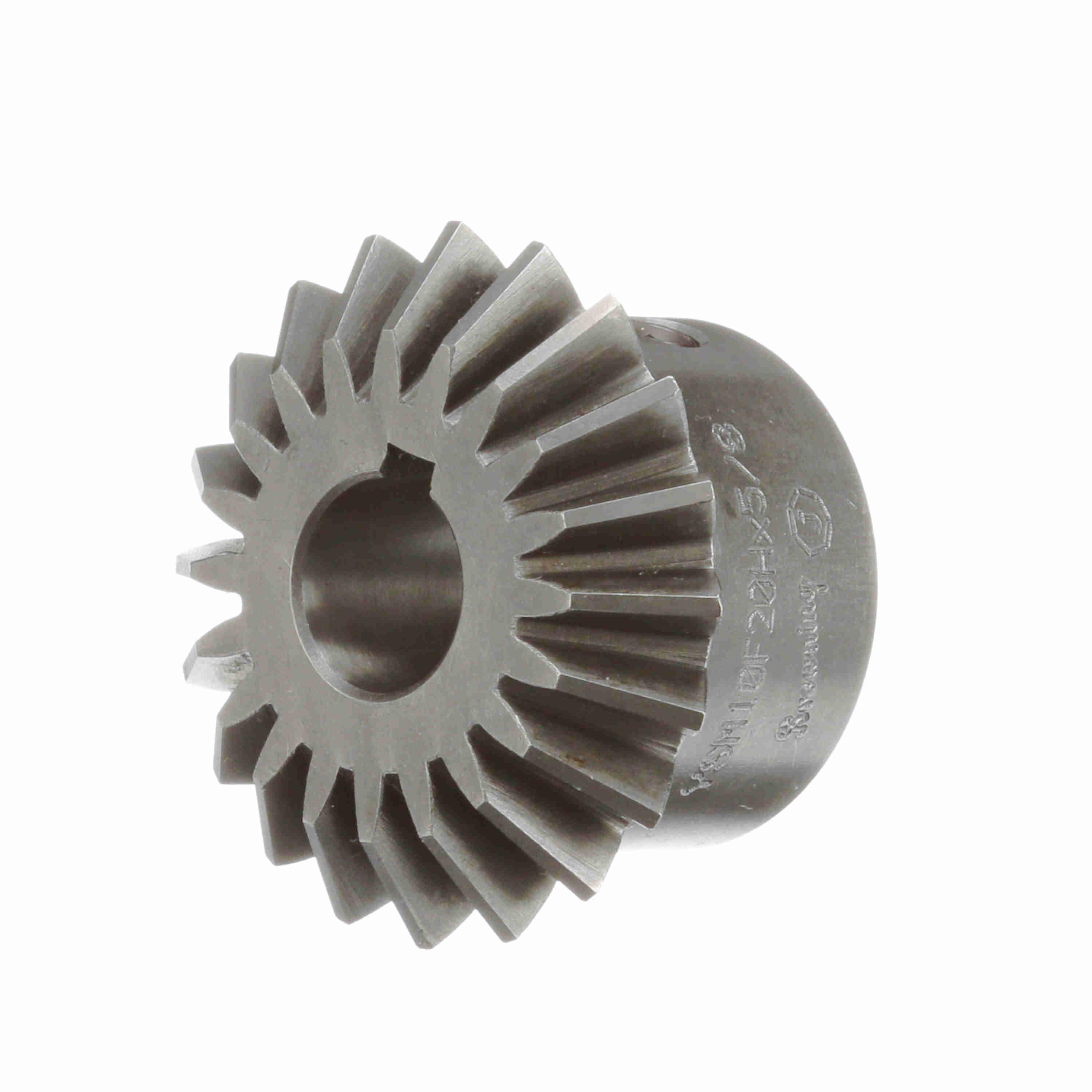

Browning® 1228824 Finished Bore Straight Tooth Miter Gear With Setscrew, 10 Diametral Pitch, 20 deg Pressure Angle, 20 Teeth, 2 in Dia Pitch, 0.44 in W Face, 5/8 in Dia Bore, Hardened Steel
Browning® offers a comprehensive line of off the shelf gears, including spur, miter and bevel as well as change gears. These are available in 20 deg pressure angle from 20 to 4 diametral pitch and 14.5 deg pressure angle from 48 to 3 diametral pitch. They are all designed to increase output, reduce costs and avoid the need for custom specials.
-
BrandBrowning®
-
UPC662289256419
-
Manufacturer Part Number1228824
-
CountryUSA
-
Face Width0.44 in
-
Pitch Diameter2 in
-
MaterialHardened Steel
-
Pressure Angle20 deg
-
Gear Ratio1:1
-
TypeFinished Bore Straight Tooth
-
Hub Diameter1-5/8 in
-
Hub Projection13/16 in
-
Diametral Pitch10
-
Number of Teeth20
-
Keyway Size3/16 x 3/32 in
-
Bore Diameter5/8 in
-
Overall Length1-23/64 in
- Browning Gears are rated in accordance with AGMA standards
- Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
-
Alternative Part NumberYSM10F20HX5/8
-
UNSPSC31171700
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
