Browning 48-TOOTH 12-PITCH BEVEL GEARS BRW YS-B-12-C-48-20

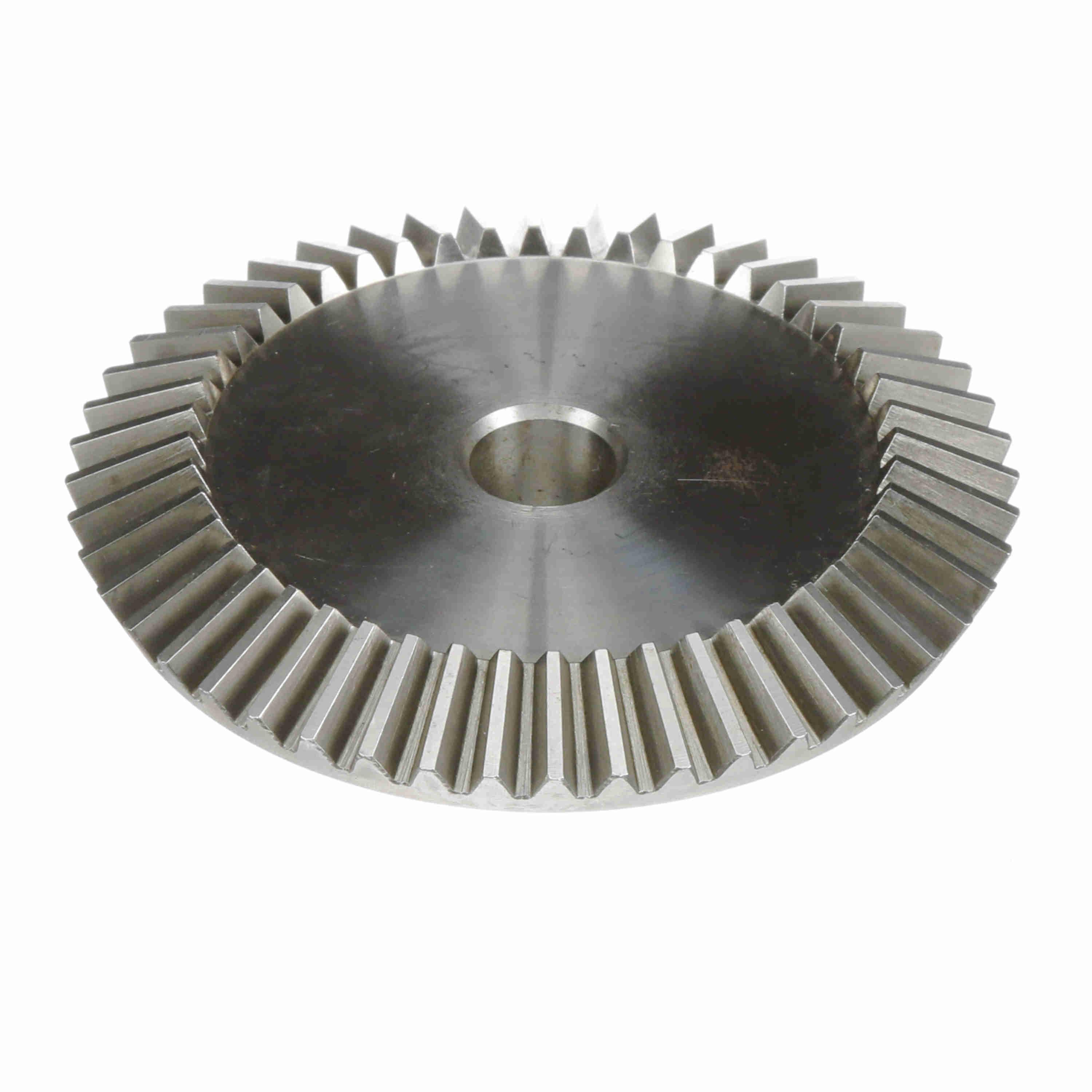

Browning® 1228089 MPB Straight Tooth Bevel Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 48 Teeth, 4 in Dia Pitch, 0.59 in W Face, 5/8 to 7/8 in Dia Bore, Steel
-
BrandBrowning®
-
UPC662289304769
-
Manufacturer Part Number1228089
-
CountryUSA
-
Face Width0.59 in
-
Pitch Diameter4 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio2:1
-
TypeMPB Straight Tooth
-
Hub Diameter1-5/8 in
-
Hub Projection3/4 in
-
Diametral Pitch12
-
Number of Teeth48
-
Bore Diameter5/8 to 7/8 in
-
Overall Length1-11/64 in
- Miter Gears must be run in sets of two or more gears with the same pitch, Pressure angle and number of teeth
- Spiral Bevel and Miter Gears have continuous pitch line contact and are smoother and quieter than straight tooth gears
- Spiral Bevel and Miter gears must be run in sets of mating gears with opposite hand spiral
- Bevel and Miter Gears Develop Axial Thrust, Adequate Bearing support Must be Provided
-
Alternative Part NumberYSB12B48-20
-
UNSPSC31171708
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
Warranty Information
-
Catalog
