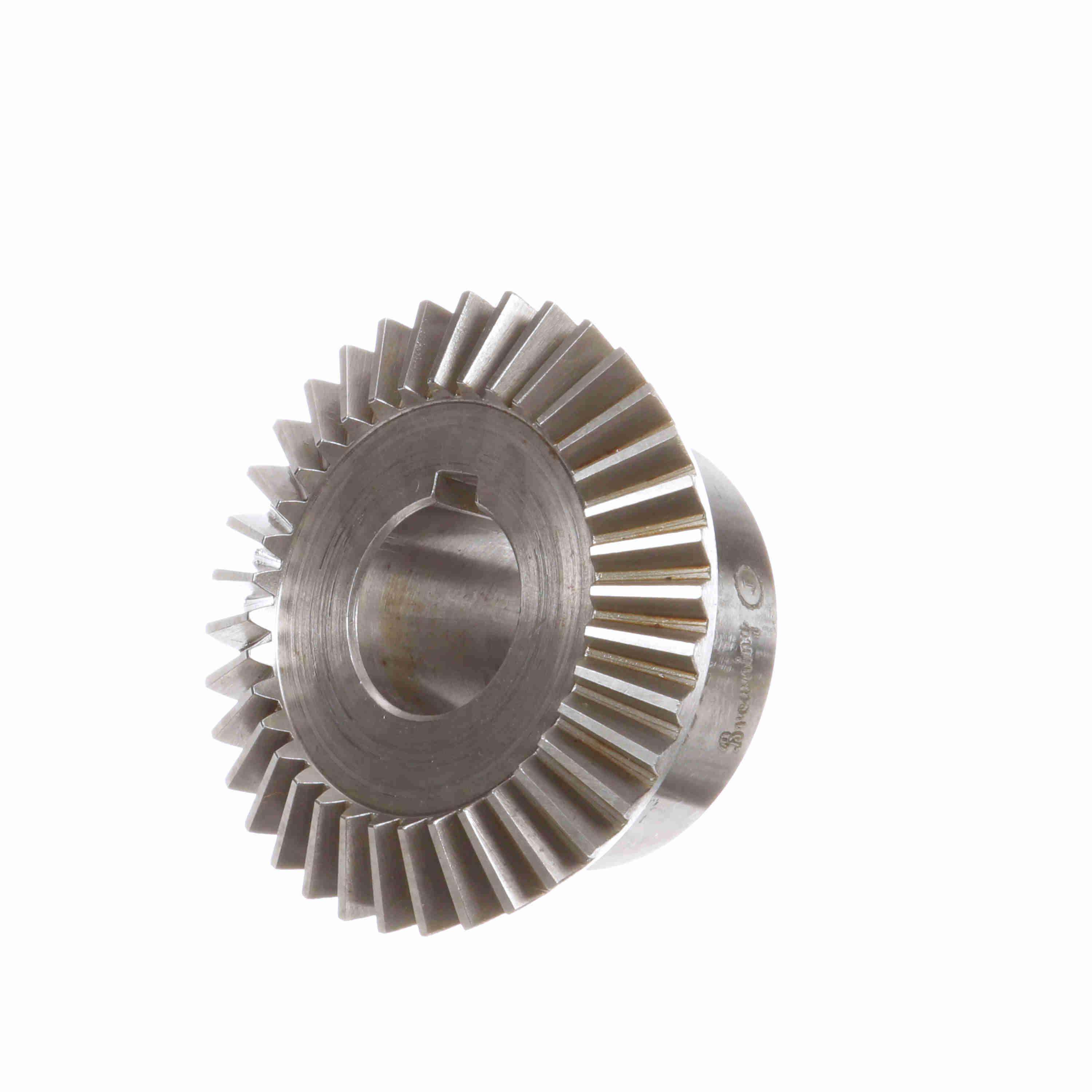

Browning® 1228600 Finished Bore Straight Tooth Bevel Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 36 Teeth, 3 in Dia Pitch, 0.53 in W Face, 1 in Dia Bore, Steel
Browning® 1228600 Finished Bore Straight Tooth Bevel Gear, 12 Diametral Pitch, 20 deg Pressure Angle, 36 Teeth, 3 in Dia Pitch, 0.53 in W Face, 1 in Dia Bore, Steel
-
BrandBrowning®
-
UPC662289165315
-
Manufacturer Part Number1228600
-
CountryUSA
-
Face Width0.53 in
-
Pitch Diameter3 in
-
MaterialSteel
-
Pressure Angle20 deg
-
Gear Ratio2:1
-
TypeFinished Bore Straight Tooth
-
Hub Diameter2-1/8 in
-
Hub Projection7/8 in
-
Diametral Pitch12
-
Number of Teeth36
-
Bore Diameter1 in
-
Overall Length1-17/64 in
- Browning Gears are rated in accordance with AGMA standards
- Mating Spur Gears must have same pressure angle and pitch
- Modification Options Available - 1. Cut to Desired Length, 2. Milled and Matched Ends, 3. Drilled or Drilled and Tapped Holes for Mounting
-
Alternative Part NumberYSB12F36-20X1
-
UNSPSC31171708
-
Package DescriptionEACH
-
Standards/ApprovalsAGMA Standard
-
Warranty1 Year
-
