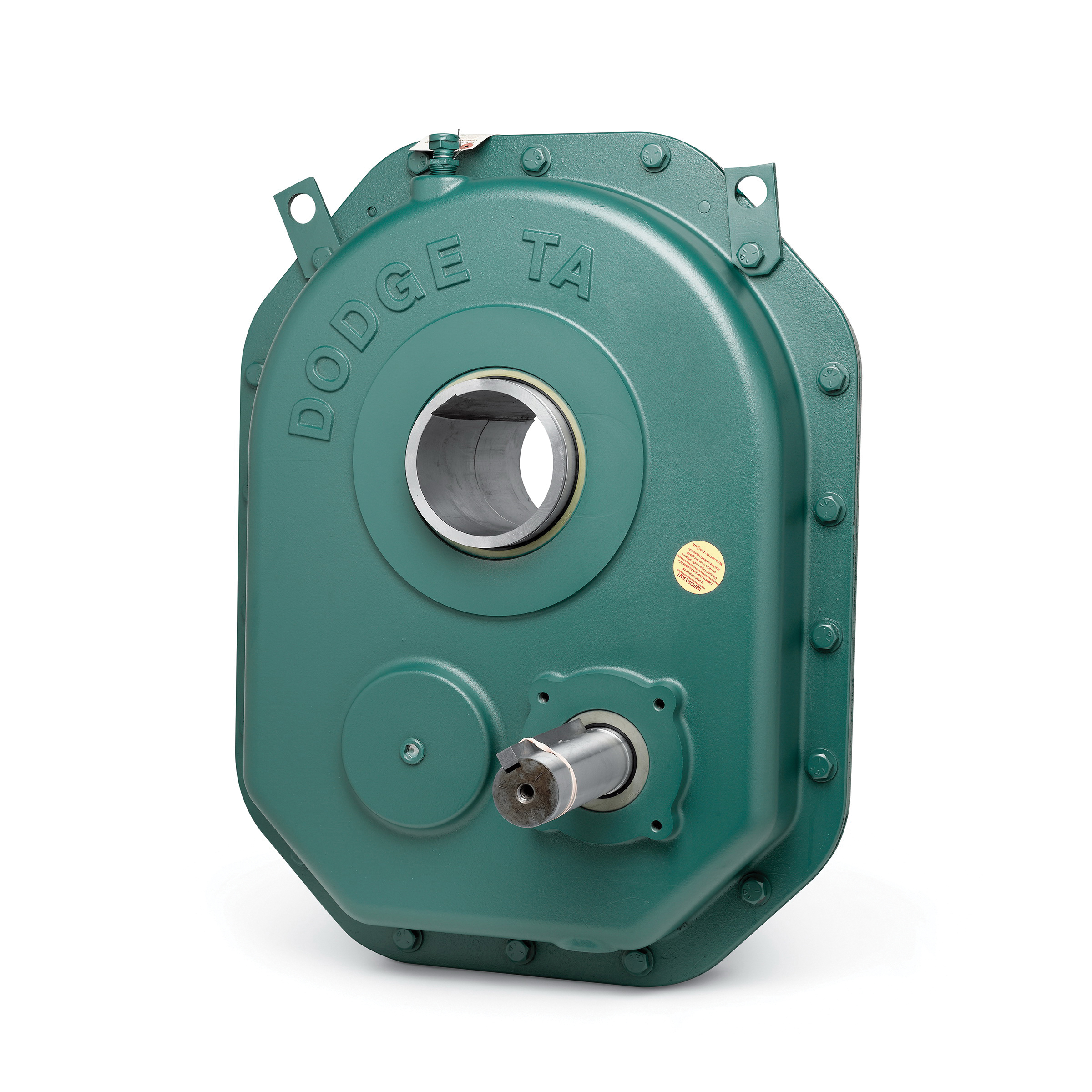

TXT515CT Dodge® Torque-Arm™ II 909001 Heavy Duty Double Reduction Speed Reducer, Solid Shaft Input, Tapered Hollow Bore Output, 100 hp, 25:1 Gear
With 60 years of proven dependability and more than 1.8 million units in service throughout the world, Dodge® Torque-Arm™ speed reducers are the standard of the industry and the benchmark to which others are compared. The Torque-Arm™ II is a shaft mount helical gear reducer that mounts directly to the driven shaft with a number of accessories available to produce versatility, cost savings and long life. A long list of standard features makes this reducer suitable for a wide range of environments right off the shelf.
-
BrandDodge®
-
UPC782475641130
-
Manufacturer Part Number909001
-
CountryUSA
-
Lubrication TypeOil
-
FinishGray
-
MaterialCast Iron
-
Gear Ratio25:1
-
TypeHeavy Duty Double Reduction
-
Mounting TypeShaft
-
Horsepower100 hp
-
Input Maximum Speed2035 rpm
-
Input Size2.4375 in Dia x 8.49 in L
-
Input TypeSolid Shaft
-
Dimensions26.49 in L x 13.75 in W x 34.15 in H
-
Output Size4-15/16 in
-
Output TypeTapered Hollow Bore
- Unparalleled torque ratings
- Industry leading backstop design
- Patented sealing system
- Modular steel motor mount system
- Patented twin tapered bushing system
- Advanced sealing system
- 2035 rpm input/80 rpm output
- Case size: 9
- Size: TA9415H
-
Alternative Part NumberTA9415H25
-
UNSPSC26111536
-
Package DescriptionEACH
-
Standards/ApprovalsABMA|AGMA|ATEX|BSA|CEMA|EASA|MHI|MPTA|NEMA|NSSSGA|PTDA|RoHS Compliant|SME|SWE|TUV Certified
-
WarrantyLimited
-
