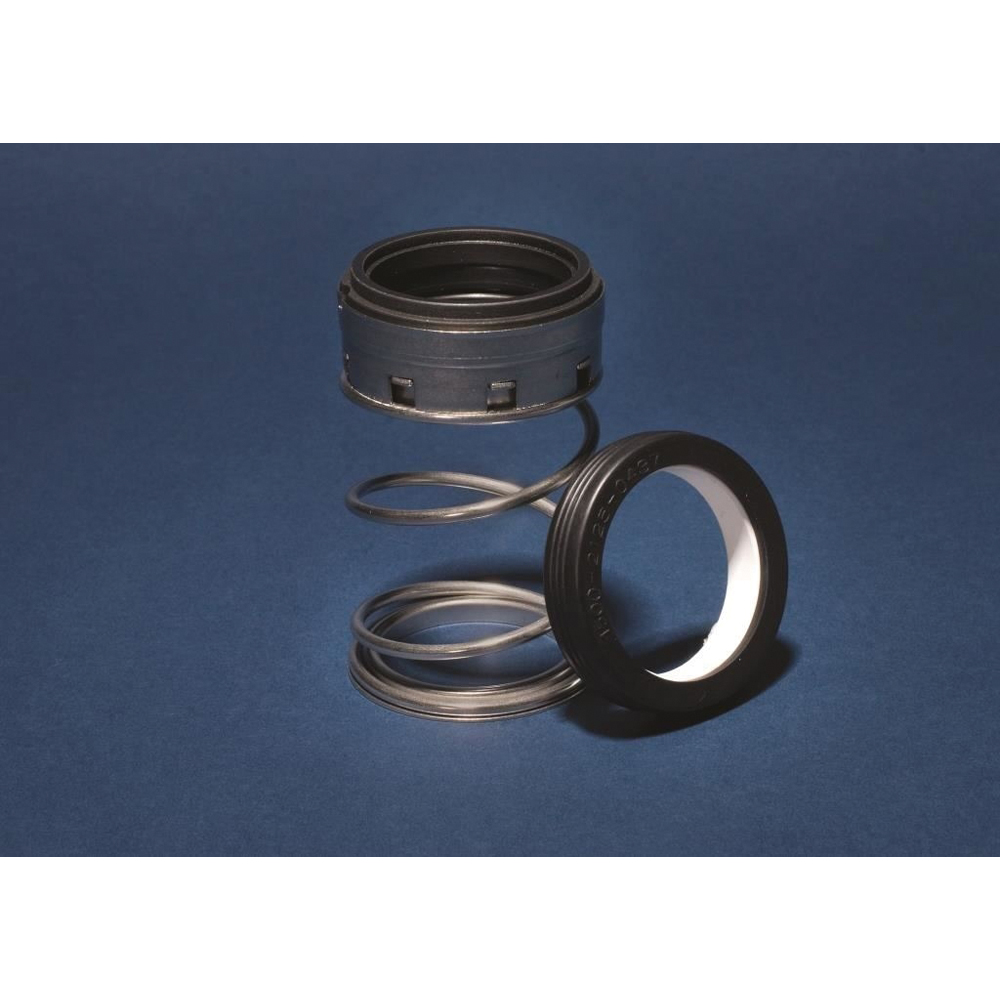

U.S. SEALS PS--205 Type 1 Standard Mechanical Seal Assembly With Cup, 1-3/4 in ID, 304/316 Stainless Steel Spring, 2-3/8 in OD Seal Head, 2-1/2 in OD x 1/2 in THK, Buna-N Elastomers, Carbon Primary Ring, Stainless Steel Metal Parts, Ceramic Mating Ring
Metric Specification Shaft Size / Inside Diameter1.750" (1-3/4 inches) Rotary Head Style US Seal Type E (Equal to John Crane Type 1) Seal Head Dimensions2.375" Outside Diameter (OD) x 2.000" Operating Height Stationary Seat Style Cup Mounted Seat (US Seal Type 1) Stationary Seat Dimensions2.500" Bore / Seat OD x 0.500" Thickness Standard Seal Faces Carbon (Primary Ring) vs. Ceramic (Mating Ring)Standard ElastomersBuna-N RubberHardware ComponentsStainless Steel Metal Parts & Single Coil Spring
-
BrandBerlissâ„¢
-
Manufacturer Part NumberBSP-205
-
CountryUSA
-
Temperature Rating200 deg F
-
Pressure Rating230 psi
-
TypeType 1 Standard
-
Inside Diameter1-3/4 in
- Unbalanced, bi-directional
-
UNSPSC40151700
-
Package Description1/PK
-
Standards/ApprovalsBSA|ICWM|MHIA|NCA
-
