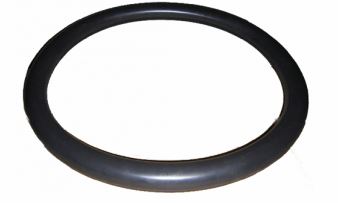

Dichtomatik 75102145 O-Ring, 223 Dash Number, 1.609 in ID x 1.887 in OD, FKM, 75 Shore A Durometer, Import, Customer 223-VITON
O-rings are closed circular rings of circular cross-section. They are made through vulcanization from form tools as a complete ring. The sealing function of the O-ring is achieved by the deformation of the cross-section when installed and compressed in its housing. The O-ring can be compressed either radially or axially in its installation housing. In operating conditions the pressure exerted by the media reinforces the sealing function, as under pressure the elastomer material functions as a non-compressible fluid.
-
BrandDichtomatik
-
Manufacturer Part Number75102145
-
CountryUSA
-
Temperature Rating40 to 120 deg F
-
MaterialFKM
-
ColorBlack
-
Inside Diameter1.609 in
-
Domestic/ImportImport
-
Durometer75 Shore A
-
Outside Diameter1.887 in
- Good chemical resistance to mineral oils and greases, synthetic oils and greases, motor, transmission and ATF oils up to 150 deg C
- Very good weathering, ozone and aging resistance
- Very low gas permeability
-
UNSPSC31401503
-
Standards/ApprovalsASTM D1418|AS 568B|BS 1806|JIS 2401
-
Alternative Part NumberV75223
-
Instruction/Installation Manual
-
Specification Sheet
-
Catalog
