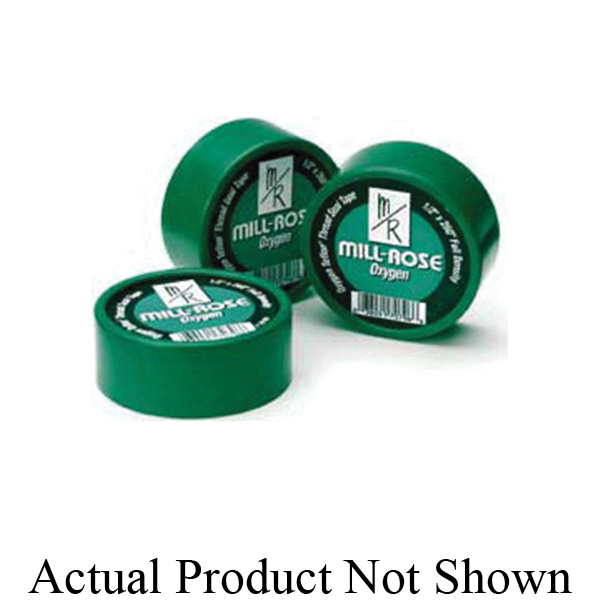

Cleanfit 70850 Full-Density Oxygen Thread Sealing Tape, 260 in L x 1/2 in W x 0.0045 in THK, 2173.9 psi, PTFE, Domestic
Mill-Rose Full-Density Green Thread Seal Tape is over five times heavier than common sealing tapes so you can use it and never worry about contaminating systems. Because it is degreased; it has no residual lubricant, unlike common tapes made with petroleum as a lubricant. Specifically developed for oxygen installations, Green thread seal tape is both safe and reliable to use; it is chemically inert and won't support combustion.
-
BrandCleanfit
-
Manufacturer Part Number70850
-
CountryUSA
-
Temperature Rating-450 to 500 deg F
-
Thickness0.0045 in
-
MaterialPTFE
-
Pressure Rating2173.9 psi
-
ColorGreen
-
TypeFull-Density Oxygen
-
Width1/2 in
-
Domestic/ImportDomestic
-
Length260 in
- 99.6% PTFE less than 0.4%
- Greater than100% elongation
- Mill-Rose green oxygen tape has been used regularly on oxygen fittings at pressures up to 2173.9 psi or 15000kPa
- -450 to 500 deg F (-268 to 260 deg C) PTFE is completely stable up to 500 deg F or 260 deg C
- Decomposition is slow up to 750 deg F or 400 deg C
- Although decomposition will occur on contact with naked flames
- 9 to 13 N/mm-sq tensile strength
- Applications: oxygen lines, systems and other flammable environments and also may be used on most liquid, oil and chemical installations
- Oxygen sealant tape is a degreased version of gas seal tape
-
UNSPSC31201514
-
Package Description10/PK
-
Standards/ApprovalsMeets or exceeds A-A58092 standards (ASG) and has the approval of most gas companies: AIRCO (USA)|British Oxygen Co. (UK)|CANOX (Canada)|and Commonwealth Industrial Gases (Australia)
-
Catalog
-
Specification Sheet
