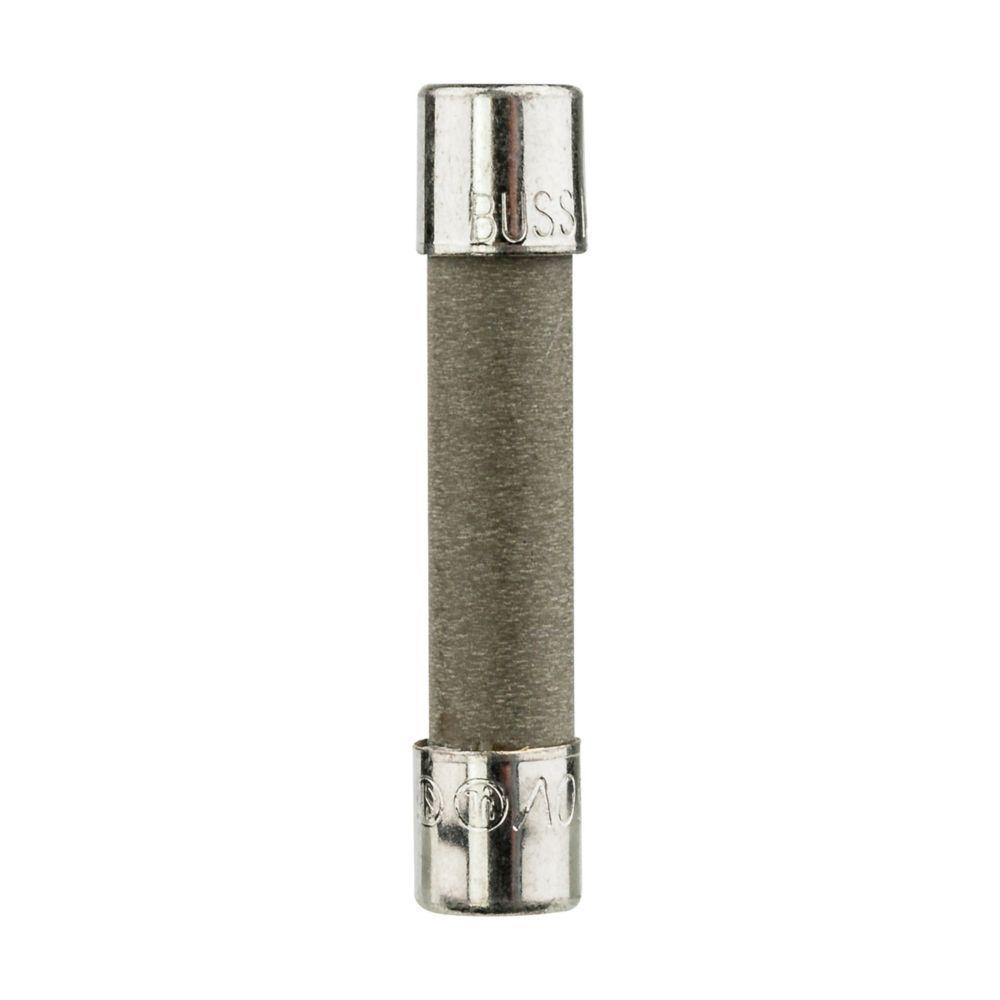

Edison MDA-7 Small Dimension Time Delay Fuse With Nickel Plated Brass End Caps, 7 A, 250 VAC, 200 A/10 kA Interrupt, Cylindrical Body
Edison MDA-7 Small Dimension Time Delay Fuse With Nickel Plated Brass End Caps, 7 A, 250 VAC, 200 A/10 kA Interrupt, Cylindrical Body
-
BrandEdison
-
UPC051712723046
-
Manufacturer Part NumberMDA-7
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
Response Time60 min, 120 s
-
TypeSmall Dimension
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating7 A
-
SeriesMDA
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 A/10 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCylindrical
- Ceramic body for higher amp/volt ratings
- Inventory consolidation by replacing MDL fuses allows for reduced SKU investment and minimizing potential for misapplying fuse
- 200 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- 60 min at 135%, 120 sec at 200% response time
-
Alternative Part Number8409560
-
UNSPSC39121609
-
IDEA Index ID8409560
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|Standard 248-14|UL Listed|Guide JDYX UL File No. E19180|CSA Class 1422-01|CSA File No. 53787
-
