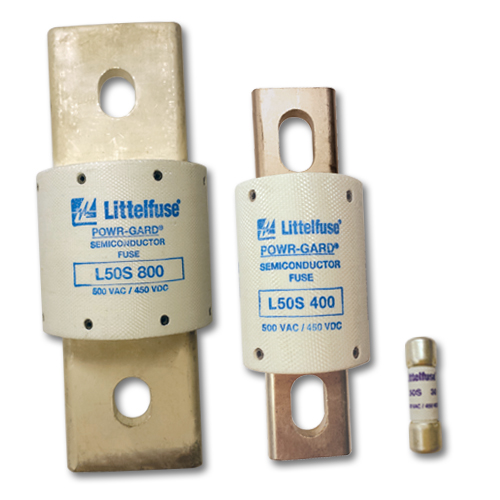

Littelfuse® POWR-GARD® L50S150 Very Fast Acting High Speed Semiconductor Fuse, 150 A, 500 V AC/450 V DC, 200/20 kA Interrupt, Traditional/Round Body
Littelfuse® L50S series high speed fuses are designed to protect today's equipment and systems and are manufactured with Littelfuse® developed technology that sets tomorrows standards for accuracy, consistent quality, reliability and predictable performance. Littelfuse® engineers have redefined high speed fuse technology by using advanced metallurgical, polymer and materials research, mathematical modeling and computerized statistical analysis.
-
BrandLittelfuse®
-
UPC079458851502
-
Manufacturer Part NumberL50S150
-
CountryUSA|Canada
-
Terminal TypeBlade
-
MaterialFiberglass
-
TypeVery Fast Acting High Speed
-
Mounting TypeBolt
-
Voltage Rating500 V AC/450 V DC
-
Amperage Rating150 A
-
SeriesL50S
-
Indicating/Non-IndicatingIndicating
-
Interrupt Rating200/20 kA
-
Body Size1-7/32 in Dia x 3-5/8 in L
-
Body TypeTraditional/Round
- Extremely current-limiting
- Low watts loss
- Controlled transient over voltages
-
Alternative Part NumberL50S150.V|8593711
-
UNSPSC39121628
-
IDEA Index ID8593711
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E71611|CSA File No. LR29862|CE Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
