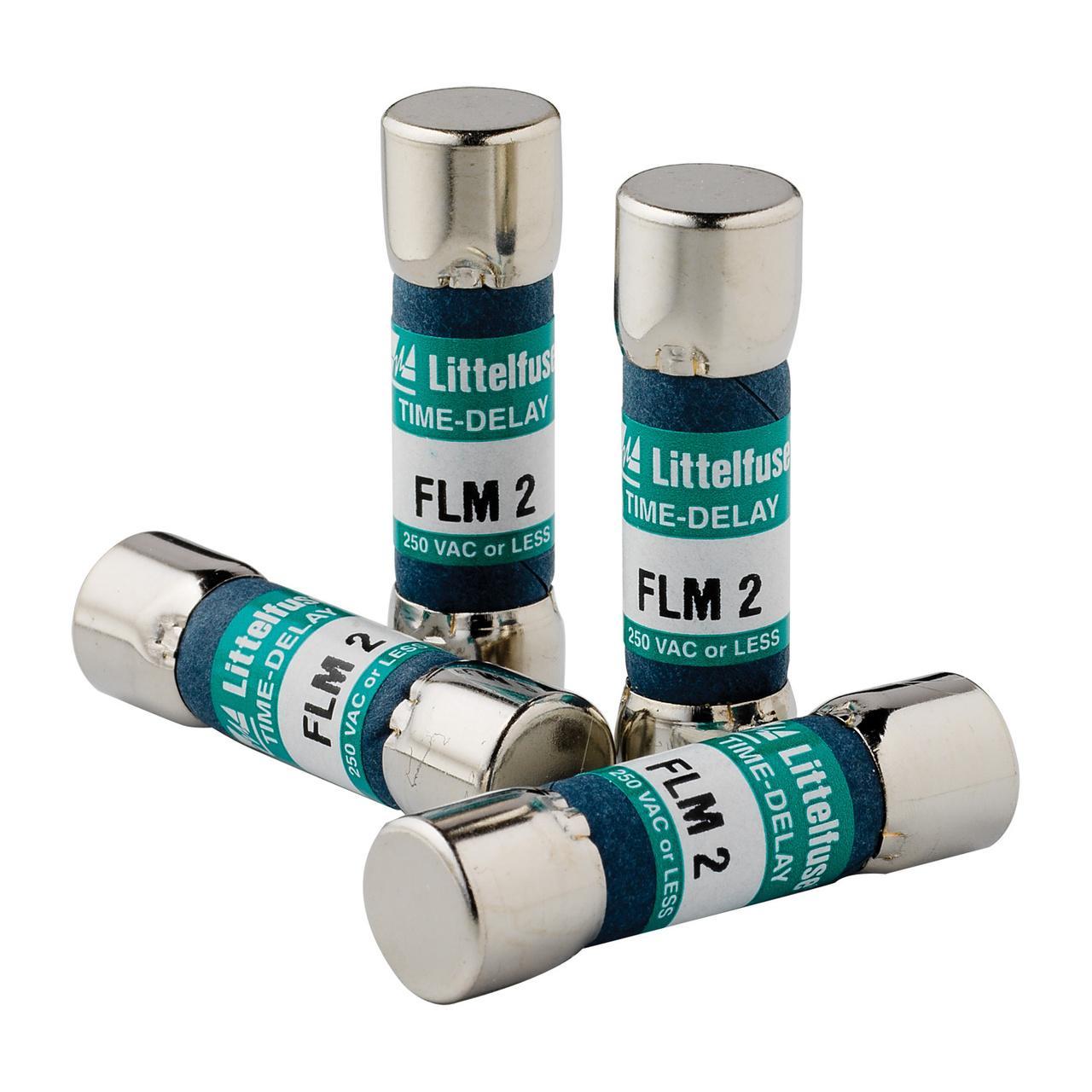

Littelfuse 25-AMP 250-VOLT AC TIME DELAY FUSE LIT FLM-25
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458140729
-
Manufacturer Part NumberFLM025
-
CountryUSA|Canada
-
Terminal TypeFerrule
-
Response Time12 s
-
TypeTime Delay
-
Mounting TypeClip
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating25 A
-
SeriesFLM
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating10 kA
-
Body Size13/32 in Dia x 1-1/2 in L
-
Body TypeCylindrical
- 5AG size fuse
- 5 sec minimum delay for fuses rated at 3 A or less and 12 sec for fuses rated more than 3 A at 200% fuse rating
- 250 V time-delay fuses used to protect circuits with high in-rush
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 486J07 |
-
Alternative Part Number0FLM025.T|8574533
-
UNSPSC39121609
-
IDEA Index ID8574533
-
Package Description10/BX
-
Standards/ApprovalsRoHS Compliant|UL File No. E10480|CSA 029862_0_000|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
