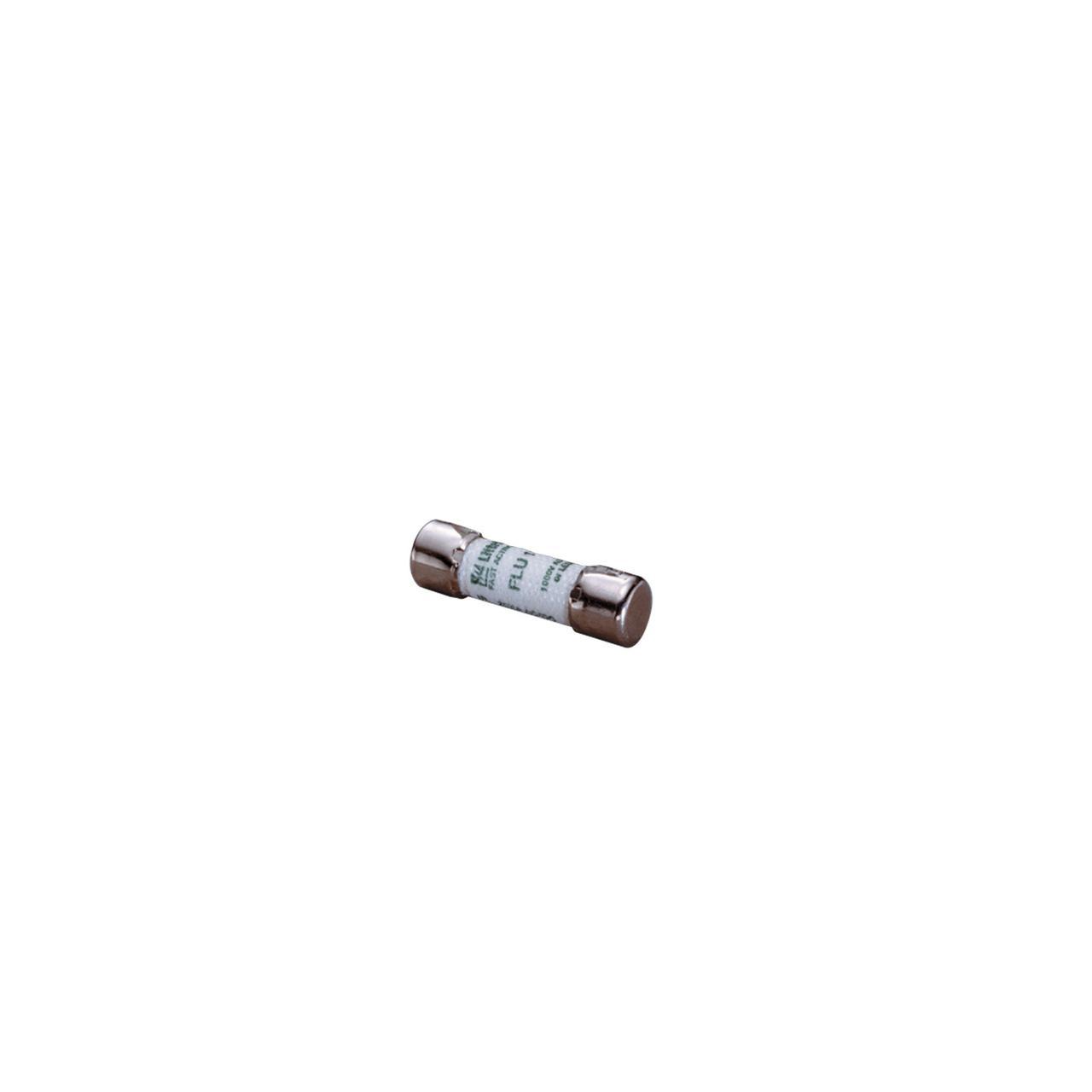

Littelfuse® POWR-GARD® FLU011 Fast Acting Supplemental Midget Fuse, 11 A, 1000 V AC/DC, 20 kA, Cylindrical Body
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458054613
-
Manufacturer Part NumberFLU011
-
CountryUSA
-
Terminal TypeFerrule
-
Response Time12 s
-
TypeFast Acting
-
Mounting TypeClip
-
Voltage Rating1000 V AC/DC
-
Amperage Rating11 A
-
SeriesFLU
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating20 kA
-
Body Size13/32 in Dia x 1-1/2 in L
-
Body TypeCylindrical
- 5AG size fuse
- 5 sec minimum delay for fuses rated at 3 A or less and 12 sec for fuses rated more than 3 A at 200% fuse rating
-
Alternative Part Number0FLU011.T|8568994
-
UNSPSC39121606
-
IDEA Index ID8568994
-
Package Description10/BX
-
Standards/ApprovalsUL File No. E10480|CSA LR29862|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
