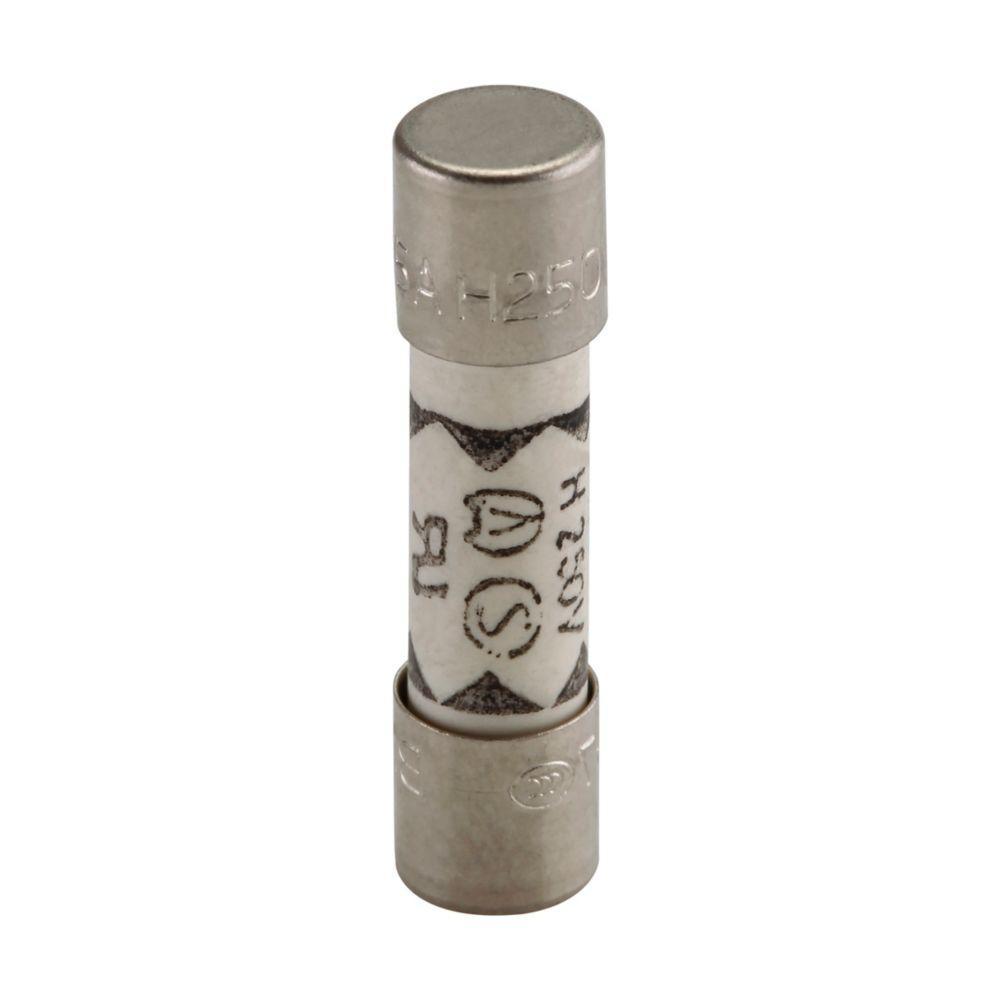

Bussmann GDA-6.3A Small Dimension Fast Acting Fuse, 6.3 A, 250 V AC/32 V DC, 1500 A Interrupt, Cylindrical Body
Fast-acting, high breaking capacity 5 mm x 20 mm ferrule fuse designed to IEC 60127-2 for overcurrent protection of electronic circuits. Install into a Bussmann Series fuse holder, block or fuse clip. Also available axial leads for thru-hole installation. Eaton’s GSA fast-acting, high breaking capacity 5mm x 20mm ferrule fuses are designed to IEC 60127-2 for overcurrent protection of electronic circuits. Order in cartridge fuse format and install into a Bussmann Series fuse holder, block, or fuse clip, or purchase with available axial leads for thru-hole installation.
-
BrandBussmann
-
UPC051712431378
-
Manufacturer Part NumberGDA-6.3A
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
Frequency Rating50 Hz
-
Rejection/Non-RejectionNon-Rejection
-
Response Time60 min, 30 min, 10 ms, 3 s, 3 ms, 300 ms, 20 ms
-
TypeSmall Dimension
-
Mounting TypeClip/Holder
-
Voltage Rating250 V AC/32 V DC
-
Amperage Rating6.3 A
-
SeriesGDA
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating1500 A
-
Body Size5.2 mm Dia x 20 mm H
-
Body TypeCylindrical
-
ElementSingle
- Fast acting for maximum protection
- High break capacity for use in higher fault energy electronic circuitry
- Nickel plated brass end caps
- 60 min minimum at 1.5 In, 30 min maximum at 2.1 In, 10 ms minimum and 3 s maximum at 2.75 In, 3 ms minimum and 300 ms maximum at 4 In, 20 ms maximum at 10 In response time
- 1500 A at 250 VAC interrupt rating
-
Alternative Part Number7614411
-
UNSPSC39121611
-
IDEA Index ID7614411
-
Package DescriptionEACH
-
Standards/ApprovalsVDE,CE Marked,CCC Marked
-
Catalog
-
Specification Sheet
