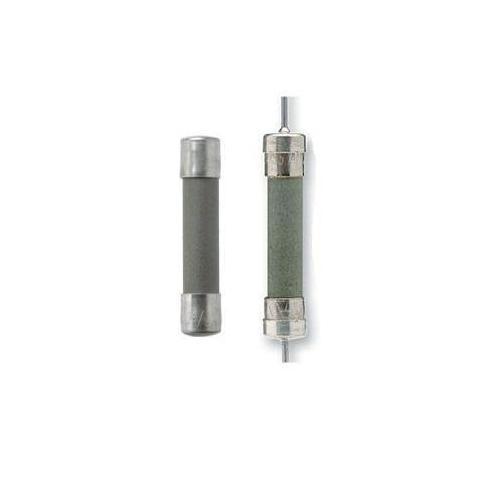

Bussmann ABC-25 Electronic Small Dimension Fast Acting Fuse, 25 A, 250 VAC, 125 VDC, 200 A, 400 A, 1 kA Interrupt, Cylindrical Body
World leading supplier of fuses and fusible protection systems, Bussmann continues its 88-year history of blazing new trails of innovative technologies. Maker of the industry first truly global product line, each item is backed by an efficient worldwide network of distribution, customer service and technical support. Bussmann products include the most extensive circuit protection solutions approved for use in a variety of major standards: UL, CSA, IEC. Not to mention both European (DIN, British Standard) and North American styled fuses for a wide range of applications: industrial motor protection, power conversion, medium voltage, power distribution, telecommunications network equipment, electronics, and automotive.
-
BrandBussmann
-
UPC051712700177
-
Manufacturer Part NumberABC-25
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
Response Time4 hr, 60 min, 120 s
-
TypeElectronic Small Dimension
-
Mounting TypeHolder
-
Voltage Rating250 V AC/125 V DC
-
Amperage Rating25 A
-
SeriesABC
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 A, 400 A, 1 kA
-
Body Size1/4 in Dia x 1-1/4 in L
-
Body TypeCylindrical
-
ElementSingle
- Ceramic tube, nickel plated brass endcap construction
- Optional leaded version available
- Size 3AB
- 4 hr minimum at 160 min maximum at 1.35 120 s maximum at 200% response time
- 200 A at 250 VAC, 1 kA at 125 VAC/400 A at 125 VDC, 1000 A at 75 VDC
- 4 hr minimum at 100%, 60 min maximum at 135%, 120 s maximum at 200%
-
Alternative Part Number7636068
-
UNSPSC39121611
-
IDEA Index ID7636068
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-14|CSA Certified|CE Certified|CSA Certified
-
Catalog
-
Specification Sheet
