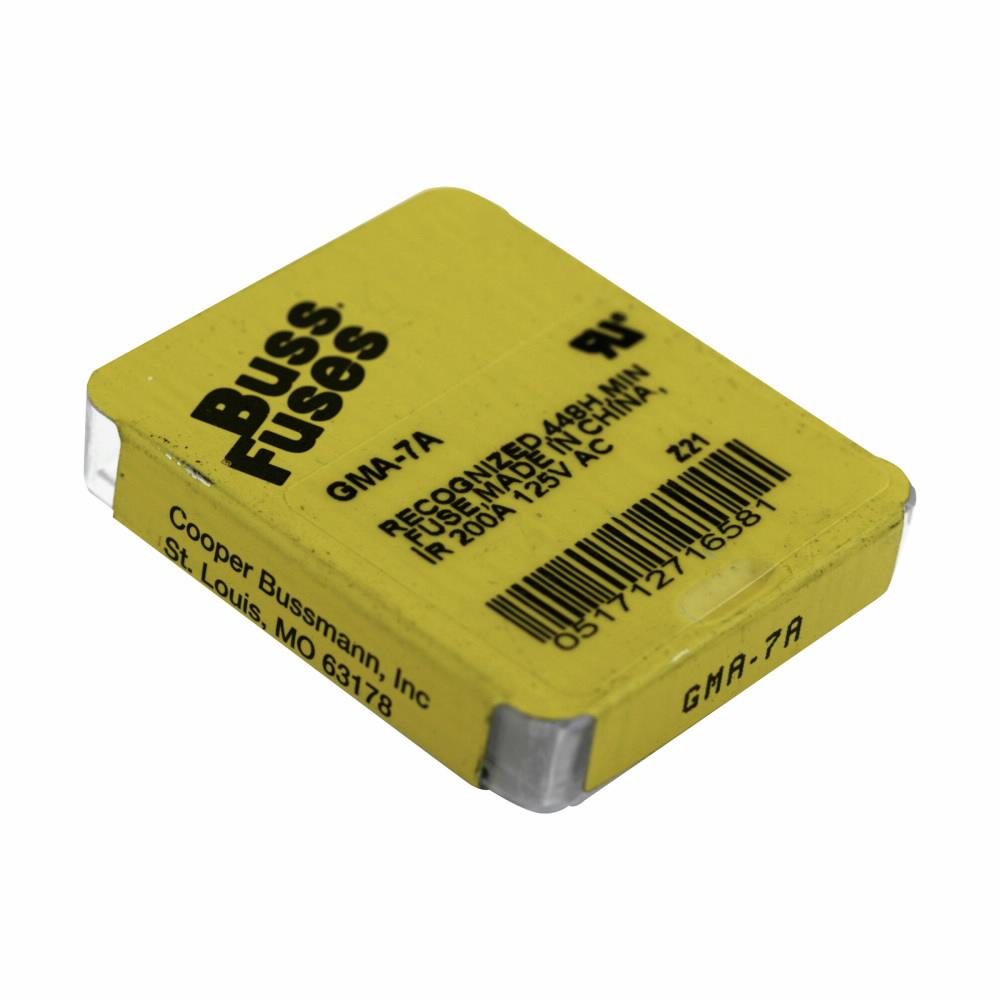

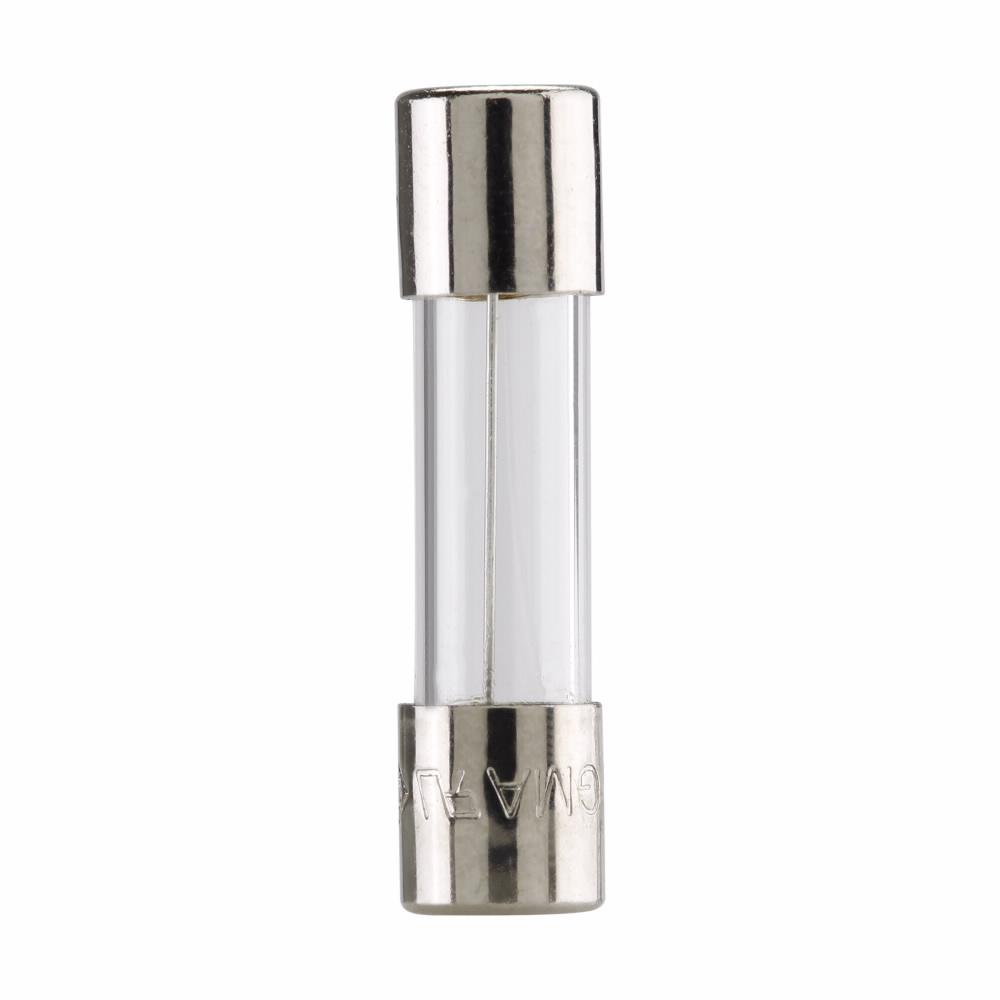

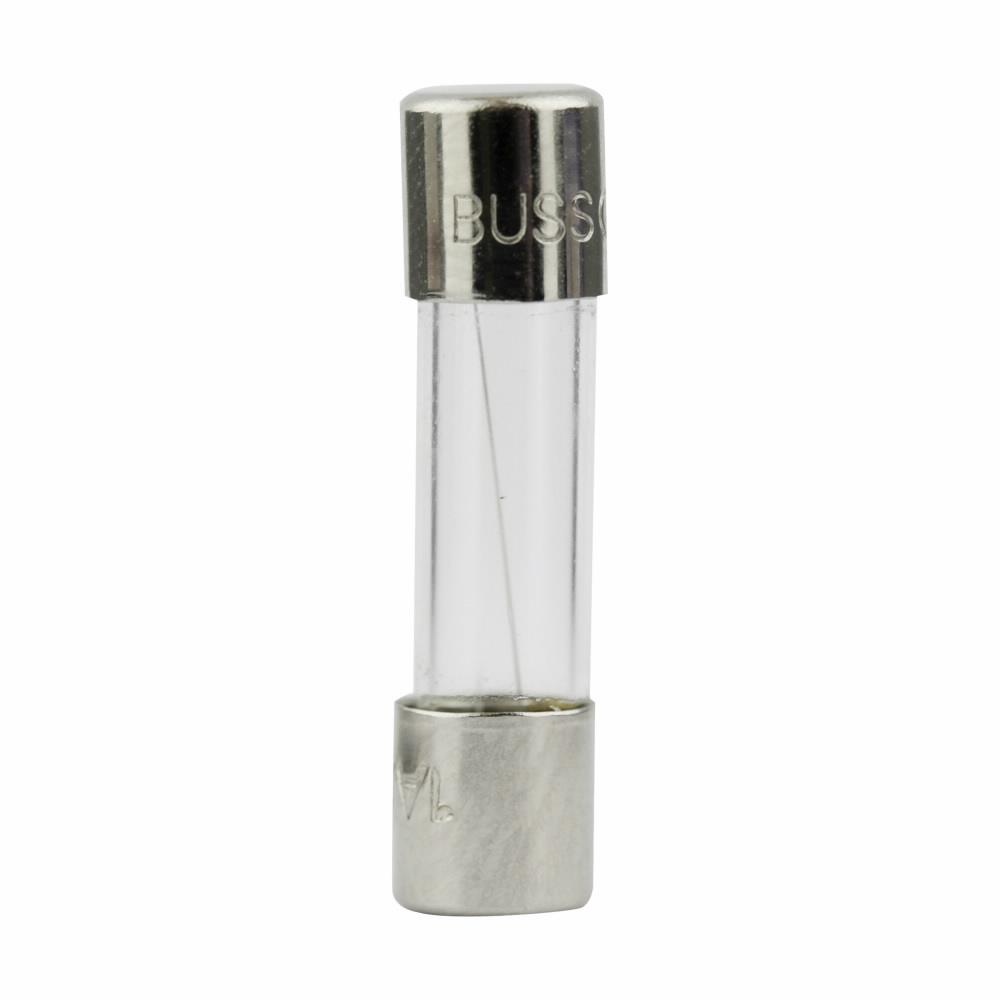

Bussmann GMA-7A Fast Acting Small Dimension Fuse, 7 A, 125 V AC/32 V DC, 200 kA Interrupt, Cylindrical Body
Bussmann GMA-7A Fast Acting Small Dimension Fuse, 7 A, 125 VAC/32 VDC, 200 kA Interrupt, Cylindrical Body
-
BrandBussmann
-
UPC051712716581
-
Manufacturer Part NumberGMA-7A
-
CountryCanada
-
Terminal TypeFerrule
-
MaterialBrass/Glass
-
Rejection/Non-RejectionNon-Rejection
-
Response Time60 min at 135%, 2 min at 200%
-
TypeFast Acting Small Dimension
-
Mounting TypeClip/Holder
-
Voltage Rating125 V AC/32 V DC
-
Amperage Rating7 A
-
SeriesGMA
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200 kA
-
Body Size5 mm Dia x 20 mm L
-
Body TypeCylindrical
-
ElementSingle
- Fast acting for maximum protection
- Low breaking capacity
- Nickel plated brass end caps
- 60 min maximum at 135% of ampere rating, 2 min maximum at 200% of ampere rating response time
- 200 A at 125 VAC interrupt rating
- Glass tube
-
Alternative Part Number9490155
-
UNSPSC39121607
-
IDEA Index ID9490155
-
Package DescriptionEACH
-
Standards/ApprovalsCE Certified|PSE Approved|UL File No. E19180|UL Guide JDYX2|UL Recognized
-
