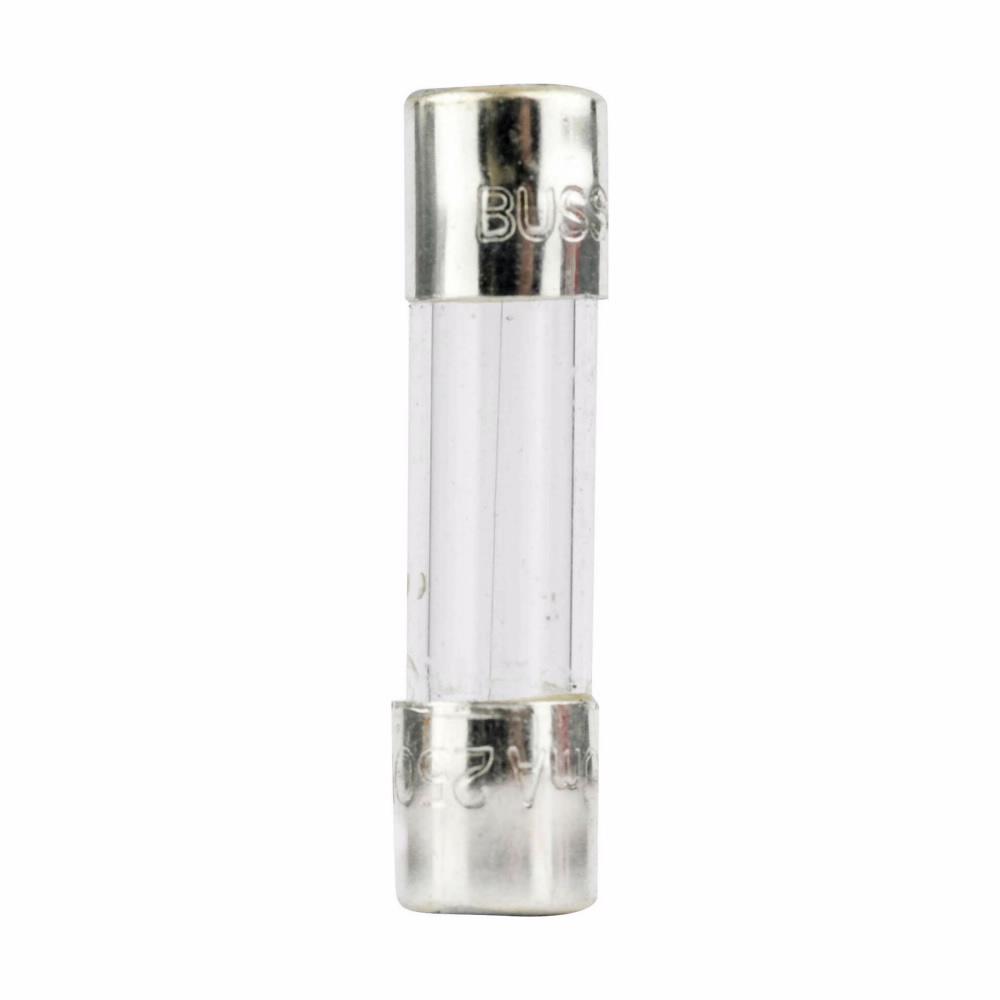

Bussmann GMC-1.6-R Electronic Medium Small Dimension Time Delay Fuse, 1.6 A, 250 V AC/32 V DC, 100 A at 10 kA Interrupt, Cylindrical Body
Bussmann GMC-1.6-R Electronic Medium Small Dimension Time Delay Fuse, 1.6 A, 250 VAC/32 VDC, 100 A at 10 kA Interrupt, Cylindrical Body
-
BrandBussmann
-
UPC051712642804
-
Manufacturer Part NumberGMC-1.6-R
-
CountryCanada
-
Terminal TypeFerrule
-
MaterialGlass
-
Response Time2/60 min
-
TypeElectronic Medium Small Dimension
-
Mounting TypeClip/Holder
-
Voltage Rating250 V AC/32 V DC
-
Amperage Rating1.6 A
-
SeriesGMC
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating100 A at 10 kA
-
Body Size5.2 mm Dia x 20 mm H
-
Body TypeCylindrical
- Low breaking capacity
- Glass tube, nickel plated brass end caps
- 60 min maximum at 135%, 2 min maximum at 200% of ampere rating response time
- 100 A at 250 VAC, 10 kA at 125 VAC interrupt rating
- Without Axial lead
-
Alternative Part Number9490165
-
UNSPSC39121607
-
IDEA Index ID9490165
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL 248-14, Guide JDYX, File No. E19180|CSA Class 1422-01, File No. 53787|CE Certified|MITI Approved|KC Mark SU05011-4003
-
