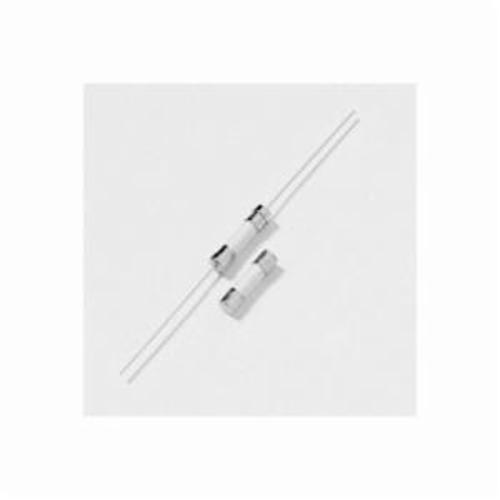

Littelfuse® POWR-GARD® 215008P Time Delay Cartridge Fuse, 8 A, 250 V AC, 1.5 kA Interrupt, Cartridge Body
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458900415
-
Manufacturer Part Number215008P
-
CountryUSA
-
Terminal TypeFerrule
-
MaterialCeramic
-
Response Time30 min, 0.75 to 80 s, 0.15 to 5 s, 0.1 to 150 s
-
TypeTime Delay
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating8 A
-
Series215
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating1.5 kA
-
Body Size5.5 mm Dia x 21.5 mm L
-
Body TypeCartridge
- Designed to international IEC standards for use globally
- High breaking capacity
- Lead-free
- Nickel plated brass cap, tin plated copper leads
- -55 to 125 deg C operating temperature
- 30 min minimum at 150%, 30 min maximum at 210%, 0.75 to 80 s at 275%, 0.15 to 5 s at 400%, 0.1 to 150 s at 1000% opening time
- Meets the IEC 60127-2, sheet 5 specification for time lag fuses
- 1.5 kA at 250 VAC interrupting rating
-
Alternative Part Number0215008.VXP|9533684
-
UNSPSC39121627
-
IDEA Index ID9533684
-
Package DescriptionEACH
-
Standards/ApprovalsIEC 60127-2|CE Marked|cURus Listed|UL 248|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
-
