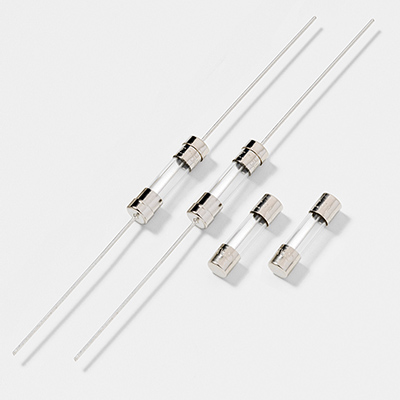

Littelfuse® H21706.3P Fast Acting Cartridge Fuse, 6.3 A, 250 V AC, 63 A Interrupt, Cartridge Body
Littelfuse® H21706.3P Fast Acting Cartridge Fuse, 6.3 A, 250 VAC, 63 A Interrupt, Cartridge Body
-
BrandLittelfuse®
-
UPC079458903676
-
Manufacturer Part NumberH21706.3P
-
CountryUSA|Canada
-
MaterialGlass
-
Response Time0.02 s
-
TypeFast Acting
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating6.3 A
-
Series217
-
Interrupt Rating63 A
-
Body Size5 mm Dia x 20 mm L
-
Body TypeCartridge
- Designed to international IEC standards for use globally
- Lead-free
- 60 min at 150%, 30 min at 210%, 0.05 to 2 s at 275%, 0.01 to 0.3 s at 400%, 0.02 s at 1000% response time
-
Alternative Part Number021706.3HXP|10701891
-
UNSPSC39121627
-
IDEA Index ID10701891
-
Package DescriptionEACH
-
Standards/ApprovalsIEC 60127-2|UL File No. E10480 Recognized|CSA File No. 29862|CE Certified|CCC Certified|VDE Approved|ICC Approved|PSE Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
