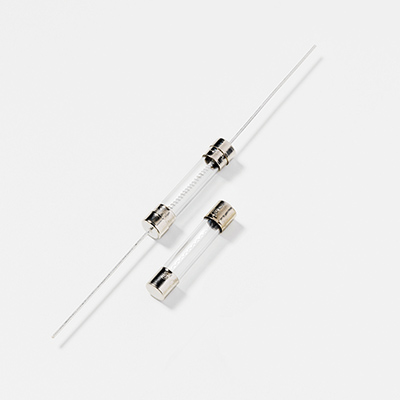

Littelfuse® POWR-GARD® Slo-Blo® 315015P Type 3AG Cartridge Fuse, 15 A, 32 V AC, 300 A Interrupt, Cartridge Body
The 3AG Slo-Blo® fuse solves a broad range of application requirements while offering reliable performance and cost effective circuit protection. The fuse catalog number with the suffix ID in instantly identifies itself upon opening by showing a discoloration of its glass body. Guesswork and time consuming circuit testing are eliminated. This unique design offers the same quality performance characteristics as the standard 3AG slow-blow fuse design.
-
BrandLittelfuse®
-
UPC079458927740
-
Manufacturer Part Number315015P
-
CountryUSA
-
Terminal TypeAxial Lead
-
MaterialGlass
-
Response Time4 hr, 1 hr, 5 to 30 s
-
TypeType 3AG
-
Voltage Rating32 V AC
-
Amperage Rating15 A
-
Series315
-
Indicating/Non-IndicatingIndicating
-
Interrupt Rating300 A
-
Body Size0.275 in Dia x 1.275 in L
-
Body TypeCartridge
- Slow blow
- 4 hrs maximum at 100%, 1 hrs maximum at 135%, 5 to 30 sec at 200% opening time
-
Alternative Part Number0315015.VXP|9534156
-
UNSPSC39121628
-
IDEA Index ID9534156
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-14|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Owners/User Manual
