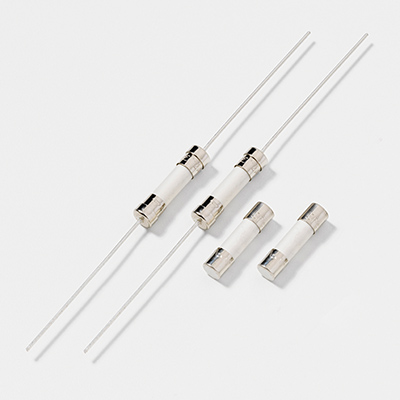

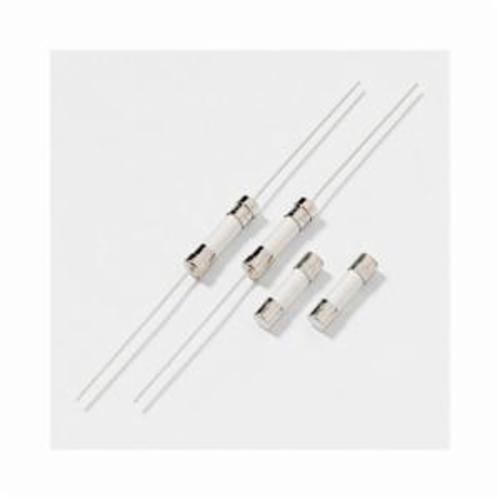

Littelfuse® POWR-GARD® 216.315P Fast Acting Cartridge Fuse, 0.315 A, 250 V AC, 1.5 kA Interrupt, Class: CC, Cartridge Body
For over 85 years Littelfuse® has been providing fuses to the electrical market. You can continue to count on our manufacturing and supply chain processes to deliver high quality fuses when you need them. At Littelfuse® we leverage our global reach to stay on top of the latest applications and standards. Whether your circuit protection needs are focused on OEM, MRO or construction, we are committed to being your circuit protection partner and appreciate your business.
-
BrandLittelfuse®
-
UPC079458901429
-
Manufacturer Part Number216.315P
-
CountryUSA|Canada
-
Terminal TypeFerrule
-
MaterialCeramic
-
ClassCC
-
Response Time60 min, 30 min, 0.01 to 2 s, 0.003 to 0.3 s, 0.02 s
-
TypeFast Acting
-
Mounting TypeHolder
-
Voltage Rating250 V AC
-
Amperage Rating0.315 A
-
Series216
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating1.5 kA
-
Body Size5 mm Dia x 20 mm L
-
Body TypeCartridge
- Designed to international (IEC) standards for use globally
- Meets the IEC 60127-2, sheet 2 specification for fast acting fuses
- Lead-free
- Nickel plated brass cap, tin plated copper leads
- -55 to 125 deg C operating temperature
- 60 min minimum at 150%, 30 min maximum at 210%, 0.01 to 2 sec at 275%, 0.003 to 0.3 sec at 400%, 0.02 sec maximum at 1000% opening time
- 1.5 kA at 250 VAC interrupting rating
-
Alternative Part Number0216.315VXP|9533699
-
UNSPSC39121627
-
IDEA Index ID9533699
-
Package DescriptionEACH
-
Standards/ApprovalsIEC 60127-2|CSA Certified|CE Certified|cRUus Listed|UL 248-4|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
