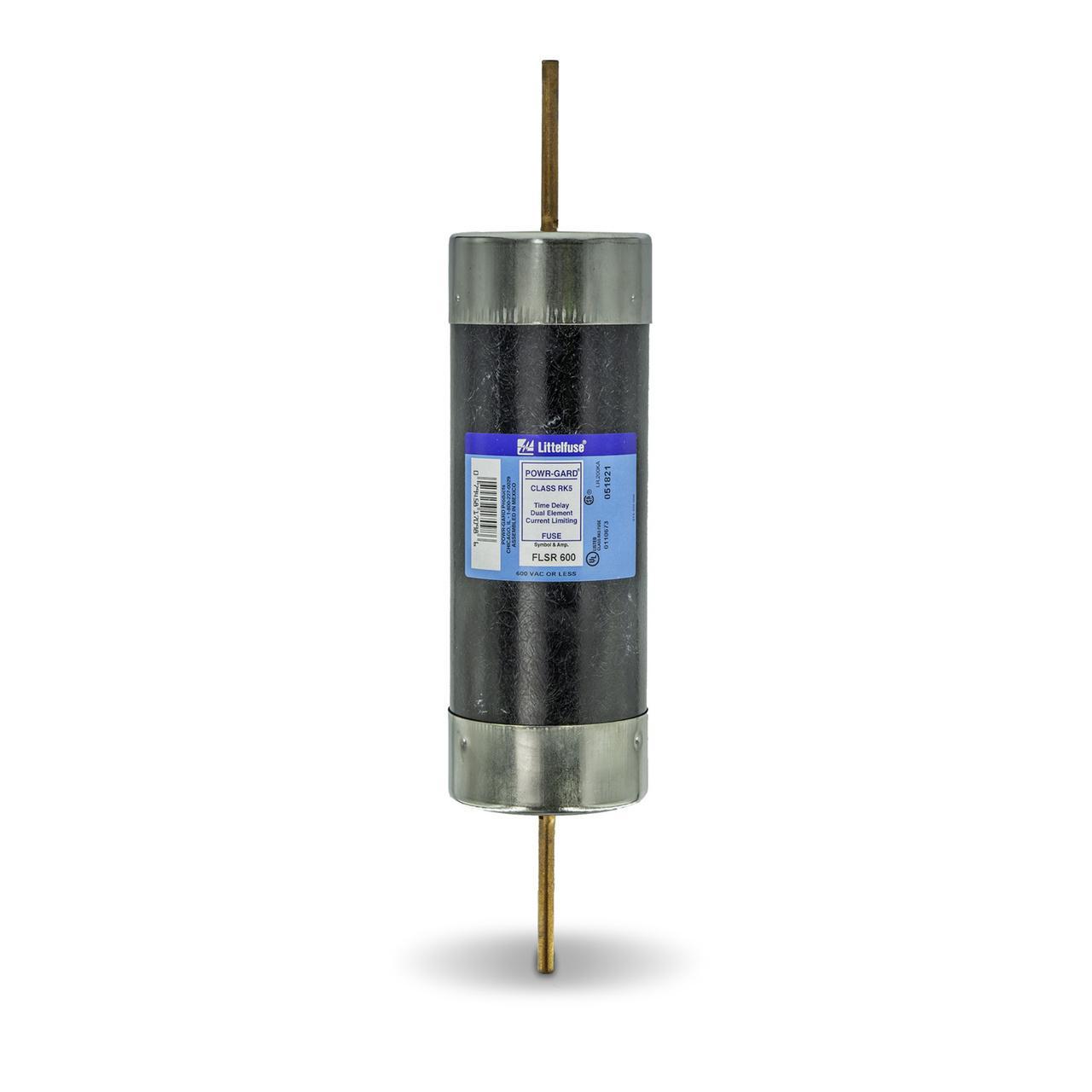

Littelfuse® POWR-GARD® FLSR600 FLSR Current Limiting Time Delay Fuse, 600 A, 600 V AC/300 V DC, 200/20 kA Interrupt, RK5 Class, Cylindrical Body
Littelfuse® FLSR series fuses have been the superior UL Class RK5 dual element time delay fuses and are the most widely used Class of fuses. FLSR series fuses provide excellent protection for all types of circuits especially those containing motors. However, users and specifiers should consider the significant benefits offered by indicator fuses.
-
BrandLittelfuse®
-
UPC079458170986
-
Manufacturer Part NumberFLSR600
-
CountryUSA
-
Terminal TypeKnife Blade
-
MaterialComposite
-
ClassRK5
-
Frequency Rating50/60 Hz
-
Rejection/Non-RejectionRejection
-
Response Time10 s
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/300 V DC
-
Amperage Rating600 A
-
SeriesFLSR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating200/20 kA
-
Body Size3-3/32 in Dia x 13-3/8 in L
-
Body TypeCylindrical
-
ElementDual
-
Short Circuit Current Rating3800 A
- Reliable interruption of all over currents up to 200 kA
- Faster acting short circuit protection than any non-current limiting mechanical protective device
- Accurate and reliable - automated, precision manufactured and assembled parts ensure accurate, consistent response to overloads and short circuits
- 300 kA rms symmetrical self certified
- Copper caps
- Industrial cylindrical cartridge fuses
- 200000 AIR - Reliable interruption of all overcurrents up to 200000 A
- LFR60 and LFR25 series recommended fuse holders
- Slo-blo/time lag (T)/time delay opening
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 486L65 |
-
Alternative Part NumberFLSR600.X|8579873
-
UNSPSC39121627
-
IDEA Index ID8579873
-
Package DescriptionEACH
-
Standards/ApprovalsUL 248-12|E81895|CSA LR29862|Federal Specification WF-1814|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
