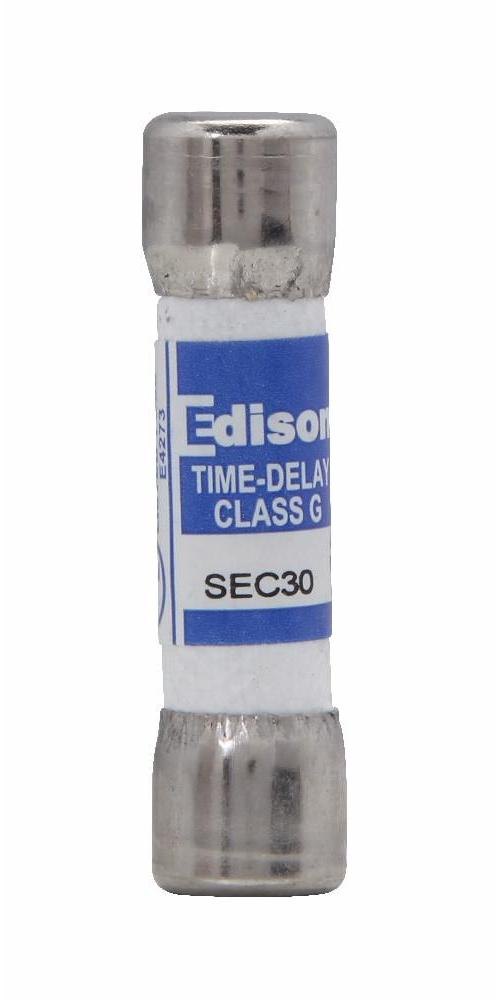

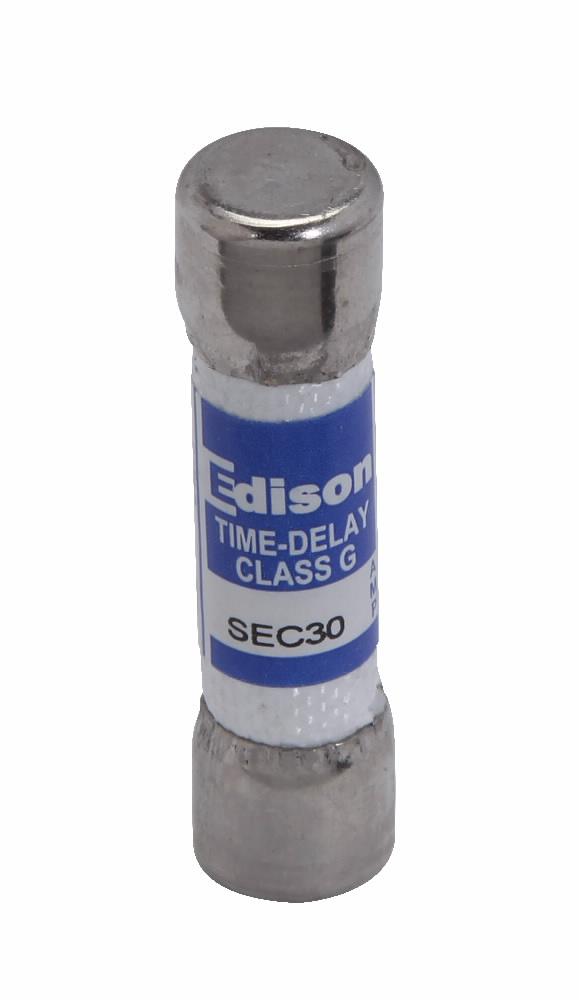

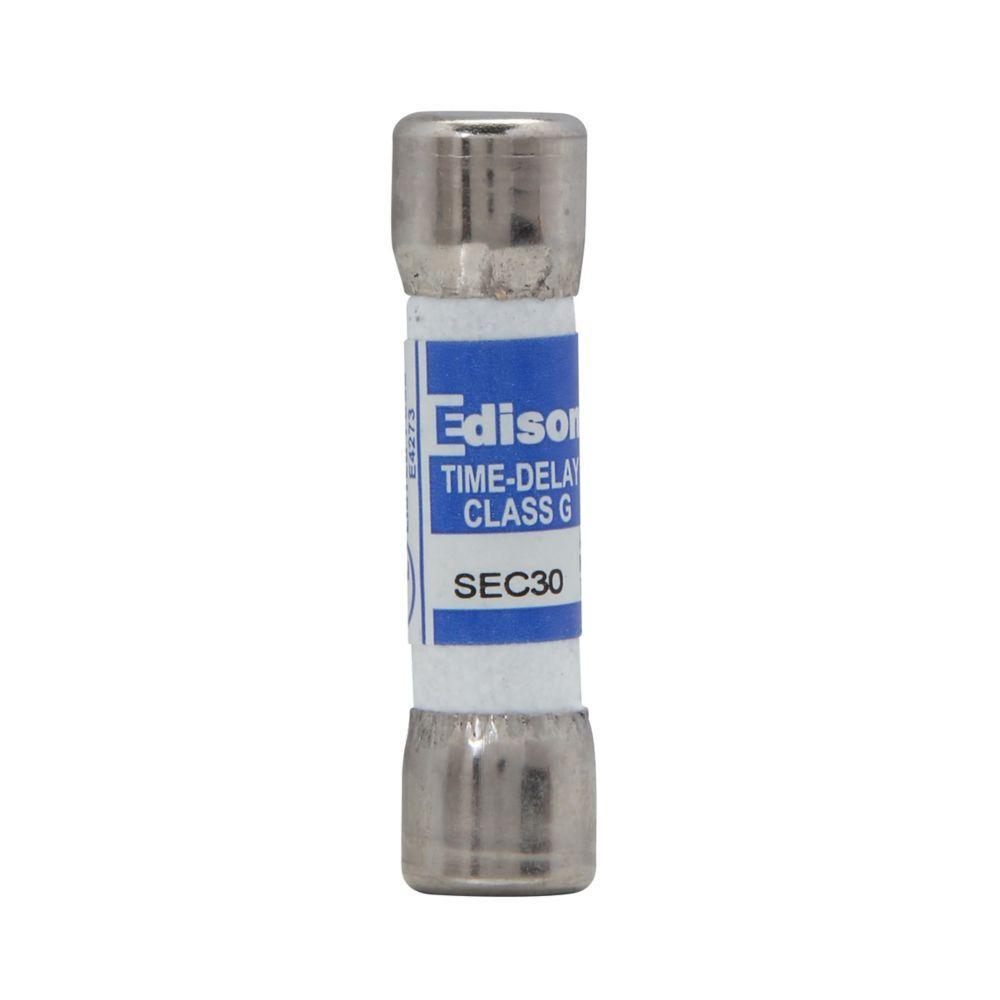

Edison SEC30 Time Delay Fuse, 30 A, 480 V AC, 100 kA Interrupt, G Class
SEC Class G fuses in fast acting (0.5 to 6 A) and time delay (25 to 60 A) versions with ampacity rejecting lengths to help prevent over fusing.
-
BrandEdison
-
UPC782634802419
-
Manufacturer Part NumberSEC30
-
CountryUSA
-
ClassG
-
Voltage Rating480 V AC
-
Amperage Rating30 A
-
SeriesSEC
-
Interrupt Rating100 kA
-
Body Size0.41 in Dia x 1.63 in L
- Branch circuit rated for 480 VAC
- Compact size features varying length rejection feature which helps prevent over fusing
- Time delay of 12 s minimum at 200% rating for amp sizes 6 through 60
-
Alternative Part Number8430251
-
UNSPSC39121609
-
IDEA Index ID8430251
-
Package DescriptionEACH
-
Standards/ApprovalsBAA Compliant|CSA C22.2 No 248.5, Class 1422-01, File 700489|UL 248-5, Class G, File E162363, Guide JDDZ
-
