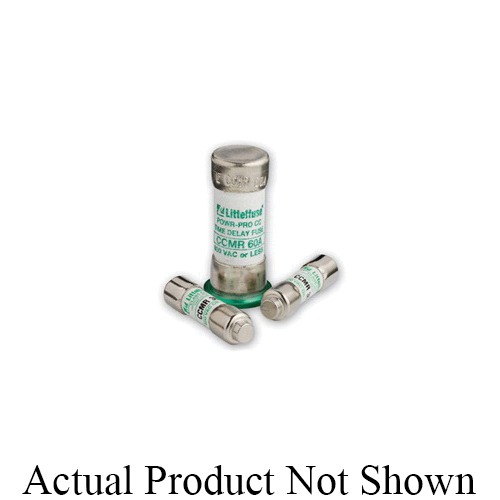

Littelfuse® POWR-GARD® CCMR02 Current Limiting Time Delay Fuse, 2 A, 600 V AC/250 V DC, 20/200 kA Interrupt, CC Class, Cartridge/Cylindrical Body
Littelfuse® POWR-GARD® CCMR02 Current Limiting Time Delay Fuse, 2 A, 600 VAC/250 VDC, 20/200 kA Interrupt, CC Class, Cartridge/Cylindrical Body
-
BrandLittelfuse®
-
UPC794589681710
-
Manufacturer Part NumberCCMR02
-
CountryUSA
-
Terminal TypeClip
-
MaterialMelamine
-
ClassCC
-
Rejection/Non-RejectionRejection
-
TypeCurrent Limiting
-
Mounting TypeHolder
-
Voltage Rating600 V AC/250 V DC
-
Amperage Rating2 A
-
SeriesCCMR
-
Indicating/Non-IndicatingNon-Indicating
-
Interrupt Rating20/200 kA
-
Body Size0.41 in Dia x 1.5 in L
-
Body TypeCartridge/Cylindrical
-
ElementDual
- The CCMR Series is ideal for space-saving protection of motors up to 40 hp
- Only true dual element time-delay CC fuses specifically engineered for motor branch circuit protection
- Provide type II protection (no damage) to both NEMA rated and the more sensitive IEC (International Electromechanical Commission) type motor circuit components
- Provide superior protection in a fraction of the space required by other fuse classes - for example, when 600 V 3-pole, 30 A Class R fuse blocks are replaced by Littelfuse® Class CC fuse blocks, panel mounting space is reduced approximately 70%
- Extremely current limiting - reduces damage caused by heating and magnetic effects of short-circuit currents stops damaging short-circuit faster than any mechanical protective device
-
UNSPSC39121604
-
Standards/ApprovalsCE Certified|CSA File No. LR29862|RoHS Compliant|UL File No. E81895
-
