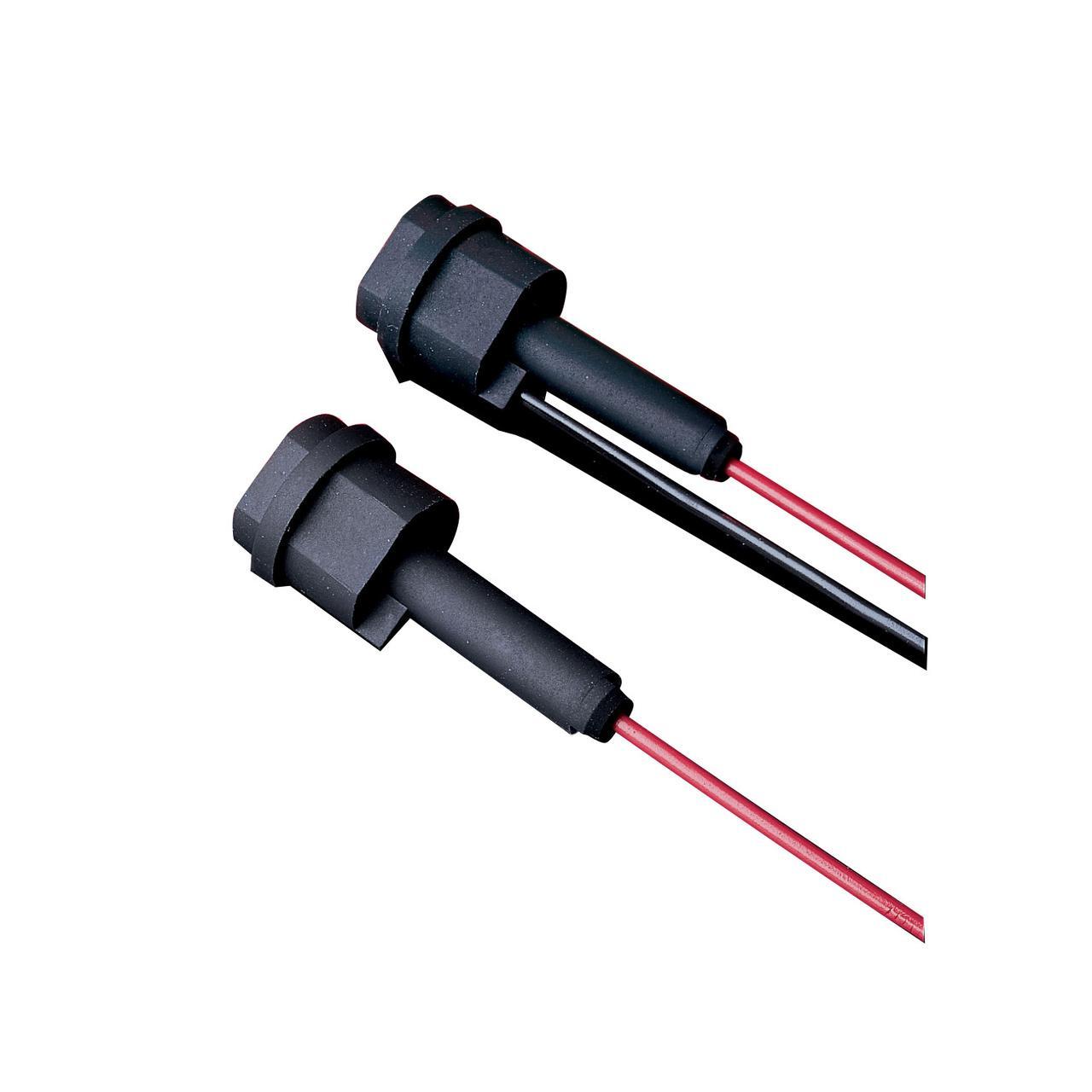

Littelfuse® LHR000 Fuse Holder, 300 V AC, 10 A, 1 Pole
The Littelfuse® LGR and LMF series fuses and LHR holder offer increased safety and reliability to lighting systems. on a 277 volt system, a fault occurring in an un-fused fixture could take out the entire branch circuit affecting upto 100 fixtures. this could cause safety problems as well as shut down operations. by individually fusing fixtures, these problems will be avoided. The added benefits of this is the ability to quickly identify the problem fixture and reduce the repair time. fuse holders are rated upto 10 A at 300 V and are equipped with 7 18 AWG leads. Order part number LHR 000 for two leads and part number LHR 001 for one lead and one terminal for insertion of 18 AWG ballast lead.
-
BrandLittelfuse®
-
UPC079458113501
-
Manufacturer Part NumberLHR000
-
CountryUSA
-
Fuse Diameter0.61 in
-
Fuse Length1.82 in
-
ColorBlack
-
Mounting TypePanel
-
Voltage Rating300 V AC
-
Amperage Rating10 A
-
SeriesLHR
-
Number of Poles1
-
Dimensions2-1/4 in L
-
Suitable For Use WithLGR and LMF Series Fuse
- Equipped with 7 in 18 AWG leads
- Used as in-line protection for fluorescent fixtures
- Will fit keyhole punch or 0.875 in knock-out hole
- Anti-rotation feature is provided when used with keyhole punch
-
Alternative Part Number0LHR0000T|8573198
-
UNSPSC39121624
-
IDEA Index ID8573198
-
Package DescriptionEACH
-
Standards/ApprovalsUL Recognized|CSA Certified|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer
-
Specification Sheet
-
Owners/User Manual
-
Technical Bulletin
