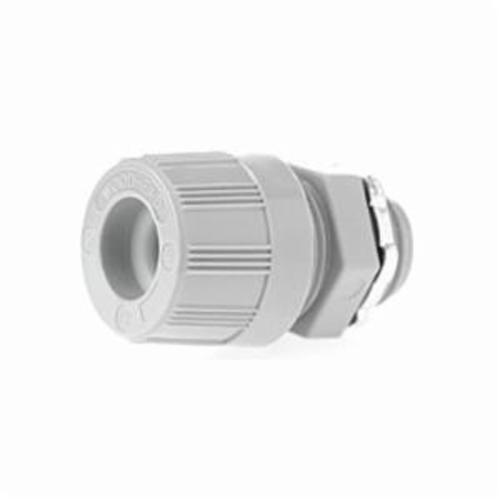

Woodhead® MAX-LOC® 5524W 130098 Straight Strain Relief Cord Sealing Grip With O-Ring and Locknut, 1/2 in Trade, 1/4 to 5/16 in Cable Openings, Nylon
Plugs, connectors and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead® grips reduce cord arc bend, assist in the load support of a hanging box and help to prevent cord pullout. Woodhead® offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic MAX-LOC® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Dust-tight grips are very popular for general use enclosure or box installations. Wiring device cord grips can be used on cord-clamp style plugs and connectors and threaded cord grips can be used with Watertite® or other threaded style connections.
-
BrandWoodhead®
-
UPC786788055240
-
Manufacturer Part Number5524W
-
CountryUSA|Canada
-
Cable Openings1/4 to 5/16 in
-
MaterialNylon
-
Trade Size1/2 in
-
ColorBlack
-
TypeStraight Strain Relief
-
Connection TypeMNPT
-
Series130098
- Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
- Nylon body is resistant to impact and corrosion
- Rubber grommet provides a liquidtight seal and reduces cord pullout
- Grommets are color coded for easy identification
- Rubber grommet is best material to resist chemicals and handles a wide temperature range
- Available stainless steel mesh yields high strength, corrosion resistance and slight conductivity
- Available non-metallic mesh yields moderate strength, corrosion resistance, great flexibility and no conductivity
- Gray cord grip body and compression nut, nylon washer
- Rubber grommet
- Neoprene O-ring
- Zinc plated steel nut
- Half double weave, half single weave mesh
- Liquidtight cord seal
- One hole fitting
- NEMA 6P rating
-
Alternative Part Number1300980056|8756466
-
UNSPSC39131707
-
IDEA Index ID8756466
-
Package DescriptionPIECE
-
Standards/ApprovalsUL E76954|CSA LR32159
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
