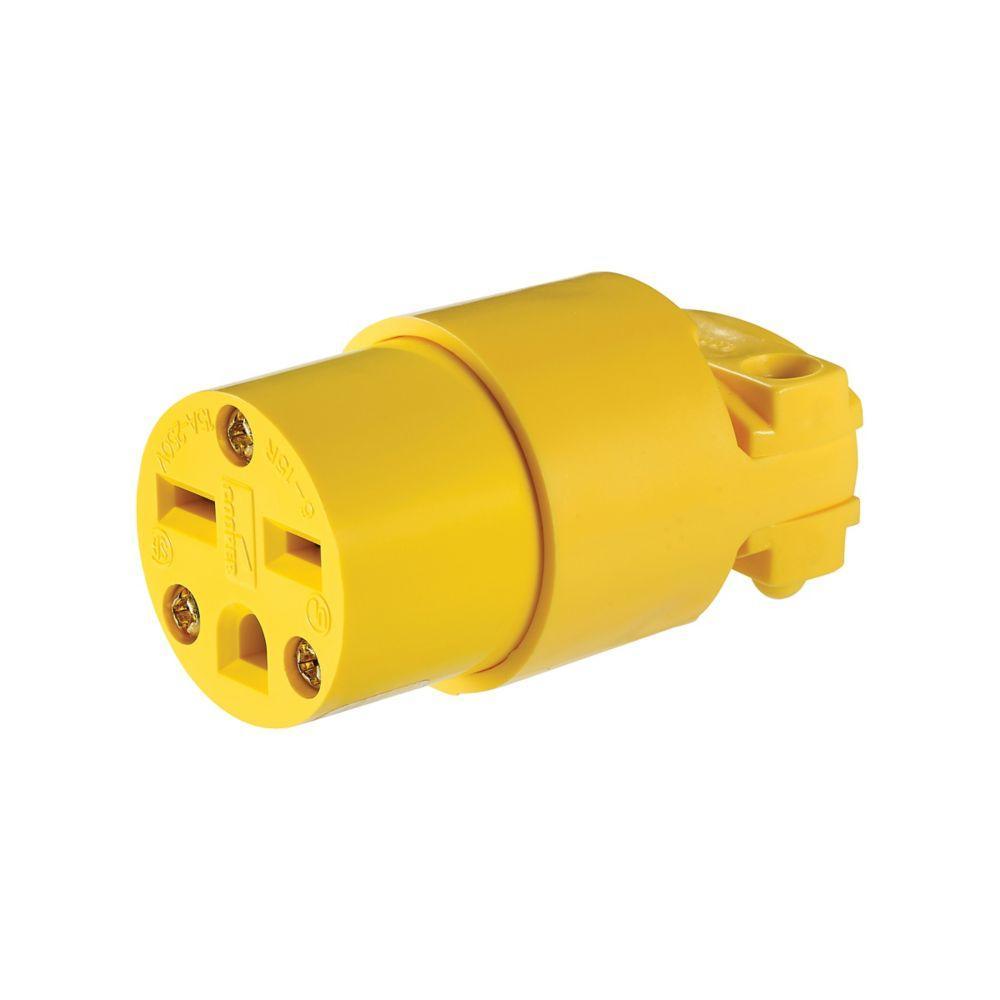

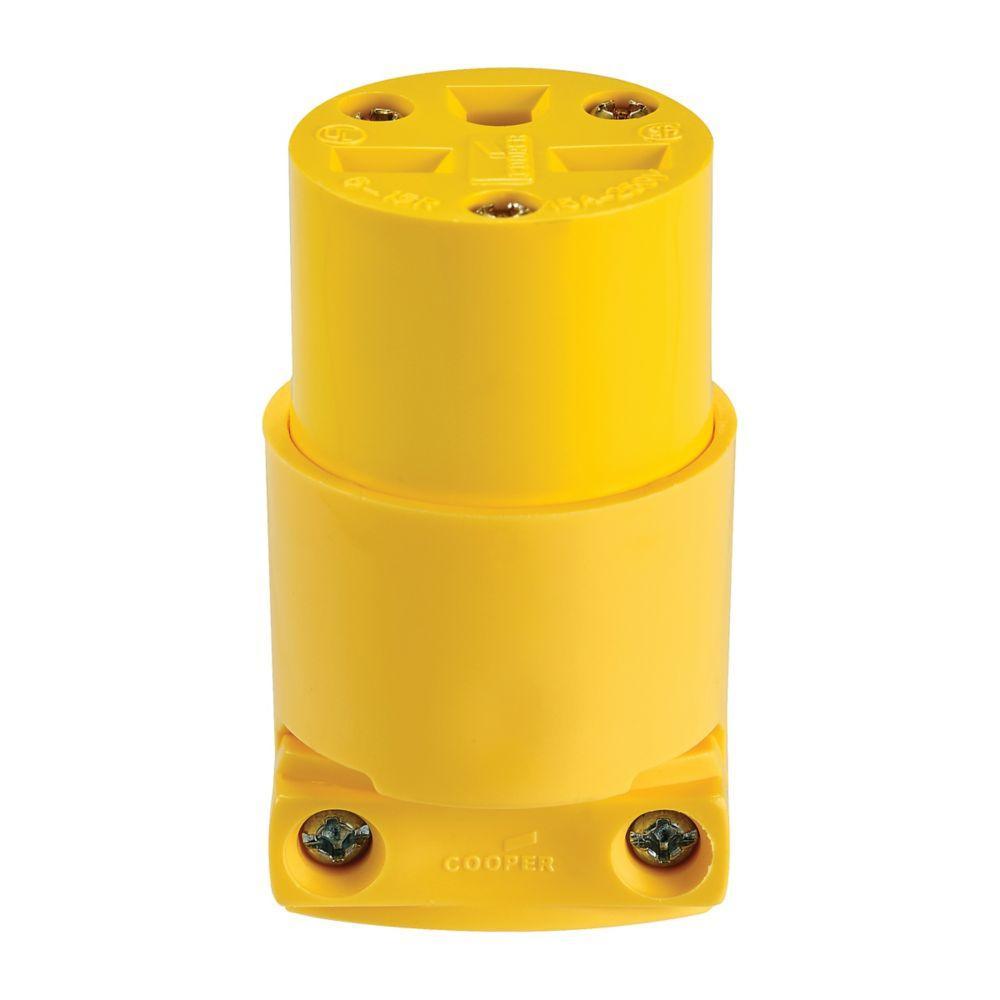

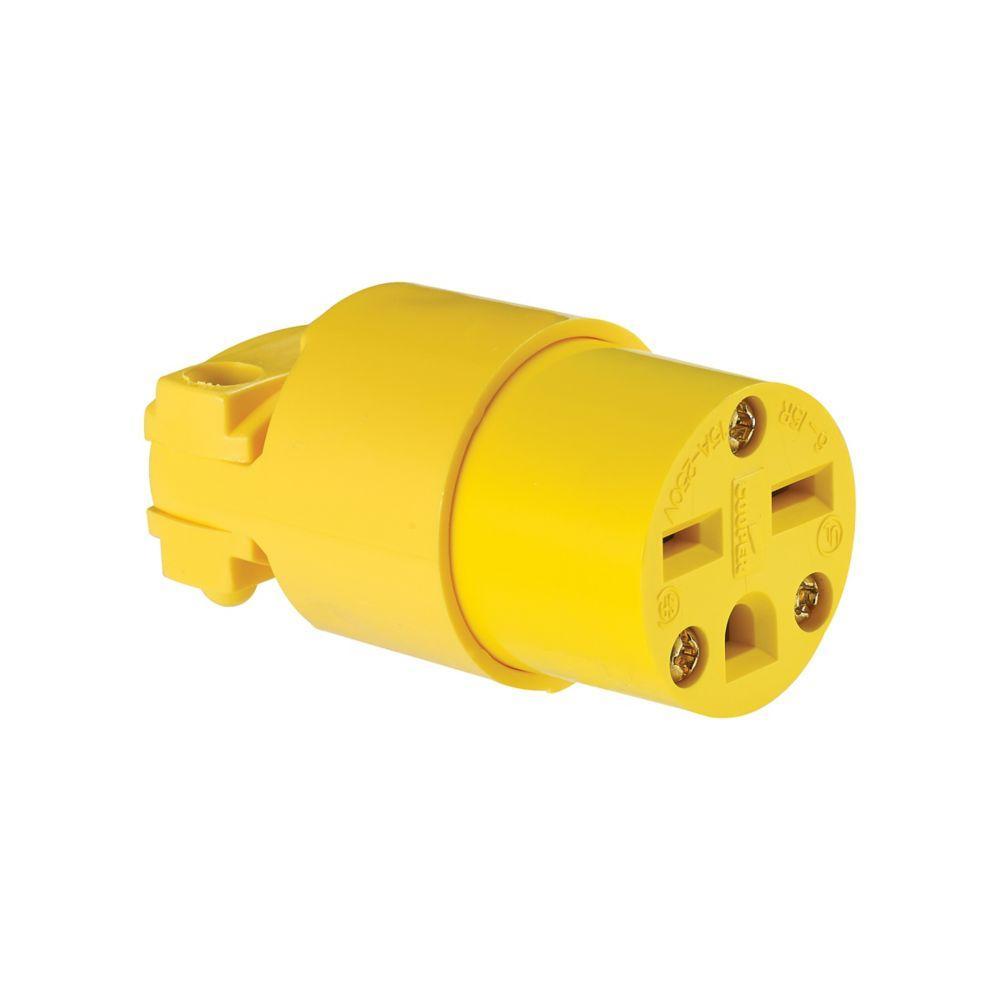

EATON Arrow Hart® 4227-BOX 2-Pole Straight Blade Flexible Cord Connector, 3 Conductors, 0.25 to 0.66 in Cable Openings, Polypropylene/Nylon/Vinyl
Commercial grade thermoplastic vinyl connectors feature solid brass plug blades are firmly embedded in body. Terminal screw clamps are designed to contain wire and prevent binding. Terminal screws backed out ready for wiring. Terminals in individual chambers to positively insulate conductors. Vinyl angle plugs have eight possible positions for maximum convenience. Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers.
-
BrandEATON
-
UPC032664332609
-
Manufacturer Part Number4227-BOX
-
CountryUSA
-
Cable Openings0.25 to 0.66 in
-
Temperature Rating-20 to 60 deg C
-
MaterialPolypropylene/Nylon
-
ColorYellow
-
TypeStraight
-
Connection TypeScrew
-
Number of Conductors3
-
Dimensions2.61 in H x 1.54 in W
- Solid brass plug blades are firmly embedded in body
- Terminal screw clamps are designed to contain wire and prevent binding
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Terminals in individual chambers to positively insulate conductors
- Vinyl angle plugs have eight possible positions for maximum convenience
- Combination slot/Phillips® head mounting and terminal screws ease installation with power screwdriver
- 250 VAC voltage rating
- 15 A amperage rating
- NEMA 6-15P rated
- Specification grade
- Back wire - wiring type
- 18 to 12 AWG wire
-
Alternative Part Number8171774
-
UNSPSC39121402
-
IDEA Index ID8171774
-
Package DescriptionEACH
-
Standards/ApprovalsUL,Federal Specification Classification 6221 02,RoHS Compliant
-
Specification Sheet
-
Owners/User Manual
