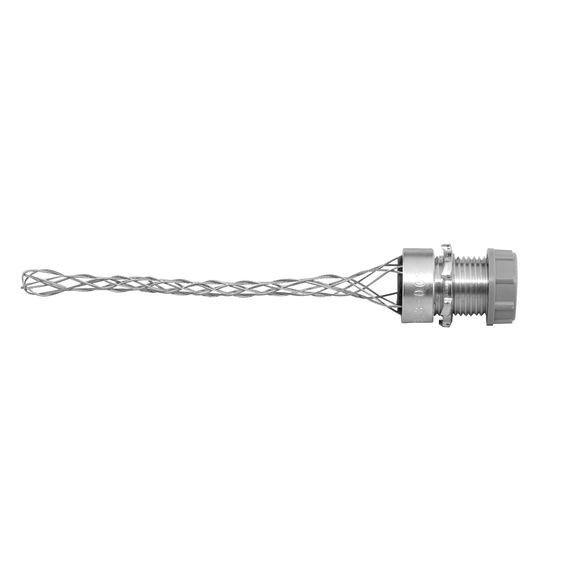

Remke Tuff-Seal™ 7303-013R Closed Mesh Insulated Single Weave Wide Range Strain Relief Grip With Galvanized Steel Mesh, 0.94 to 1.25 in Cable, For Use With 1-1/4 in NPT Connector, Aluminum
Tuff-Seal™ Wire Mesh Cable Grips distribute stress over a large area to prevent damage to wire, cable and flexible conduit. They are built to perform their task over an extended period of time without loosening their hold. All Remke wire mesh grips are available in a wide selection of cable ranges and eye styles where applicable and can be used in conjunction with any RSR cord connector.
-
BrandRemke
-
UPC785411102276
-
Manufacturer Part Number7303-013R
-
CountryUSA
-
Cable Size0.94 to 1.25 in
-
MaterialAluminum
-
Mesh Length9 in
-
TypeClosed Mesh Insulated Single Weave Wide Range
-
Suitable For Use With1-1/4 in NPT Connector
- The mesh exerts a uniformly distributed compressive force over a large area of the cable for maximum gripping without pinching the cable
- An endless weave conforms to the cable jacket, eliminating wedging or crushing of the cable at that point
- Mesh material has high tensile strength and corrosion resistance
- PVC gasket seals out large dust particles, lint or metal filings and other contaminants from the electrical connections
- Adjusts to wide range of cable or cord diameters, so fewer grips are needed to fit many cable sizes
- Readily installed, adjusted, repositioned, removed or reused
- Makes relocating plant wiring and machines easy
- Automatically adjust their gripping to hold the required load
- No special installer skill or special tools required
- Wire mesh grips are available in a wide selection of cable ranges and eye styles
-
Alternative Part Number20870449
-
UNSPSC39121725
-
IDEA Index ID20870449
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL 94-HB Flammability Rating
-
RoHS
