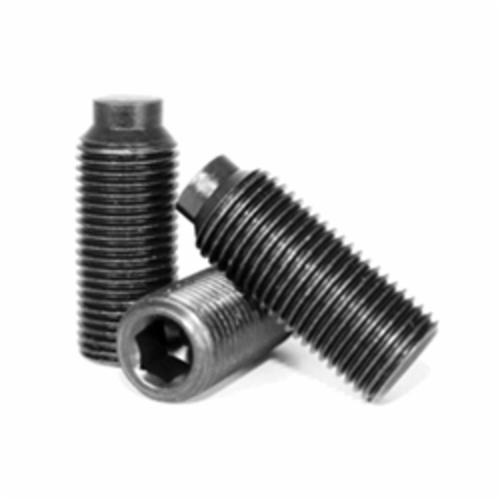

BBI 606151 Semi-Standard Socket Set Screw, #8-32, 1/8 in L, Half Dog Point, Alloy Steel
BBI 606151 Semi-Standard Socket Set Screw, #8-32, 1/8 in L, Half Dog Point, Alloy Steel
-
BrandBBI
-
UPC662403688898
-
Manufacturer Part Number606151
-
CountryUSA|Canada
-
FinishPlain/Thermal Black Oxide
-
Point Size0.109 in Dia x 0.043 in L
-
Point TypeHalf Dog
-
MaterialAlloy Steel
-
Thread TypeUNC
-
Measurement SystemImperial
-
TypeSemi-Standard
-
Hardness45-53 HRC
-
Diameter - Thread Size#8-32
-
Drive Size5/64 in
-
Drive TypeHex
-
Length1/8 in
- Point is often set into drilled hole
- May sometimes take the place of a dowel pin
-
UNSPSC31161505
-
Package Description100/CS
-
Standards/ApprovalsANSI/ASME B18.3-2002|ASTM F912|BS 2470 Class Fit 3A
-
