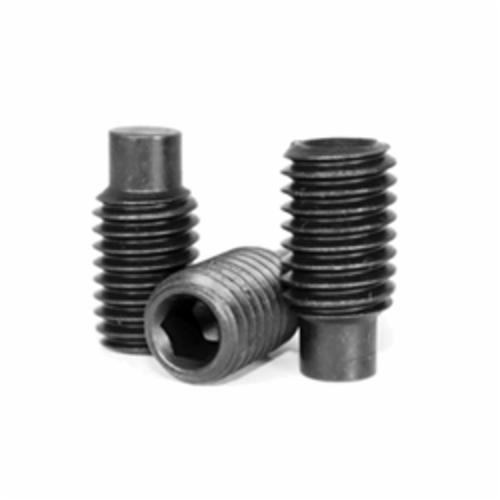

BBI 607207 Semi-Standard Socket Set Screw, #10-32, 1/2 in L, Full Dog Point, Alloy Steel
BBI 607207 Semi-Standard Socket Set Screw, #10-32, 1/2 in L, Full Dog Point, Alloy Steel
-
BrandBBI
-
UPC662403690150
-
Manufacturer Part Number607207
-
CountryUSA|Canada
-
FinishPlain/Thermal Black Oxide
-
Point Size0.095 x 0.127 in
-
Point TypeFull Dog
-
MaterialAlloy Steel
-
Thread TypeUNF
-
Measurement SystemImperial
-
TypeSemi-Standard
-
Hardness45-53 HRC
-
Diameter - Thread Size#10-32
-
Drive Size3/32 in
-
Drive TypeHex
-
Length1/2 in
- Point is often set into drilled hole
-
UNSPSC31161505
-
Package Description100/CS
-
Standards/ApprovalsANSI/ASME B18.3-2002|ASTM F912|BS 2470 Class Fit 3A
-
