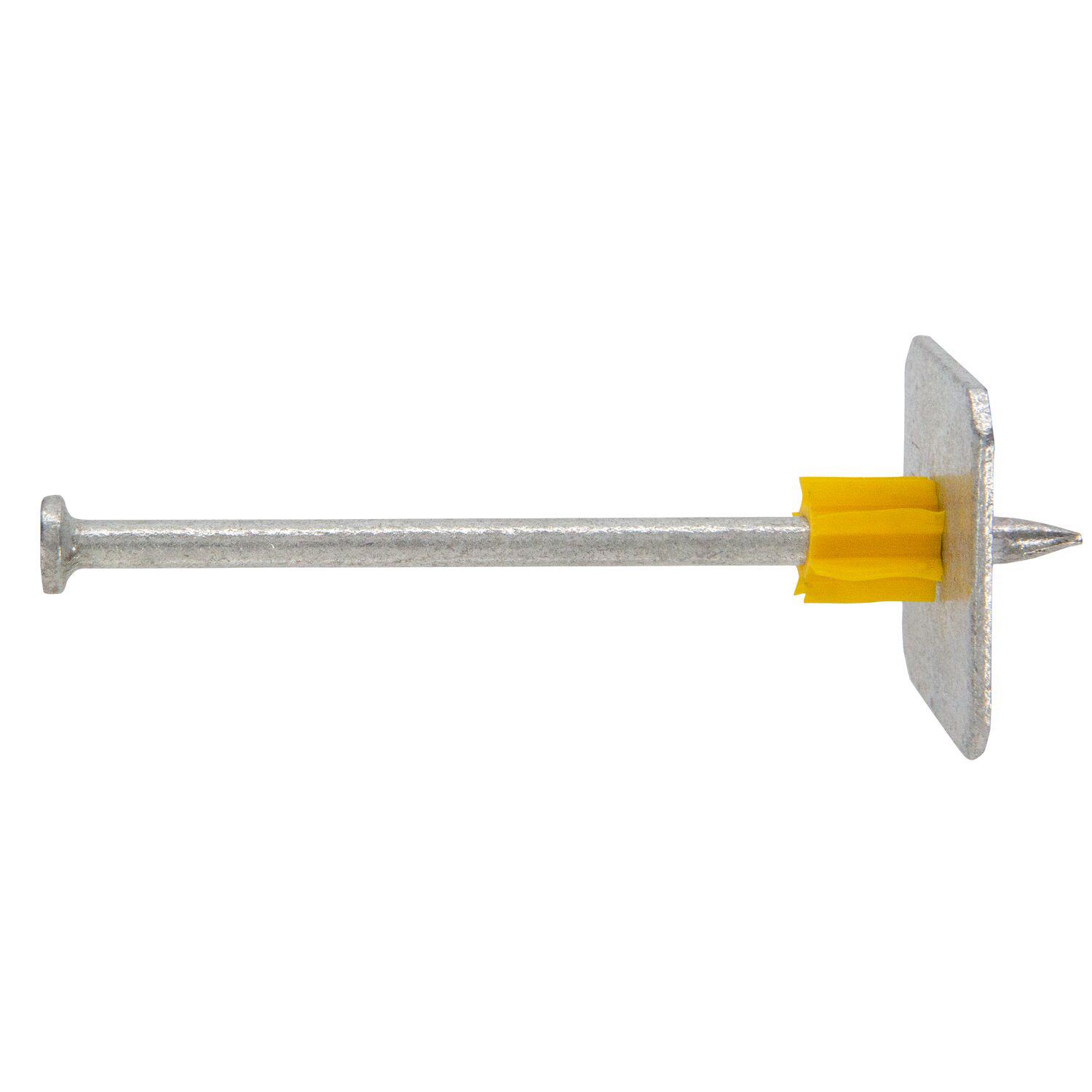

DeWALT® Powers® 50120-PWR Standard Flat Head Drive Pin With 1 in Square Washer, 0.145 in Dia x 3 in L Shank, 0.3 in Dia Head
Drive pins with a 0.3 in Dia head are designed for permanently fastening a fixture to concrete, concrete over steel deck, concrete masonry walls and A36 or A572/A992 structural steel. The fasteners are manufactured with a 0.145 in Dia shank in various lengths. Knurled shank designs are available for installations in thick steel base materials. A plastic flute is mounted on the pin shank to retain the drive pin in the barrel of the tool and provide guidance during the driving operation. The fasteners are also available in with a mechanically galvanized (MG) coating for use in treated lumber.
-
BrandDeWALT®
-
UPC075352639918
-
Manufacturer Part Number50120-PWR
-
CountryUSA
-
FinishZinc Plated
-
TypeStandard Flat Head
-
Head Diameter0.3 in
-
Shank Diameter0.145 in
-
Shank Length3 in
-
UNSPSC31162008
-
Standards/ApprovalsASTM E1190|IBC/IRC 2018/2015/2012/2009|ICC-ES AC70|ICC-ES ESR-2024
-
Specification Sheet
-
Catalog
