POWERS 5/8" X 4" HEX-HEAD SLEEVE ANCHORS PWR 6942
The POWER-BOLT®+ anchor is a torque controlled, heavy duty sleeve style anchor which is designed for consistent performance in cracked and un-cracked concrete. Suitable base materials include normal weight concrete and sand lightweight concrete. The anchor is manufactured with a zinc plated carbon steel bolt, sleeve, cone and expansion clip. The power Bolt+ has a low profile finished hex head.
-
BrandDeWALT®
-
UPC075352805320
-
Manufacturer Part Number6942SD-PWR
-
CountryUSA|Canada
-
FinishZinc Plated
-
Tensile Strength8845 lb
-
MaterialCarbon Steel
-
Maximum Work Thickness1/4 in
-
Minimum Embedment Depth2-3/4 in
-
TypeHeavy Duty
-
Head TypeHex
-
Shear Strength12620 lb
-
Diameter5/8 in
-
Drill Size5/8 in
-
Drive TypeHex
-
Overall Length4 in
- Consistent performance in high and low strength concrete
- Anchor can be installed through standard fixture holes
- Anchor design allows for follow-up expansion after setting under tensile loading
- Nominal drill bit size is the same as the anchor diameter

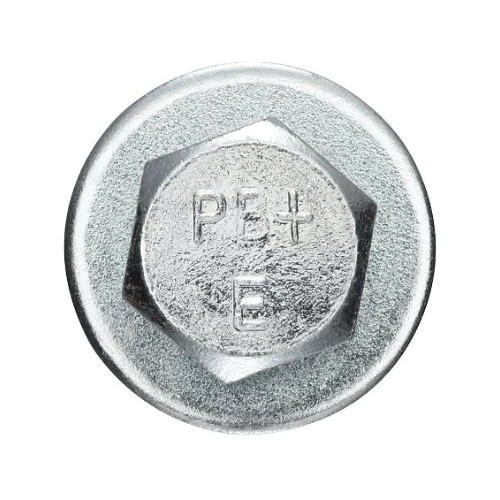

- Length ID code and identifying marking stamped on head of each anchor
- High shear load capacity
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 0563411 |
-
UNSPSC31162100
-
Standards/ApprovalsICC-ES ESR-3260|ACI 355.2|ICC-ES AC193|ASTM E-488|ASTM B633|IBC 2009, 2012, 2015|IRC 2009, 2012, 2015
-
Specification Sheet
-
Instruction/Installation Manual
