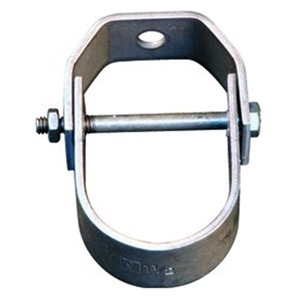

B-LINE B3100-5 5" PLAIN CLEVIS PIPE HANGERS
Standard clevis hanger is recommended for the suspension of non-insulated pipe or insulated pipe with a B3151 shield
Pipe will not ‘pinch’ when installing
Swing in either direction allows pipe to easily feed thru
Engineered design aligns bolt holes for quicker overhead installation
TOLCO seismic restraint systems guidelines
MSS SP-69 & SP-58, type 1
Also available to accommodate rod schedule per National Fire Protection Association (NFPA) Pamphlet 13
1.25" H x 8.8510" L x 7.3750"
Plain
5" max pipe size
