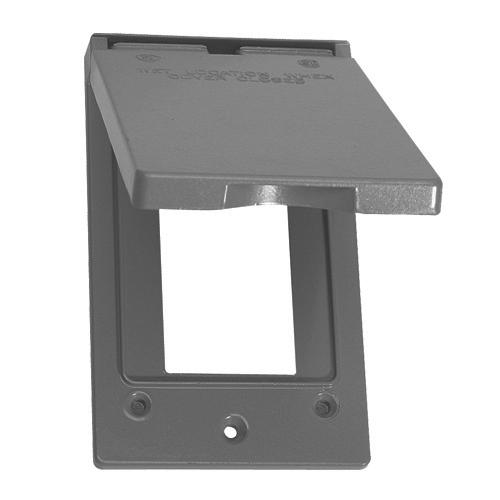

Appleton® ETP™ WVG1 Self-Closing Weatherproof Outlet Box Cover, 4.56 in L x 2.81 in W, GFCI Device Cover, Die Cast Aluminum
Appleton® ETP™ WVG1 Self-Closing Weatherproof Outlet Box Cover, 4.56 in L x 2.81 in W, GFCI Device Cover, Die Cast Aluminum
-
BrandAppleton®
-
UPC687855030132
-
Manufacturer Part NumberWVG1
-
CountryUSA|Canada
-
FinishPolyester Powder Coated
-
MaterialDie Cast Aluminum
-
ColorGray
-
TypeSelf-Closing Weatherproof
-
Mounting OrientationVertical
-
Mounting TypeSurface
-
Cover TypeGFCI Device
-
Width2.81 in
-
Number of Gangs1
-
ShapeRectangle
-
Number of Outlets1
-
Length4.56 in
- Rugged continuous and seamless die-cast construction prevents entry of dirt, dust and moisture
- Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
- Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
- Smooth, accurately tapped hubs prevent wire abrasion
- Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
- Photocells and lampholders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
- Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
- Lighting fixtures are individually boxed, labeled and bar coded for ease of handling and identification
- Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
- Lockable covers and covers with integral devices are offered
-
Alternative Part Number8987318
-
UNSPSC39121305
-
IDEA Index ID8987318
-
IncludesGasket and Mounting Hardware
-
Package DescriptionEACH
-
Standards/ApprovalsCSA C22.2 18.1|250|NEMA OS-1|UL 514A|1598|E53330
-
Specification Sheet
