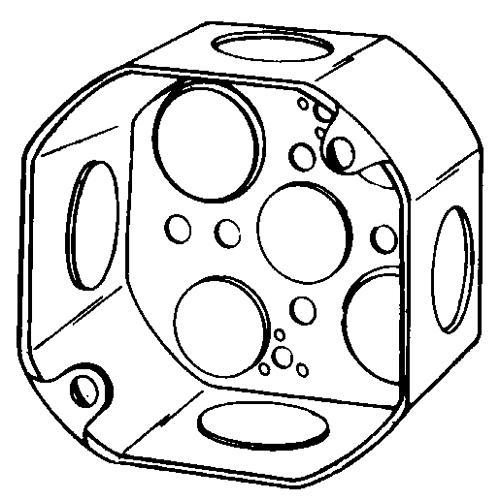

Appleton® ETP™ 4O-3/4 Octagon Box, Steel, 15.5 cu-in Capacity, 9 Knockouts, 1-1/2 in D
Appleton™ and O-Z/Gedney™ metallic 4 in octagon boxes, extension rings and covers are widely recognized for quality, selection and ease of installation. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. Manufactured of durable materials with consistent construction means easy installation, making all the difference in the speed and final quality of any wiring job.
-
BrandAppleton®
-
UPC687855750108
-
Manufacturer Part Number4O-3/4
-
CountryUSA
-
Capacity15.5 cu-in
-
FinishPre-Galvanized
-
MaterialSteel
-
Mounting TypeBolt-On/Threaded
-
ShapeOctagon
-
Number of Knockouts9
-
Diameter4 in
-
Dimensions1-1/2 in D
-
Knockout Size1/2 in, 3/4 in
-
Enclosure TypeNEMA OS-1
- Boxes with concentric or eccentric knockouts are suitable for bonding without any additional bonding means where used in circuits above or below 250 VAC
- Unless otherwise noted all concentric or eccentric knockouts are 1/2 to 3/4 in combinations
- Single and double gang metallic outlet and switch boxes are acceptable for use in two hour fire rated walls
- Groundskeeper raised ground feature on boss inside box provides one or two #10-32 tapped hole, allowing a 3/8 in long green ground screw to be threaded into box without contacting mounting surface
- Other boxes provided with flat ground tapped hole, except plenum boxes
- (3) 1/2 in bottom, (2) 3/4 in bottom, (4) 3/4 in side knockouts
-
Alternative Part Number54151-3/4|8993865
-
UNSPSC39121308
-
IDEA Index ID8993865
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|UL 514A File No. E2527
-
Specification Sheet
