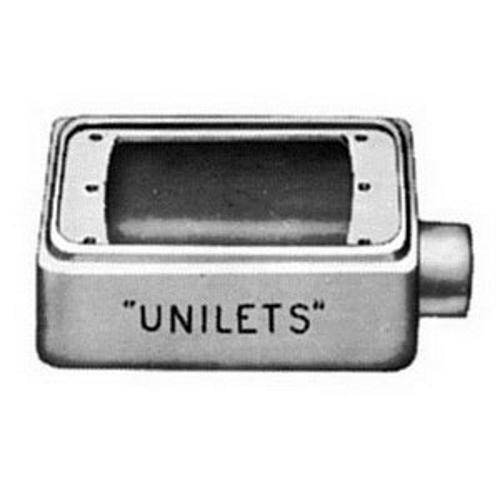

Appleton® UNILETS™ FD175 Type FD Deep Heavy Duty Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4.56 in H x 2.81 in W x 2.69 in D
Appleton® UNILETS™ FD175 Type FD Deep Heavy Duty Device Box With Internal Ground Screw, Malleable Iron, 25 cu-in Capacity, 1 Gangs, 1 Outlets, 1 Knockouts, 4.56 in H x 2.81 in W x 2.69 in D
-
BrandAppleton®
-
UPC781381333801
-
Manufacturer Part NumberFD175
-
CountryUSA|Canada
-
Cable Entry SizeKnockout
-
Capacity25 cu-in
-
FinishTri-Coated
-
MaterialMalleable Iron
-
TypeType FD Deep Heavy Duty
-
Number of Gangs1
-
Hub Size3/4 in
-
Hub StyleTapered Threaded
-
Number of Knockouts1
-
Number of Outlets1
-
Dimensions4.56 in H x 2.81 in W x 2.69 in D
-
Knockout Size3/4 in
-
Enclosure TypeNEMA FB-1
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Without knockouts
-
Alternative Part Number8334637
-
UNSPSC39121315
-
IDEA Index ID8334637
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|UL 514A File No. E2527|CSA C22.2 No. 18.1/001472|NEMA FB-1
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
