LEESON 3-HP 1-PH 56-HC 3600-RPM MOTORS LEE 115048.00

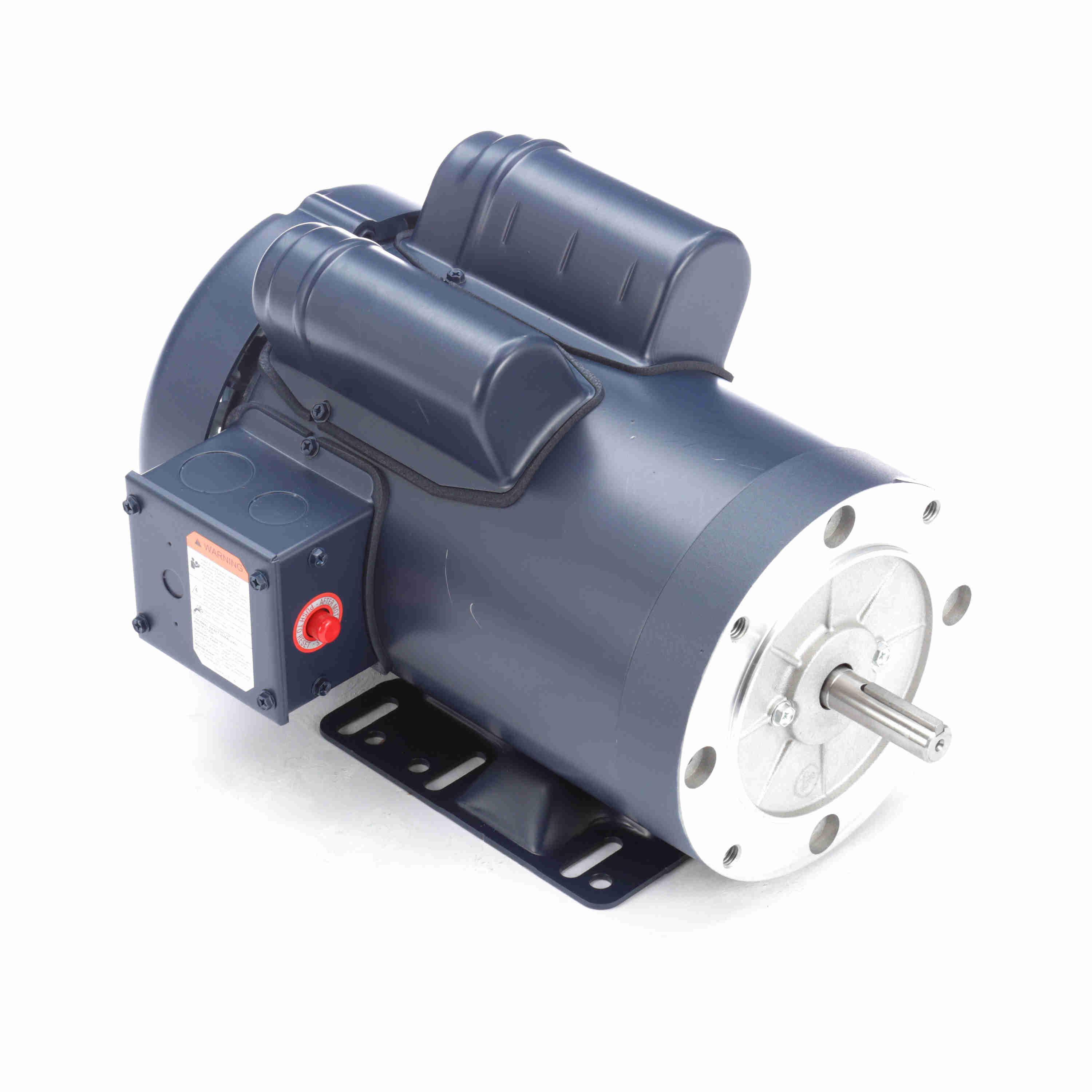

LEESON® 115048.00 2-Pole Continuous Duty AC Motor, Totally Enclosed Fan Cooled Enclosure, 3 hp, 208 to 230 VAC, 60 Hz, 1 Phase, 56HC Frame, 3450 rpm Speed, C-Face/Rigid Base Mount
-
BrandLEESON®
-
UPC691720014424
-
Manufacturer Part Number115048.00
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialRolled Steel
-
Frame56HC
-
Torque Rating4.5 ft-lb
-
Frequency Rating60 Hz
-
Type2-Pole Continuous Duty
-
Mounting TypeC-Face/Rigid Base
-
RotationSelective CCW
-
Voltage Rating208 to 230 V AC
-
Amperage Rating14 to 13 A
-
Application TypeCompressor Motors, Fan and Blower Motors, General Purpose AC Motors, Pressure Washer Motors
-
Service Factor1
-
Horsepower3 hp
-
Shaft Size0.63 in Dia x 1.88 in L
-
Dimensions13.98 in L
-
Bearing TypeBall
-
Number of Speeds1
-
Insulation ClassClass F
-
Special FeaturesCapacitor Start Motors
-
Speed3450 rpm
-
Enclosure TypeTEFC
-
Phase1
- Continuous duty cycledesignallows maximum operation at the rated power
- Heavy-duty, rolled steel construction ensures motor durability
- Permanently lubricated sealed bearings extend the lifetime of the motor
- Operational at 208-230 V at 60HZ
- Nameplate image may vary from actual product
- Operational at 208-230 V at 60Hz.
- Continuous duty cycle design allows maximum operation at the rated power specifications
- Class B or F Insulation protects motor for a maximum temperature rating
- Permanently lubricated, double-sealed bearings extend the lifetime of the motor
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 61KN35 |
-
Alternative Part NumberP6K34FK17E
-
UNSPSC26101602
-
Package DescriptionEACH
-
Standards/ApprovalsCSA Certified|UL Listed
-
Warranty1 Year
-
Specification Sheet
