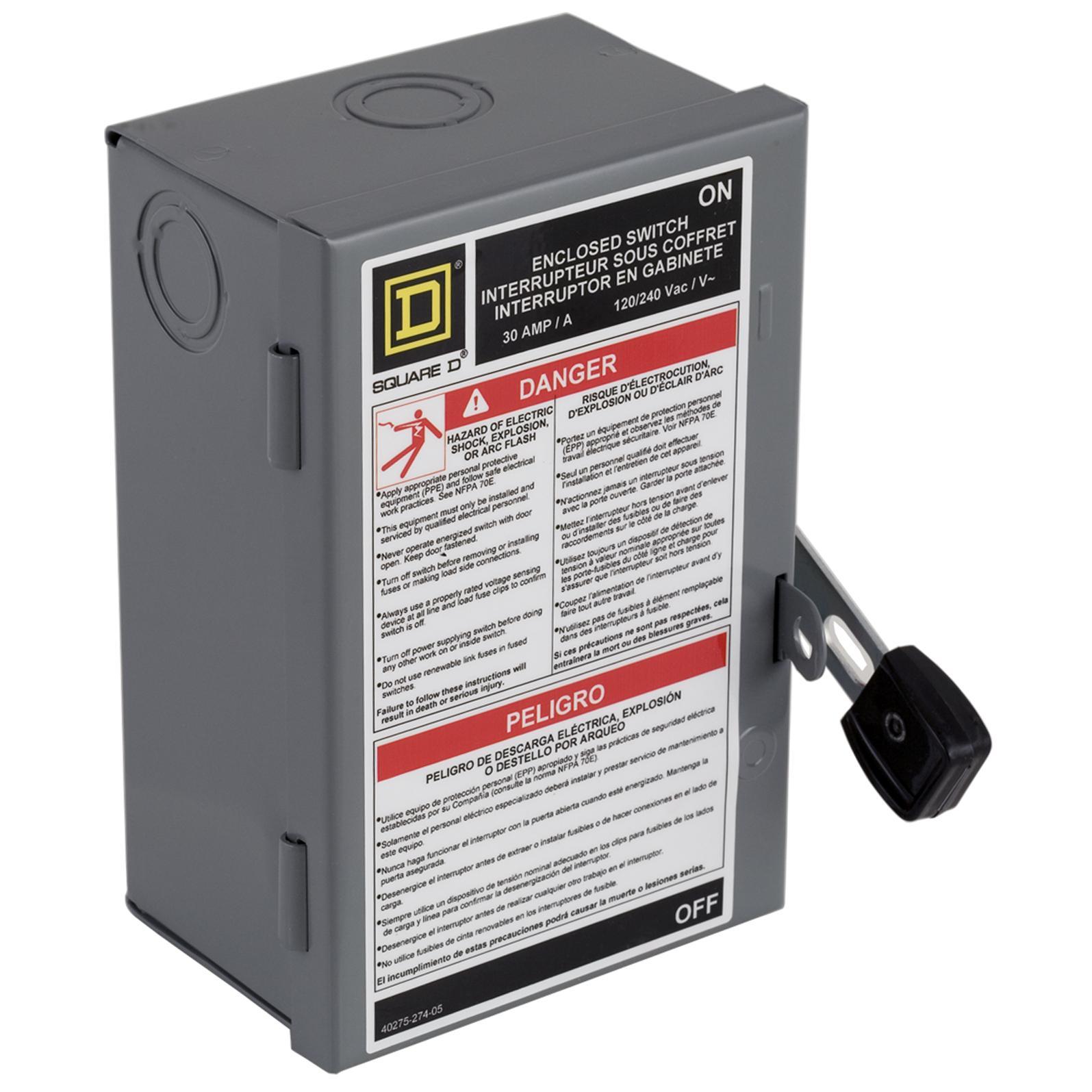

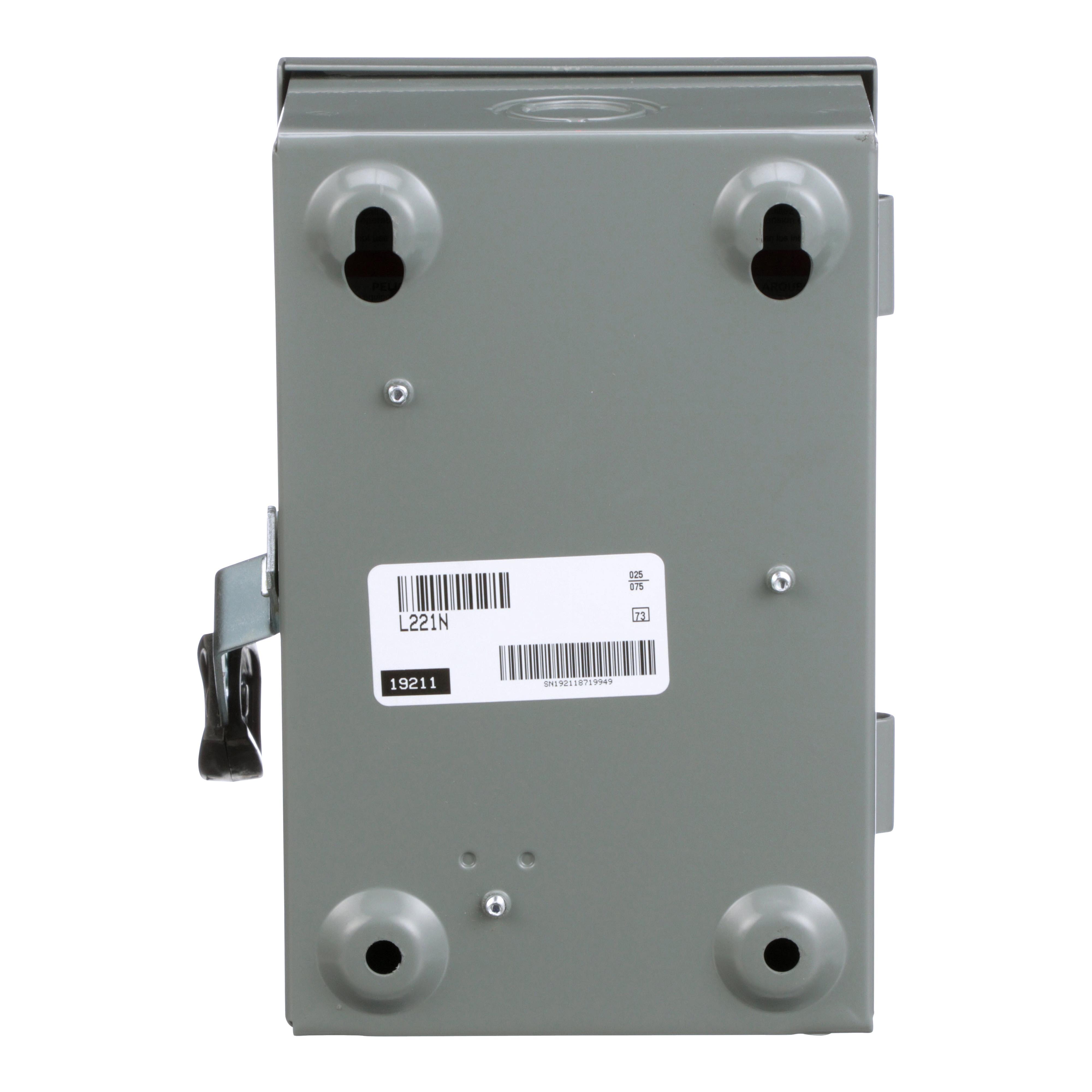

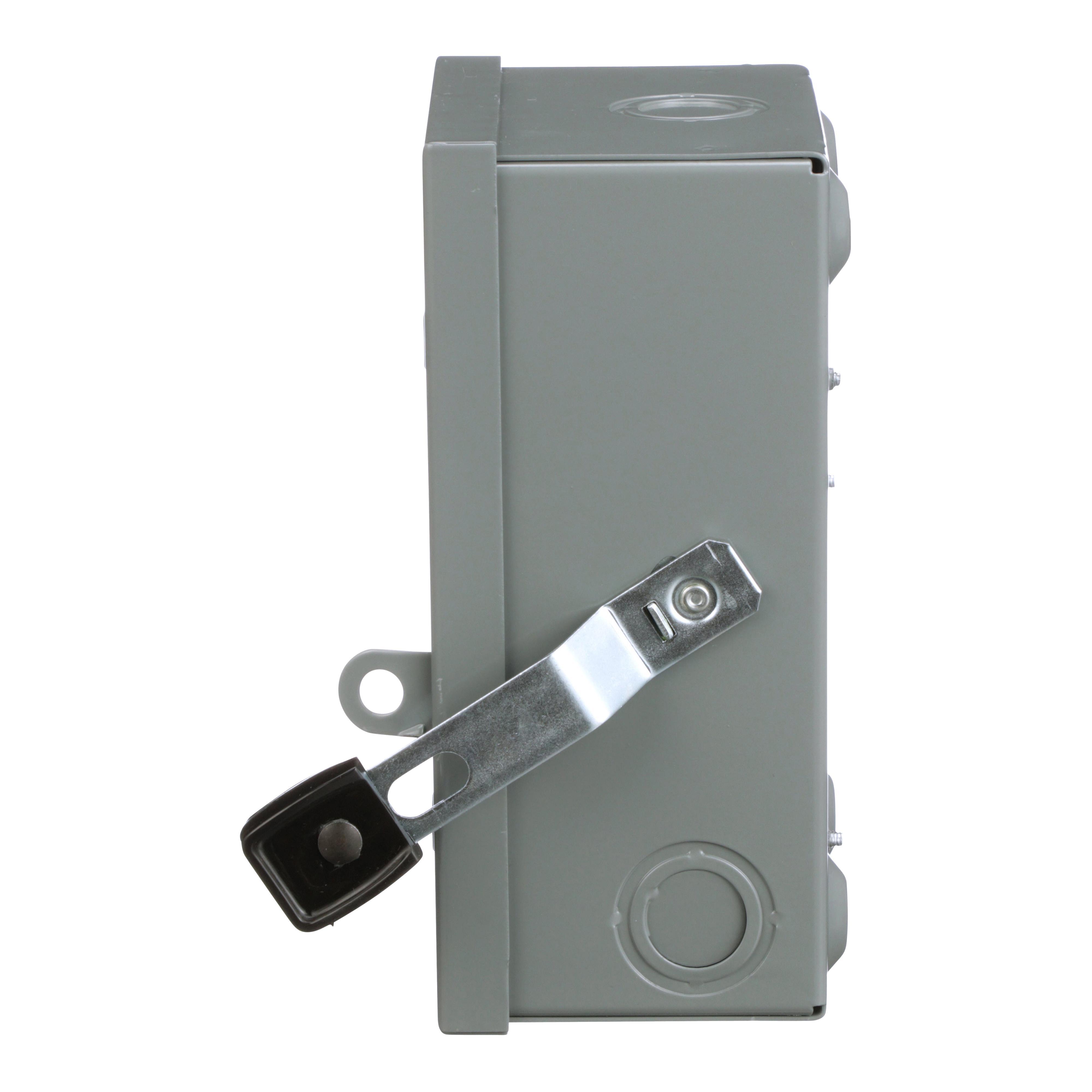

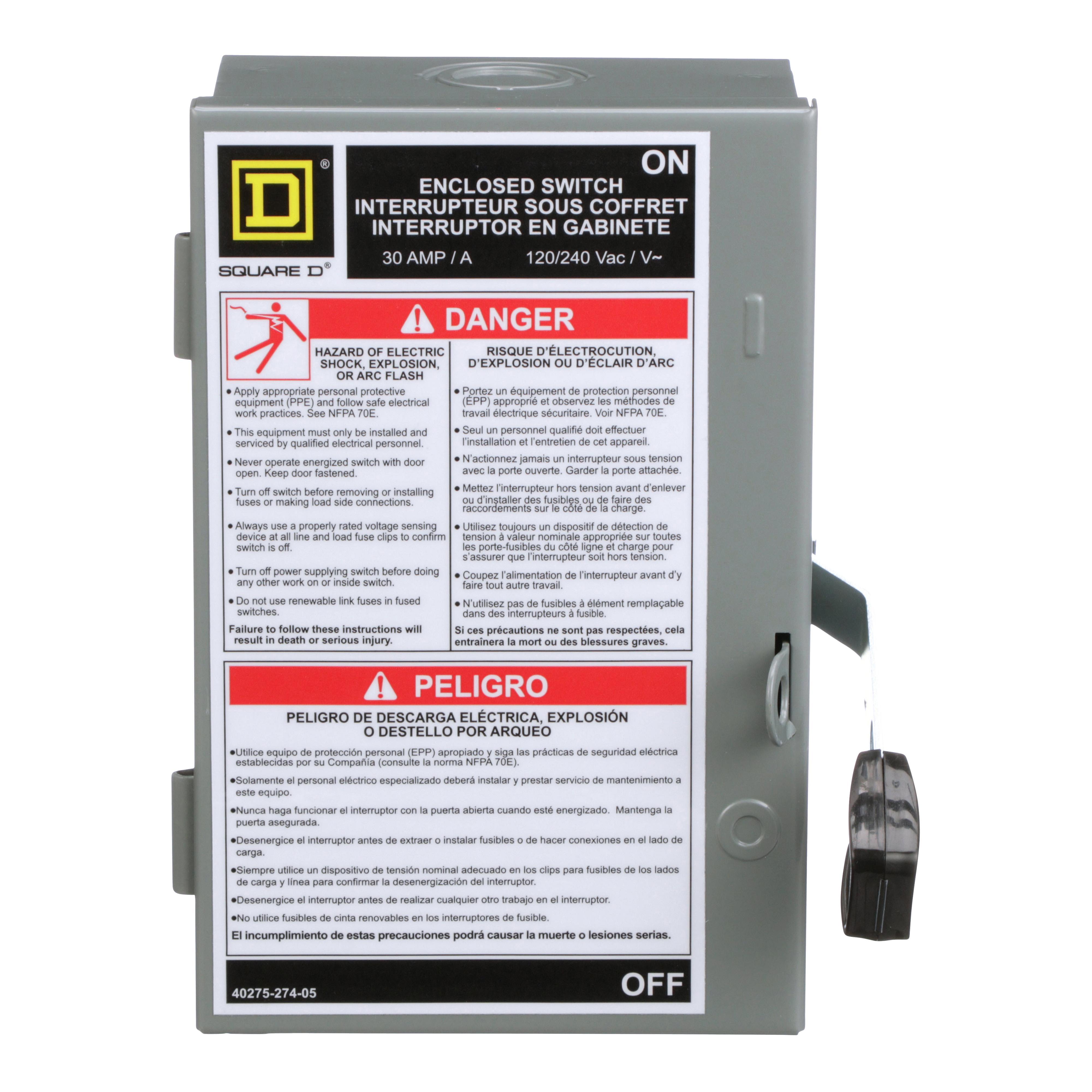

Square D™ L221N E2 Series Fusible General Purpose Light Duty Safety Switch, 120/240 V AC, 30 A, 2 or 3 hp, 2 Poles
Schneider Electric's Square D light duty safety switches are ideal for home applications in disconnecting power to workshops, hobby rooms, furnaces, and garages. This single throw safety switch is a fusible disconnect and has a rated current of 30A for 240VAC. This light duty switch has a 3 wire configuration with 2 poles and a factory installed neutral. The device accepts cartridge fuse types. The enclosure is surface mounted and is a Type 1.
-
BrandSquare D™
-
UPC785901499022
-
Manufacturer Part NumberL221N
-
CountryUSA
-
TypeFusible General Purpose Light Duty
-
Mounting TypeSurface
-
Voltage Rating120/240 V AC
-
Amperage Rating30 A
-
SeriesE2 Series
-
Horsepower2 or 3 hp
-
Short Circuit Current Rating10 kA
-
Number of Poles2
-
Dimensions5 in W x 4 in D x 7.63 in H
-
Number of Wires3
-
Enclosure TypeNEMA 1
-
Phase1
- Slow make, slow break operating mechanism
- Factory installed neutral
- The light duty safety switch has visible blades and a ground lug as standard features
| Cross-Reference Number |
|---|
| 517224 |
-
Alternative Part Number8072068
-
UNSPSC39122205
-
IDEA Index ID8072068
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL 98|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
