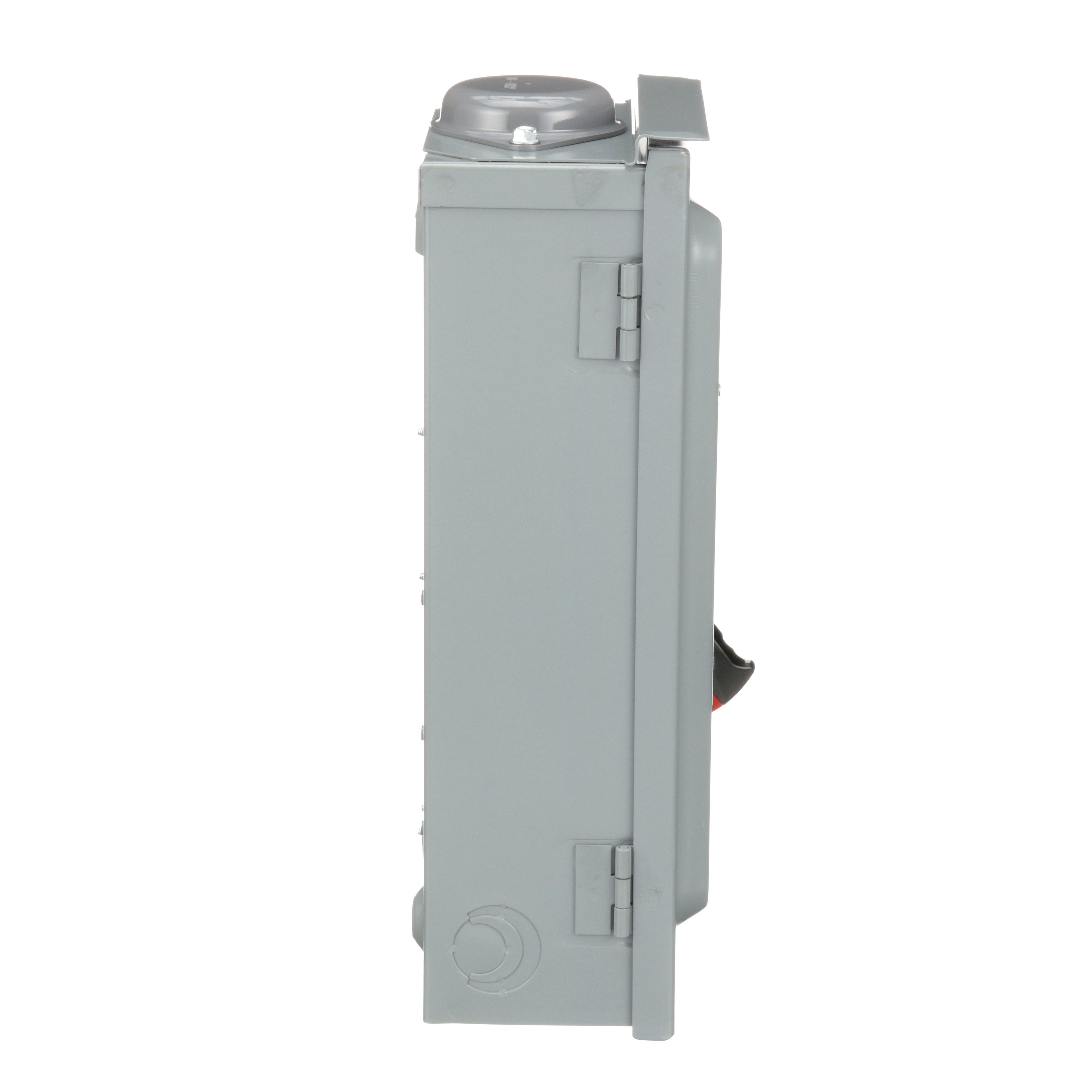

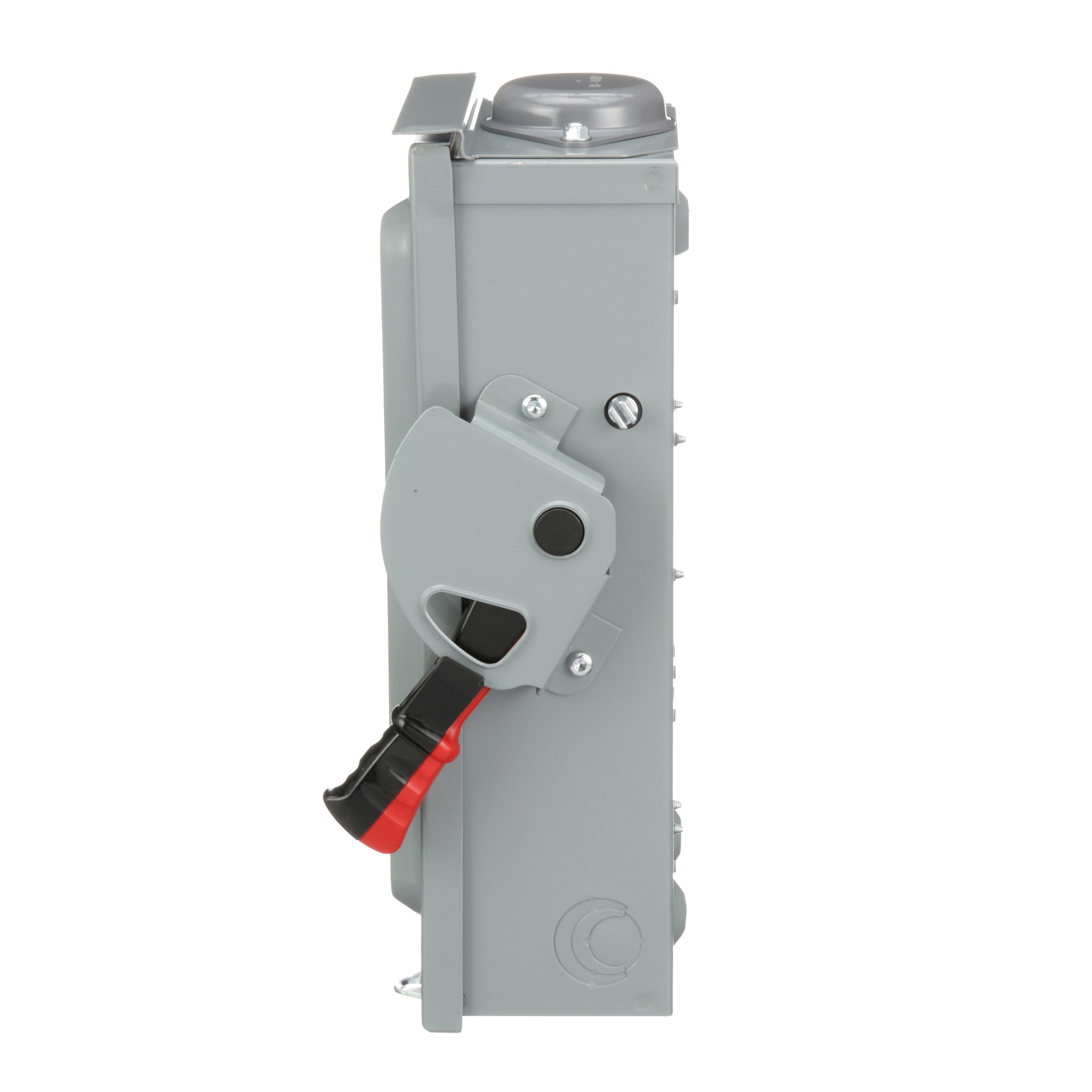

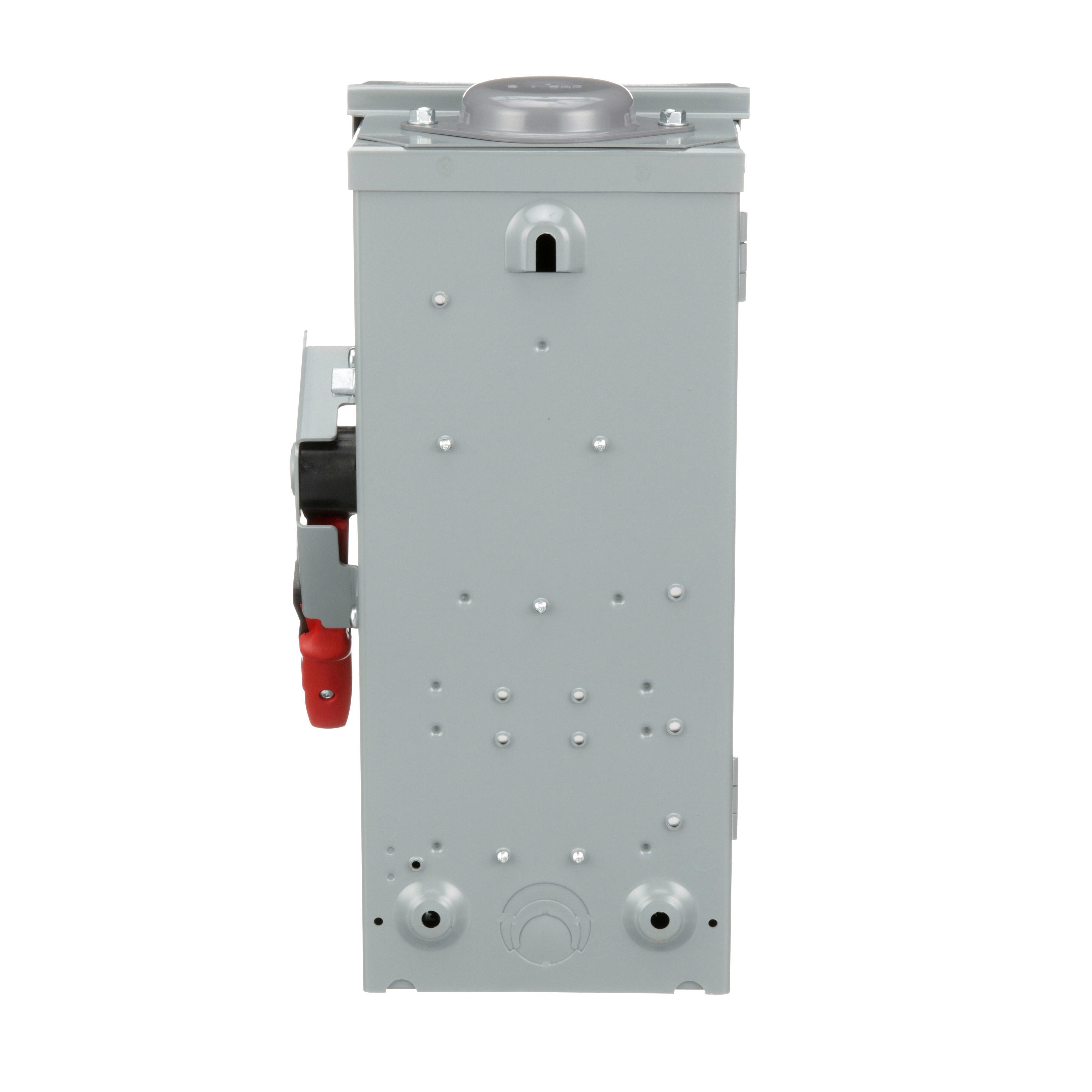

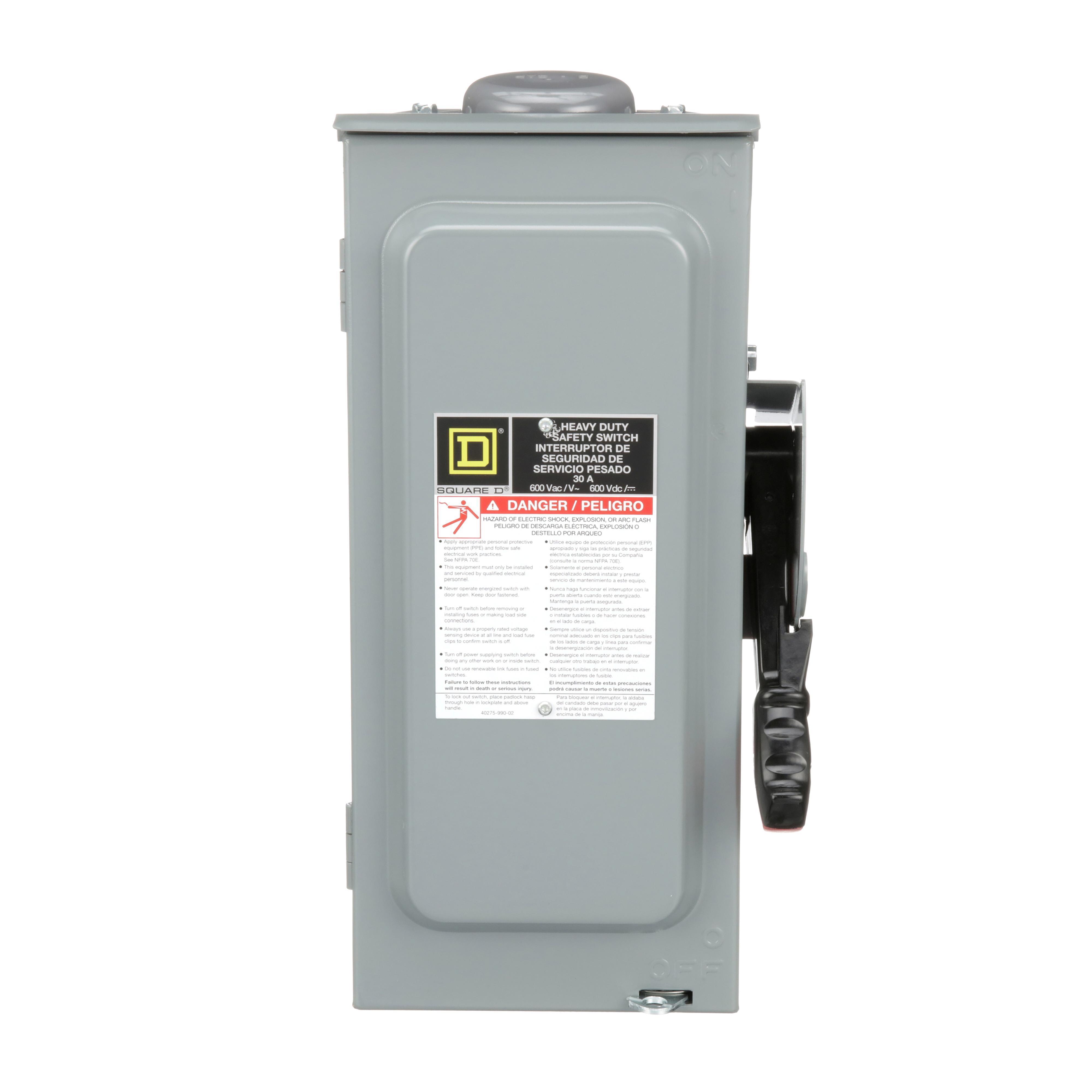

Square-D 30-AMP 600-VOLT 3-PHASE DISCONNECT SQU H-361-RB
Visible blade heavy duty safety switches are designed for application where maximum performance and continuity of service are required. All heavy duty safety switches feature quick-make, quick-break operating mechanism, a dual cover interlock and a color coded indicator handle. They are suitable for use as service equipment when equipped with a field- or factory installed neutral assembly or equipment grounding kit, unless a 600Y/347 VAC or 480 Y/277 VAV, 1000 A or greater, solidly grounded WYE system is used.
-
BrandSquare D™
-
UPC785901481966
-
Manufacturer Part NumberH361RB
-
CountryUSA|Canada
-
FinishHot Dipped Galvanized
-
Terminal TypeLug
-
MaterialSteel
-
Frequency Rating50/60 Hz
-
TypeHeavy Duty Fusible Iceproof Rainproof
-
Contact Form3PST
-
Mounting TypeSurface
-
Actuator TypeHandle
-
Voltage Rating600 V AC/DC
-
Amperage Rating30 A
-
Horsepower7-1/2 hp, 15 hp
-
Short Circuit Current Rating10/200 kA
-
Number of Poles3
-
Dimensions7.55 in W x 4.86 in D x 14.88 in H
-
Number of Wires3
-
Enclosure TypeNEMA 3R
-
Phase3
-
Alternative Part Number8062689
-
UNSPSC39122205
-
IDEA Index ID8062689
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL File No. E2875|ECCN EAR99|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Instruction/Installation Manual
-
Owners/User Manual
