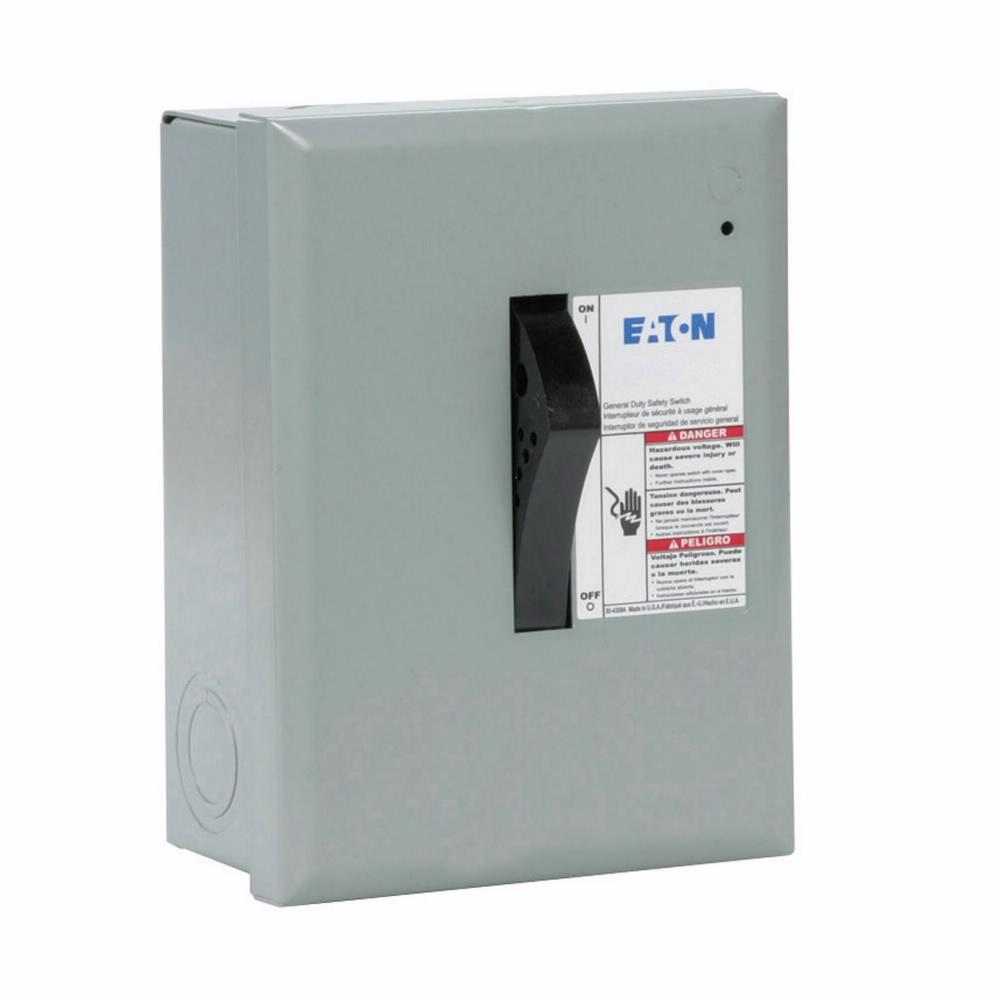

EATON DP111NGB B Series General Duty Plug Fusible Safety Switch With Neutral, 240 V AC, 30 A, 1/2 to 2 hp, SPST Contact, 1 Pole
General duty safety switches are used in residential and commercial applications. They are suitable for light duty motor circuits and service entrance applications. Fusible (plug or cartridge) and non-fusible switches are available.
-
BrandEATON
-
UPC782113140827
-
Manufacturer Part NumberDP111NGB
-
CountryUSA
-
FinishPainted
-
MaterialSteel
-
TypeGeneral Duty Plug Fusible
-
Contact FormSPST
-
Voltage Rating240 V AC
-
Amperage Rating30 A
-
SeriesB Series
-
Horsepower1/2 to 2 hp
-
Number of Poles1
-
Dimensions6.88 x 6.38 x 10.69 in
-
Number of Wires2
-
Enclosure TypeNEMA 1
-
Phase1
- Suitable for service entrance applications unless otherwise noted
- Fusible and non-fusible switches are 100% load break and 100% load make rated
- The continuous load current of fusible switches is not to exceed 80% of the rating of fuses employed in other than motor circuits, non-fusible switches are 100% fully rated
- With class r fuses, switches may be used on systems capable of delivering 100000 A RMS symmetrical
- Bolt-on hub provision, provided for general duty switches in a NEMA 3R enclosure
- Switch does not have an interlock which prevents door from being opened when switch is in the on position, maximum hp ratings apply only when dual element fuses are used
-
Alternative Part Number7338945
-
UNSPSC39122205
-
IDEA Index ID7338945
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed|CCC Certified|CSA Certified|CE Certified
-
