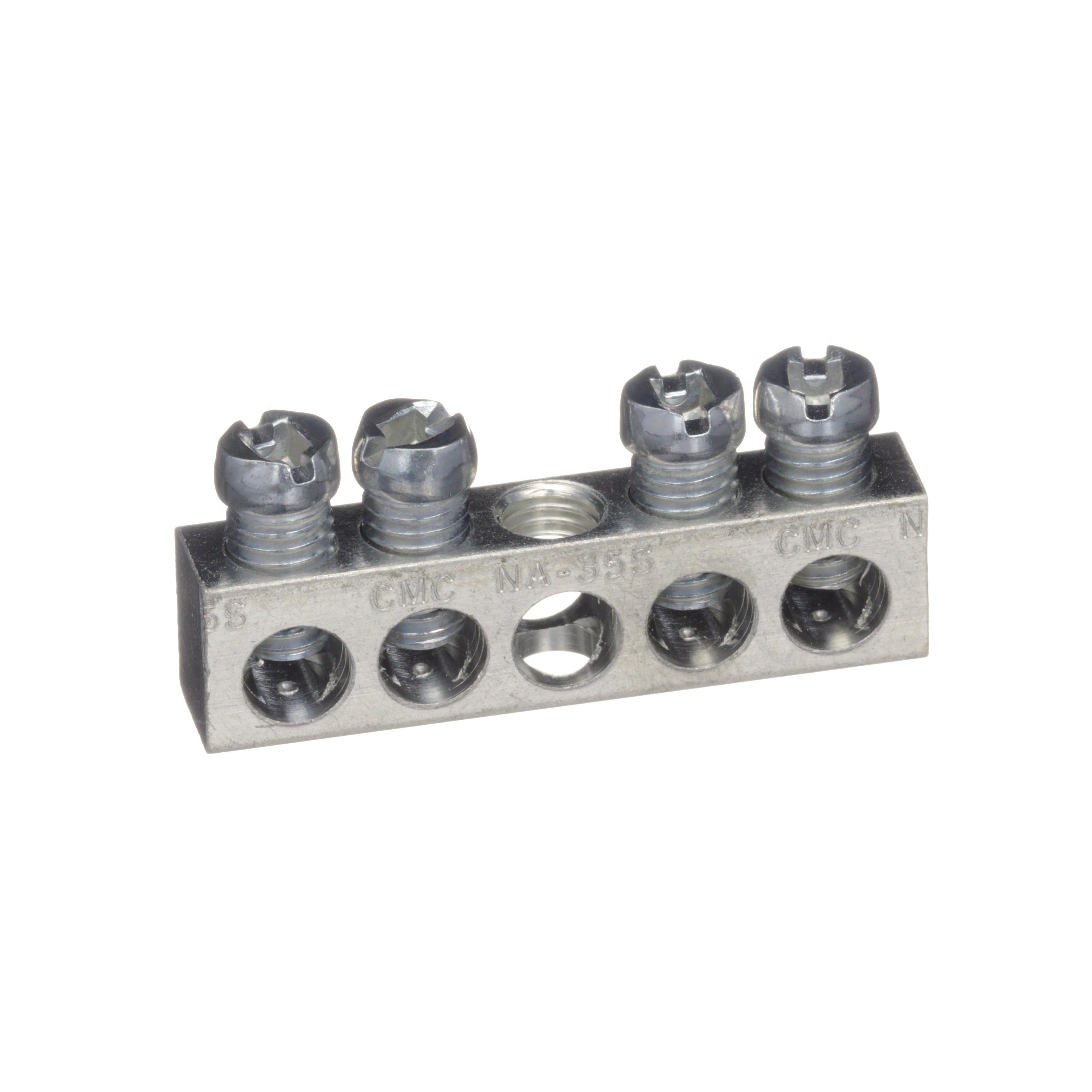

Square D™ QO™ PK4GTA Equipment Ground Bar Assembly, 1.63 in L, 14 to 4 AWG, 4 Terminals, For Use With QO™ Load Center and Type PK Circuit Breaker
By grounding the system, it helps prevent electrical shock hazards and ensures that stray electrical currents are safely directed to the earth. It acts as a centralized location where all ground wires from branch circuits are securely connected. It provides a neat and organized way to terminate multiple ground conductors, making the panel easier to inspect and maintain. This is a Ground Lug kit compatible for both QO and Homeline Load Center. It has 4 number of circuits which accepts (1) 14 4 or (2) 14 or 12AWG copper or (1) 12 4 or (2) 12 or 10AWG aluminum.
-
BrandSquare D™
-
UPC785901026365
-
Manufacturer Part NumberPK4GTA
-
CountryUSA
-
Conductor Size14 to 4 AWG
-
Length1.63 in
-
Suitable For Use WithQO™ Load Center and Type PK Circuit Breaker
- QO/Homeline Load center provides superior performance and durability
- Straight in wiring saves wire, labor, and time
- The fully distributed neutral bar allows for QO plug-on neutral circuit breakers in any space
-
Alternative Part Number8153703
-
UNSPSC39121101
-
IDEA Index ID8153703
-
Includes(2) 21594-14220 Mounting Screw
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|REACH Compliant|PROP65: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Specification Sheet
