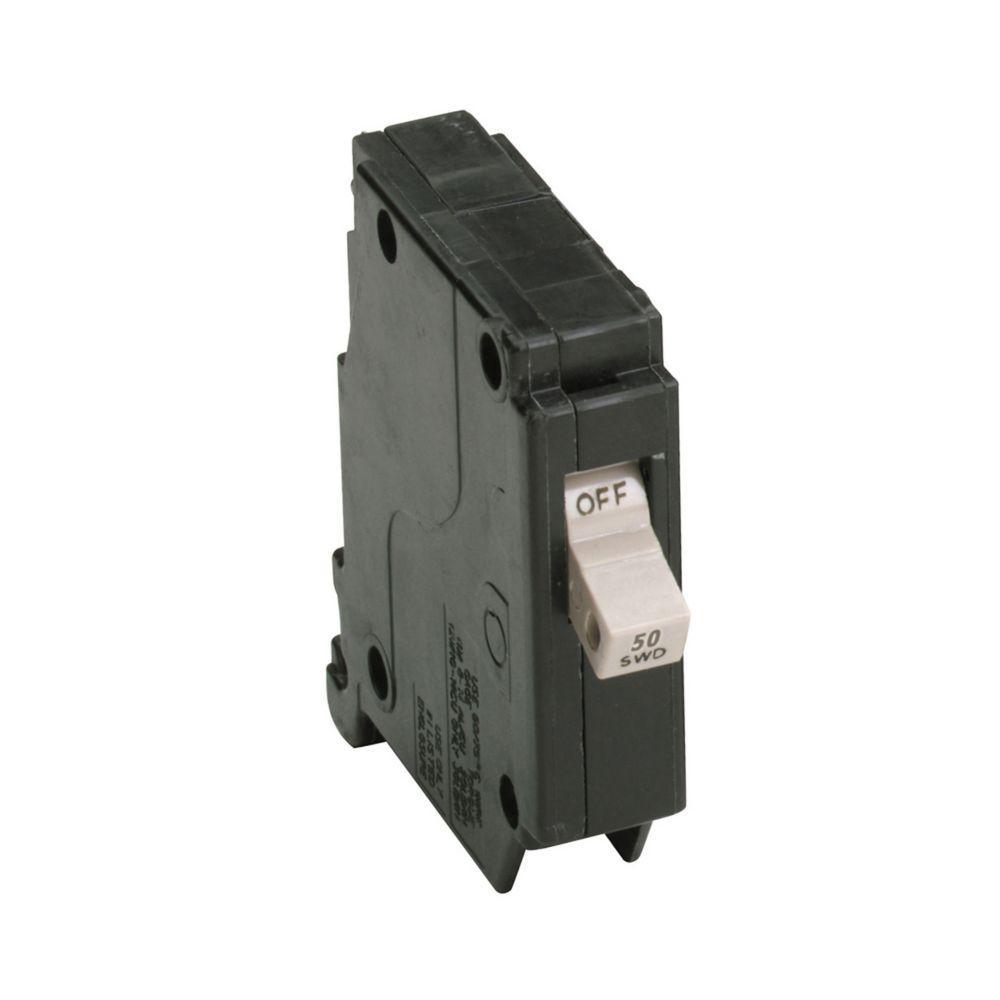

EATON CH150 Type CH Standard Circuit Breaker, 120/240 V AC, 50 A, 10 kA Interrupt, 1 Poles
Quick-make, quick-break switch mechanism combined with inverse time element tripping operation and trip-free handle design. Type CH circuit breakers trip to the off position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off the thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions. Multi-pole breakers have internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113101682
-
Manufacturer Part NumberCH150
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal/Magnetic
-
TypeType CH Standard
-
Connection TypeBox Lug
-
Mounting TypePlug-On
-
Actuator TypeToggle Handle
-
Voltage Rating120/240 V AC
-
Amperage Rating50 A
-
Wire Size14 to 2 AWG
-
Number of Poles1
-
Dimensions3-1/2 in L x 5 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
- 14 to 2 AWG copper/aluminum at 60 to 75 deg C
- Each pole of the circuit breaker will provide inverse time delay overload and instantaneous short circuit protection by means of both thermal and magnetic sensors
- The circuit breaker calibration shall not be affected by environmental changes in relative humidity
- All circuit breakers shall be operated by a toggle type handle and multipole circuit breakers shall have an internal common trip mechanism
- Contacts shall be of non-welding Silver alloy
- All terminals shall be listed for use with copper or aluminum conductors
- The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
- Breakers shall be SWD rated and/or HACR rated as required
- 3/4 in per pole
-
Alternative Part Number7335588
-
UNSPSC39121601
-
IDEA Index ID7335588
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489|Federal Specification W-C-375|UL File No. E11713|UL File No. E8741|UL File No. E3624|UL File No. E51287|CSA File No. LR87196
-
Warranty10 Years
-
Catalog
-
Specification Sheet
-
Owners/User Manual
