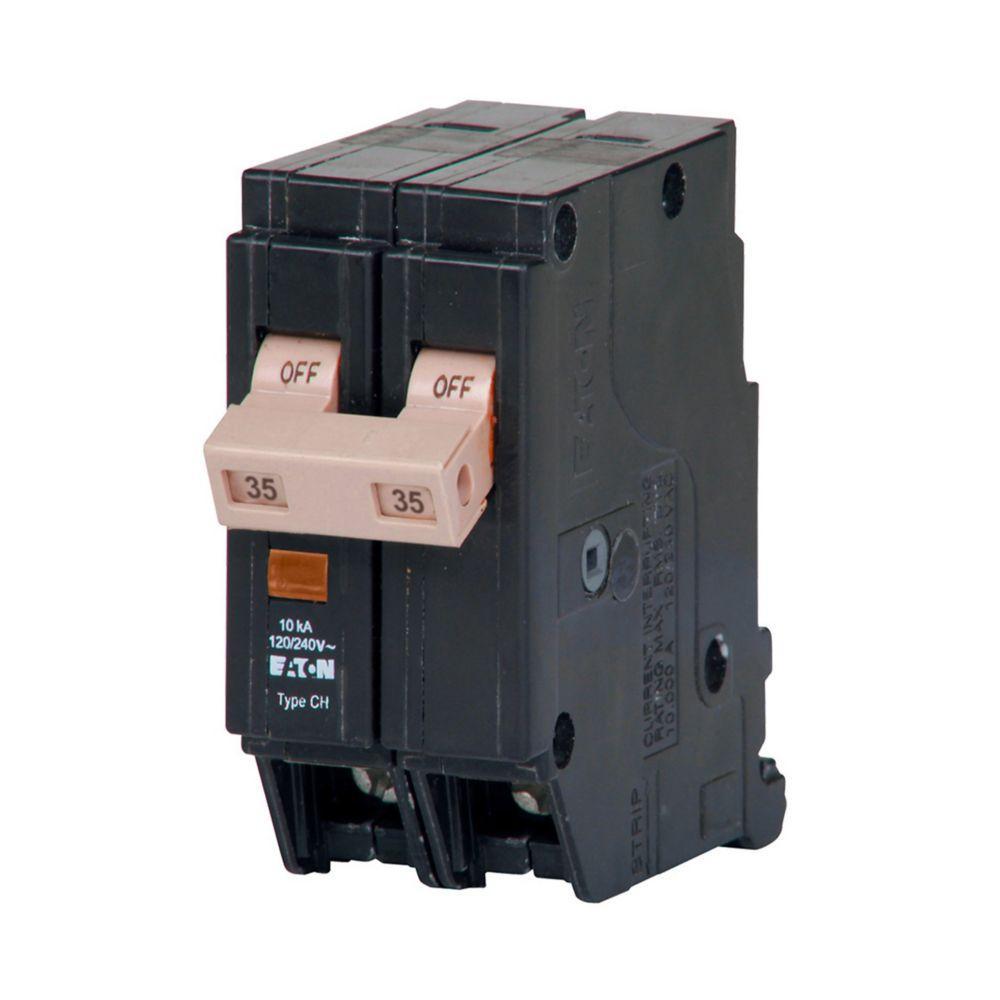

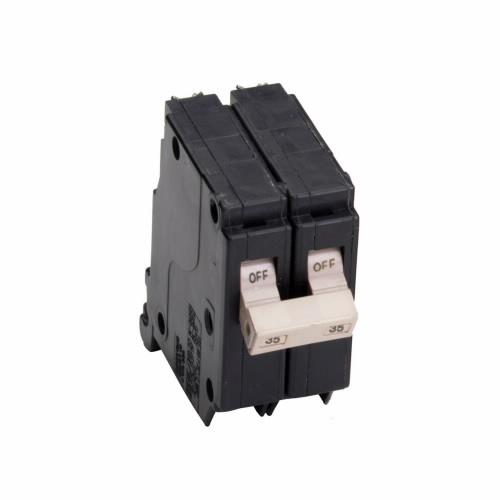

EATON CHF235 Type CHF Standard Thermal Magnetic Circuit Breaker With Mechanical Trip Flag, 120/240 V AC, 35 A, 10 kAIC Interrupt, 2 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC786685532158
-
Manufacturer Part NumberCHF235
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeCommon/Mechanical Trip Flag
-
TypeType CHF Standard
-
Connection TypeBox Lug
-
Mounting TypePlug-On
-
Actuator TypeToggle Handle
-
Voltage Rating120/240 V AC
-
Amperage Rating35 A
-
Wire Size(1) 14 to 8 AWG, (2) 14 to 10 AWG Copper/Aluminum
-
Number of Poles2
-
Dimensions3 in L x 3/4 in W x 3 in H
-
Interrupt Rating10 kAIC
-
Phase1
- (1) 14 to 8 AWG, (2) 14 to 10 AWG copper aluminum at 60 to 75 deg C wire range
- Easy to install
- Easy to reset
- Best in class performance
- Circuit breaker is clearly marked identifying amperage, ratings and the brand
- Trip flag visibly indicates breaker status
- 3/4 in per pole
- Breakers shall be SWD rated and/or HACR rated as required
- 3/4 in per pole
-
Alternative Part Number11271353
-
UNSPSC39121603
-
IDEA Index ID11271353
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,HACR Rated
-
WarrantyLimited Lifetime
-
Specification Sheet
-
Instruction/Installation Manual
