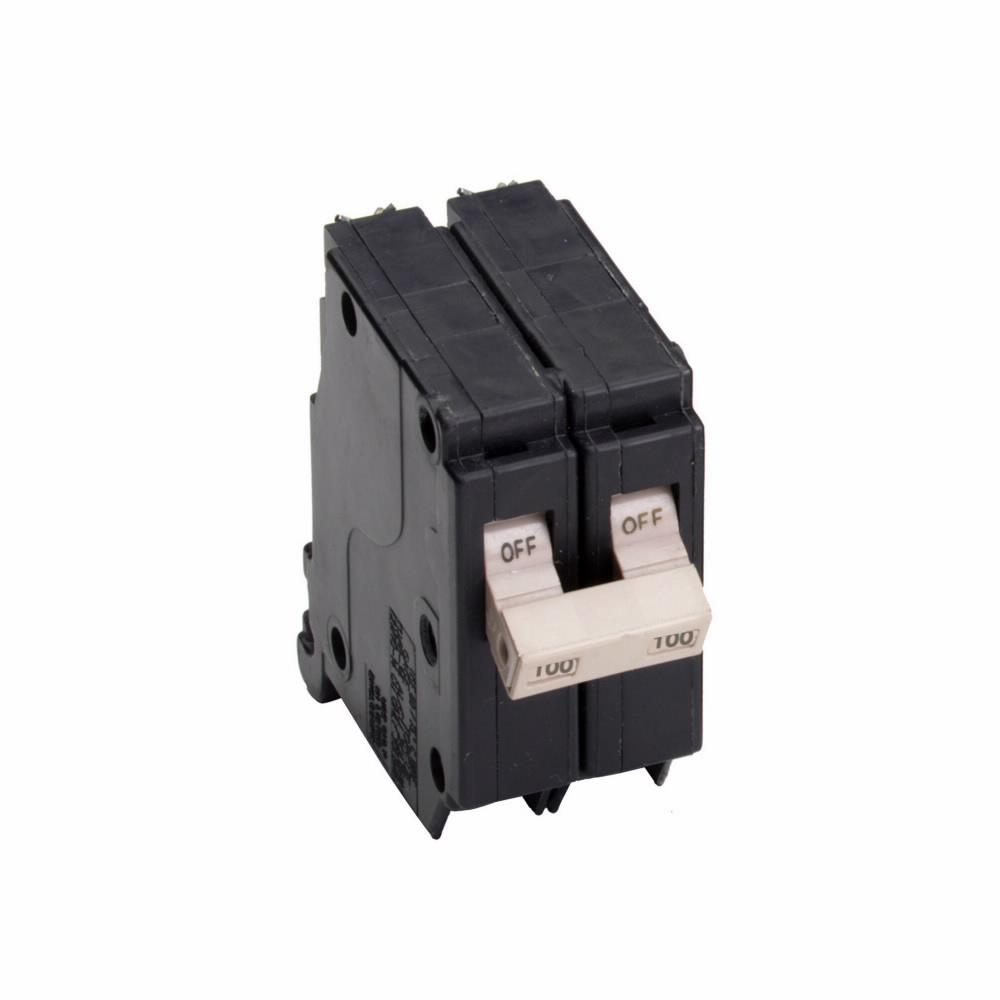

EATON CH2100CS Type CH Standard Thermal Magnetic Circuit Breaker, 120/240 V AC, 100 A, 10 kAIC Interrupt, 2 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782116630776
-
Manufacturer Part NumberCH2100CS
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeCommon/Thermal Magnetic
-
TypeType CH Standard
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
Wire Size10 to 1/0 AWG Copper/Aluminum
-
Number of Poles2
-
Dimensions6 in L x 4 in W x 2-1/4 in H
-
Interrupt Rating10 kAIC
-
Enclosure TypeNEMA 1/3R
-
Phase1
-
Connection TypeBox Lug
-
Actuator TypeToggle Handle
- Advanced electronics to reduce unwanted tripping from non-compliant devices
- Standard LED indicates one of seven trip codes to simplify circuit diagnostics
- Trip codes are stored permanently into the breakers memory
- to help identify trip history
- Branch overvoltage protection for sensitive electronics
- All terminals shall be listed for use with copper or aluminum conductors
- The terminals shall meet UL 486B requirements and shall be suitable for use with either 60 or 75 deg C wire
- Breakers shall be SWD rated and/or HACR rated as required
- 3/4 in per pole
- Clamshell pack
-
Alternative Part Number9219896
-
UNSPSC39121603
-
IDEA Index ID9219896
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
Warranty1 year
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Owners/User Manual
