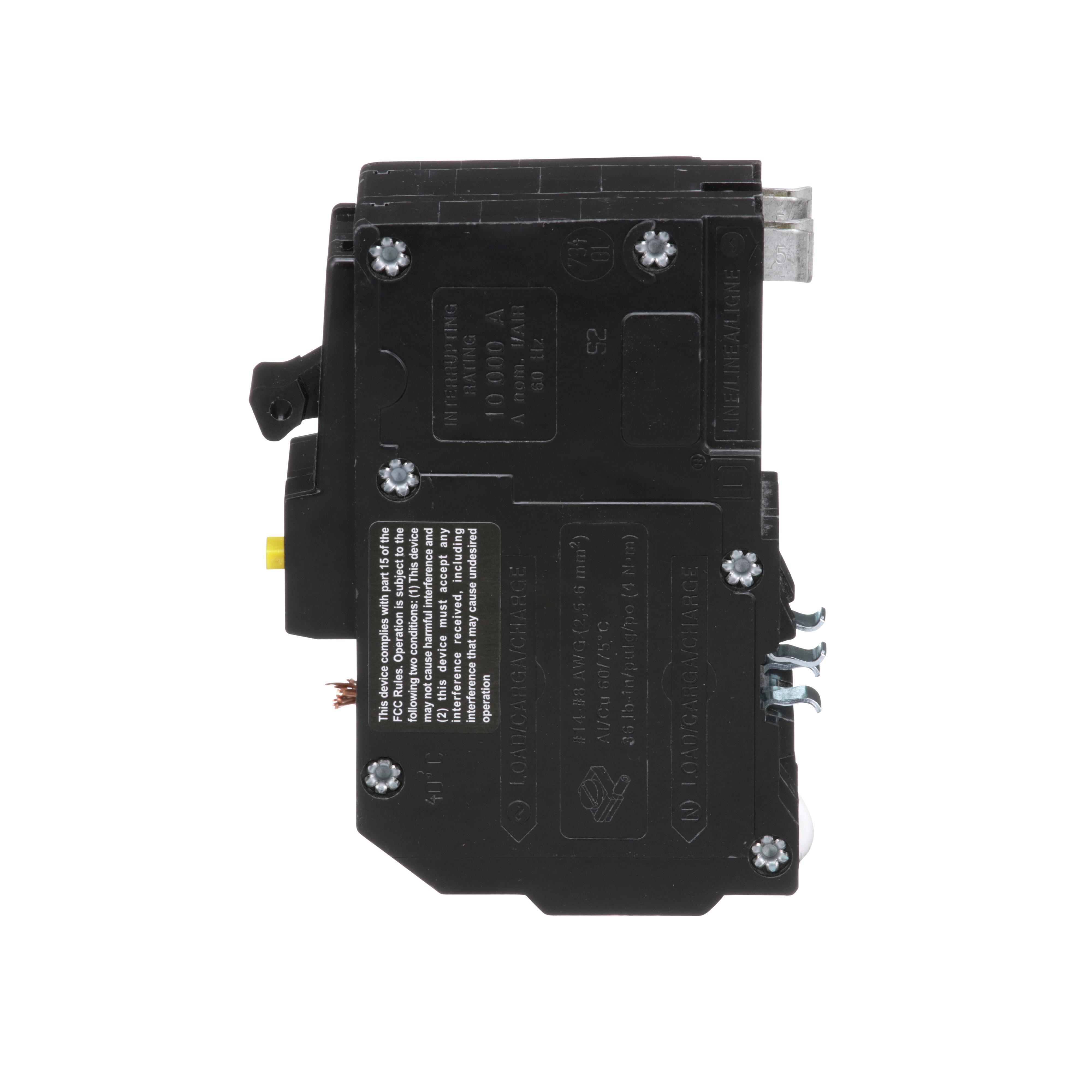

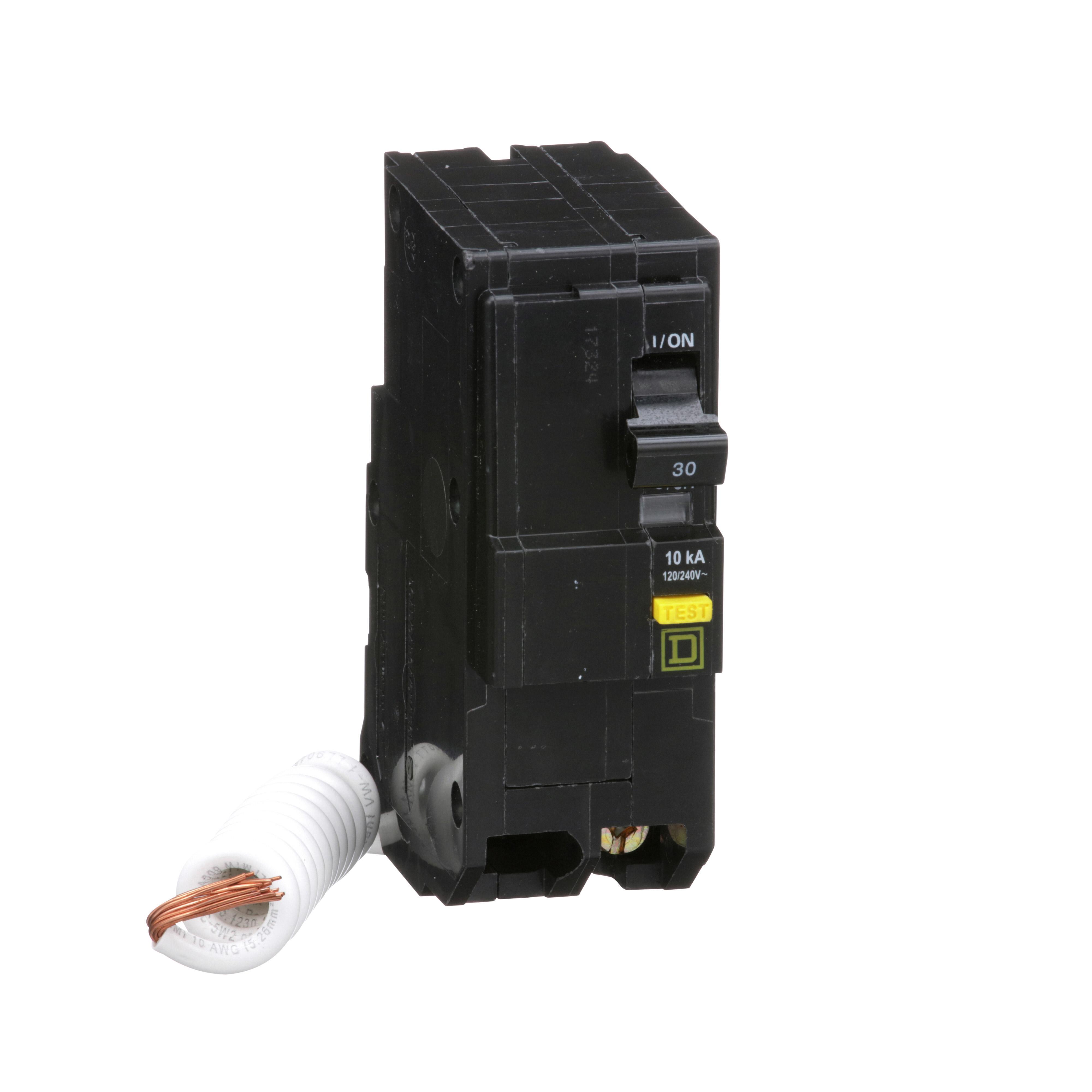

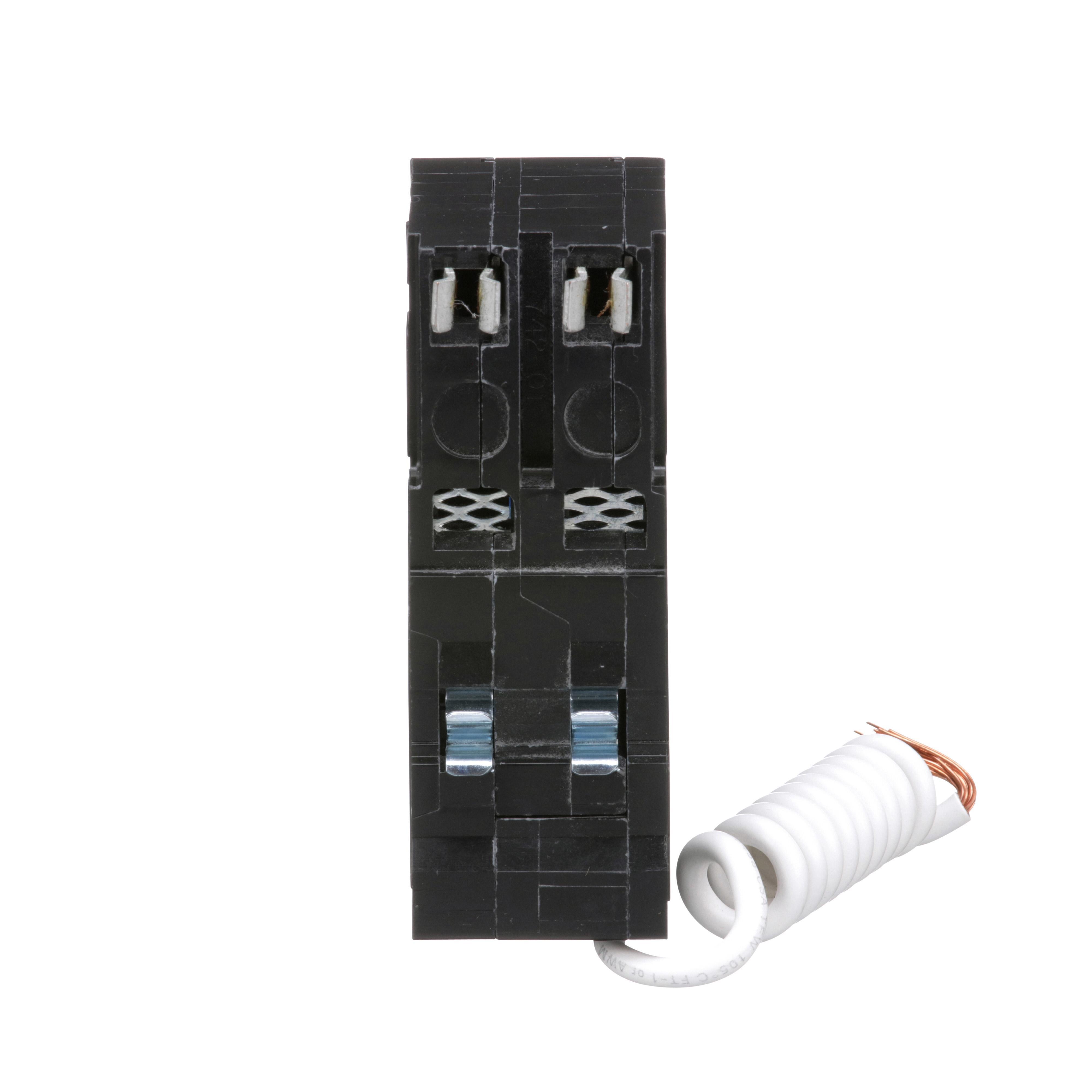

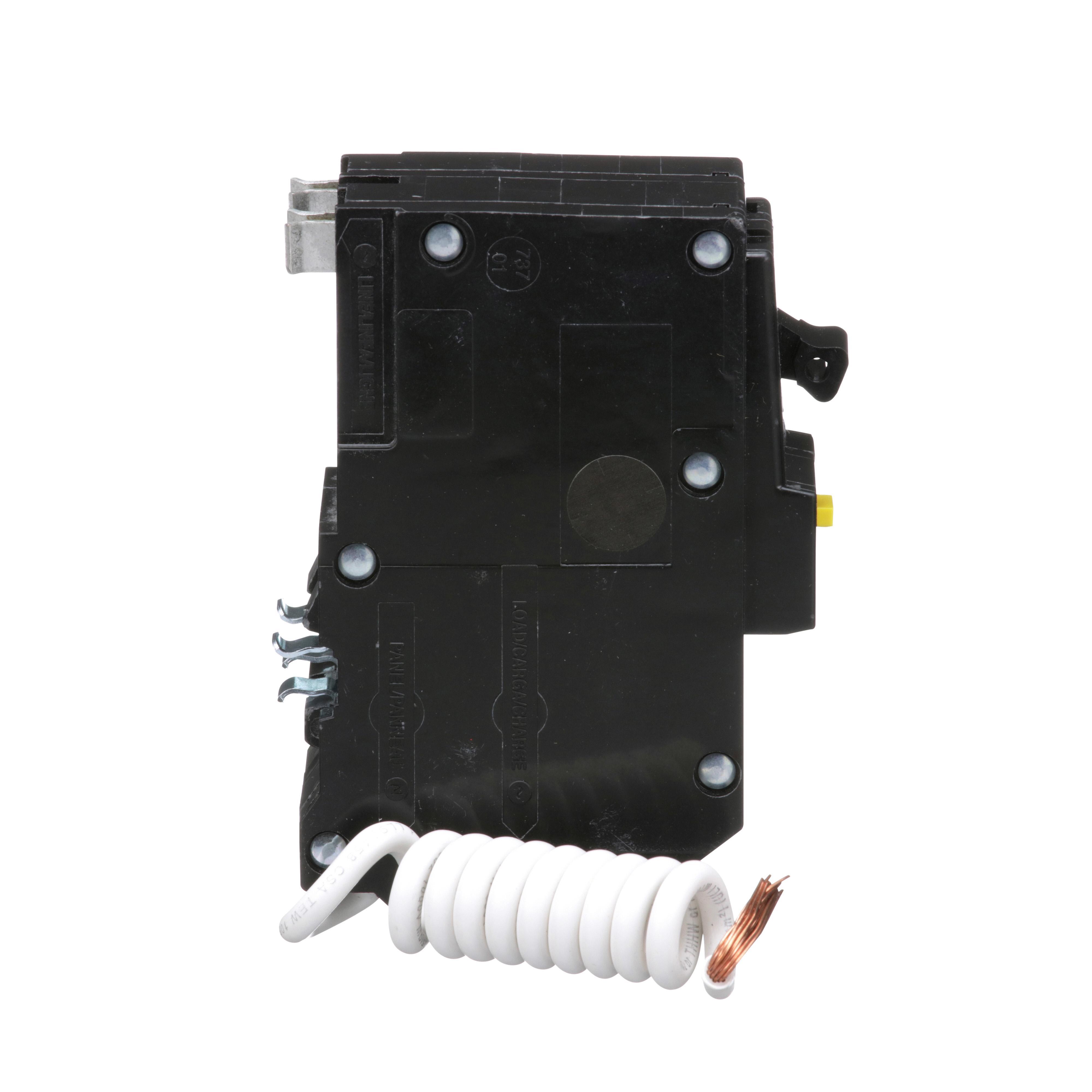

Square D™ QO230GFI Class A Ground Fault 2-Pole Circuit Breaker, 120/240 V AC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
-
BrandSquare D™
-
UPC785901563006
-
Manufacturer Part NumberQO230GFI
-
CountryUSA
-
Temperature Rating40 deg C
-
FrameQO
-
Frequency Rating60 Hz
-
Trip TypeThermal Magnetic
-
TypeClass A Ground Fault
-
Connection TypePressure Plate
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating30 A
-
Wire Size14 to 10 AWG, 14 to 8 AWG
-
Number of Poles2
-
Dimensions4.12 in H x 1.5 in W x 2.91 in D
-
Interrupt Rating10 kA
-
Phase1
- Reliable and durable
- Plug-on neutral design and shorter footprint for faster installs
- Simple design and clear instructions for quick setup
- Time-saving diagnostics with touch of a button
- 14 to 10 AWG copper, 14 to 8 AWG copper/aluminum
- Common trip
- Ground fault protecting class A 6 mA
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1D308 |
-
Alternative Part Number8092692|13917753
-
UNSPSC39121603
-
IDEA Index ID8092692
-
Package DescriptionEACH
-
Standards/ApprovalsCSA 22.2 No. 144 Certified|RoHS Compliant|UL 489 Listed
-
Warranty18 months
-
