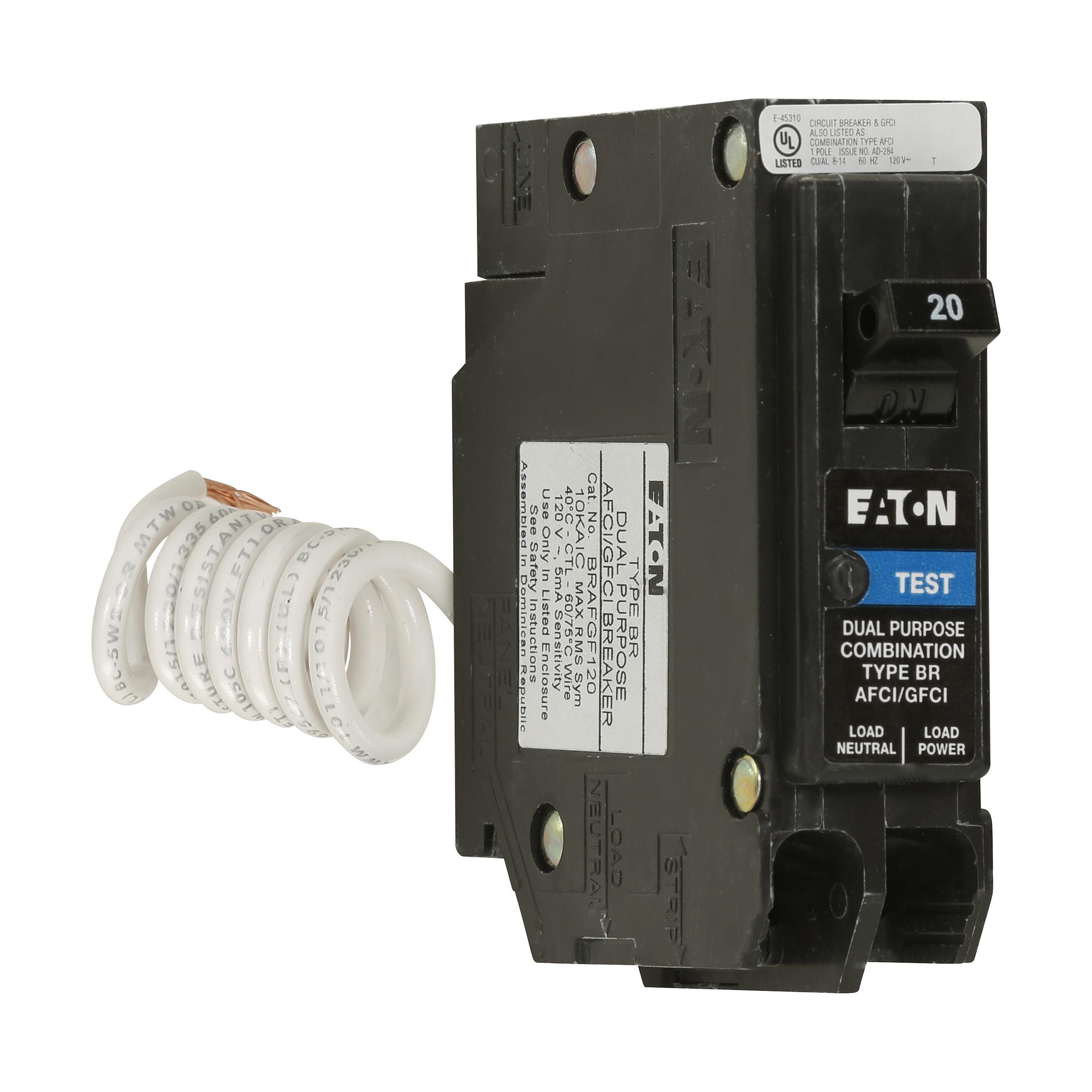

EATON BRAFGF120 Type BR AFCI/GFCI Advanced Combination Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 Pole
EATON BR (1 in) and QB (bolt-on) dual purpose AF/GF circuit interrupters are available in 15 and 20 A ratings with a short body configuration for easier installation. A diagnostic LED trip code indicator is also included, which displays 6 different codes to assist in troubleshooting.
-
BrandEATON
-
UPC786670008736
-
Manufacturer Part NumberBRAFGF120
-
CountryUSA
-
Temperature Rating-31 to 150 deg F
-
Power Rating0.6 W
-
Frequency Rating60 Hz
-
TypeType BR AFCI/GFCI
-
Connection TypePlug-On
-
Mounting TypePigtail
-
Voltage Rating120 V AC
-
Amperage Rating20 A
-
Number of Poles1
-
Dimensions2.9 x 2.9 x 0.99 in
-
Interrupt Rating10 kA
- Short body allows for better access to the wireway
- Overvoltage protection
- Continuous self-test of electronic components
- Advanced troubleshooting with six unique trip codes
-
UNSPSC39121603
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 943 File No. E45310
-
Warranty10 years
-
