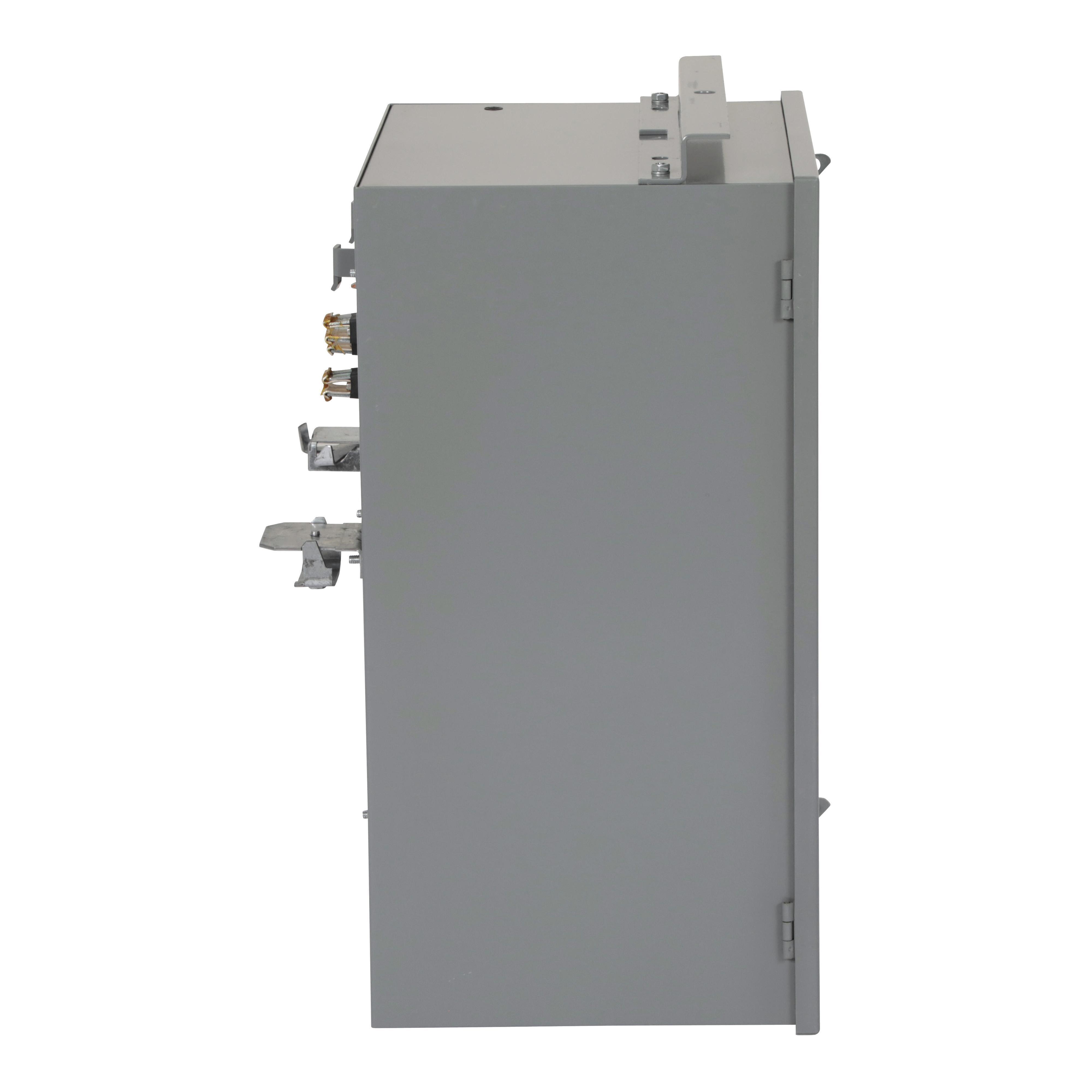

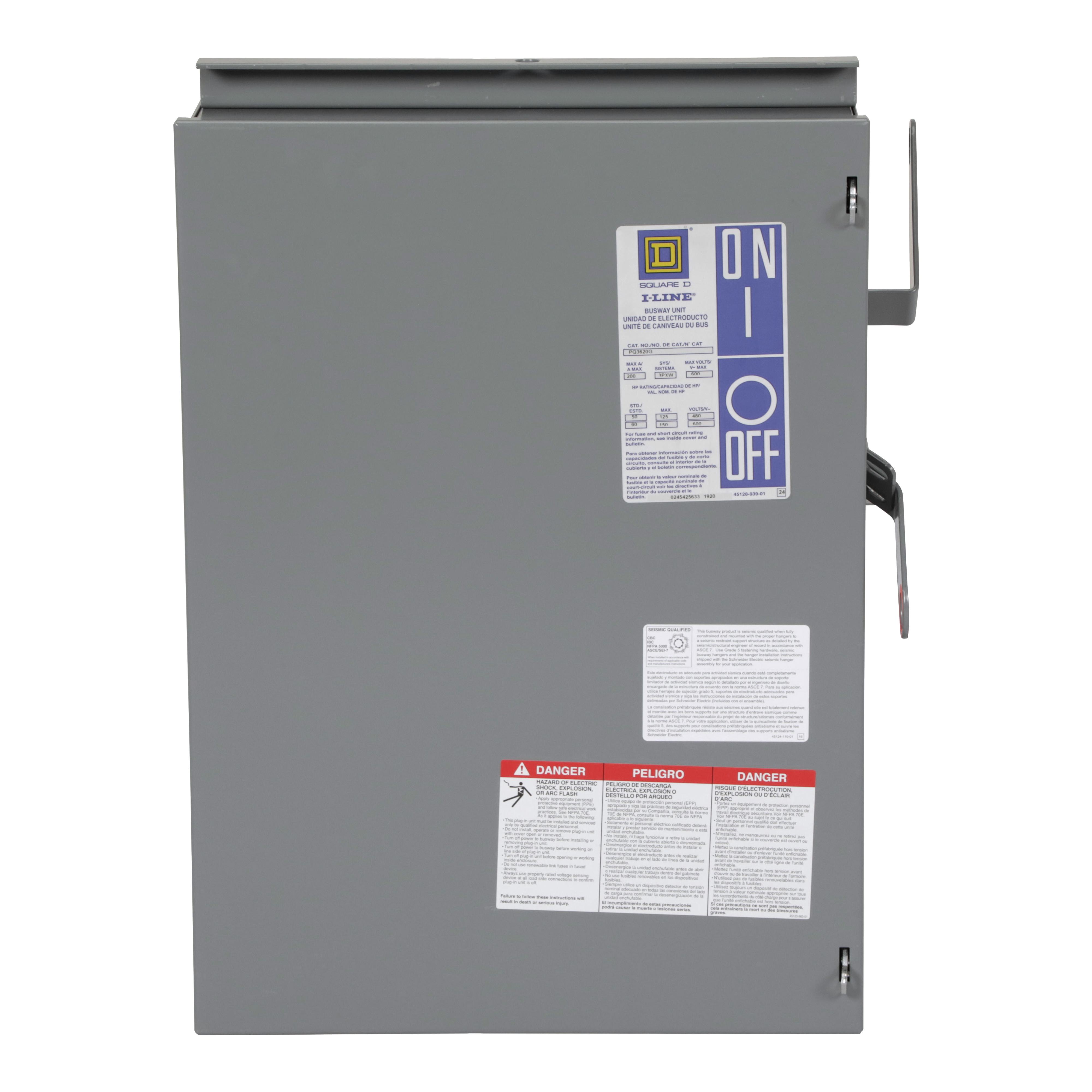

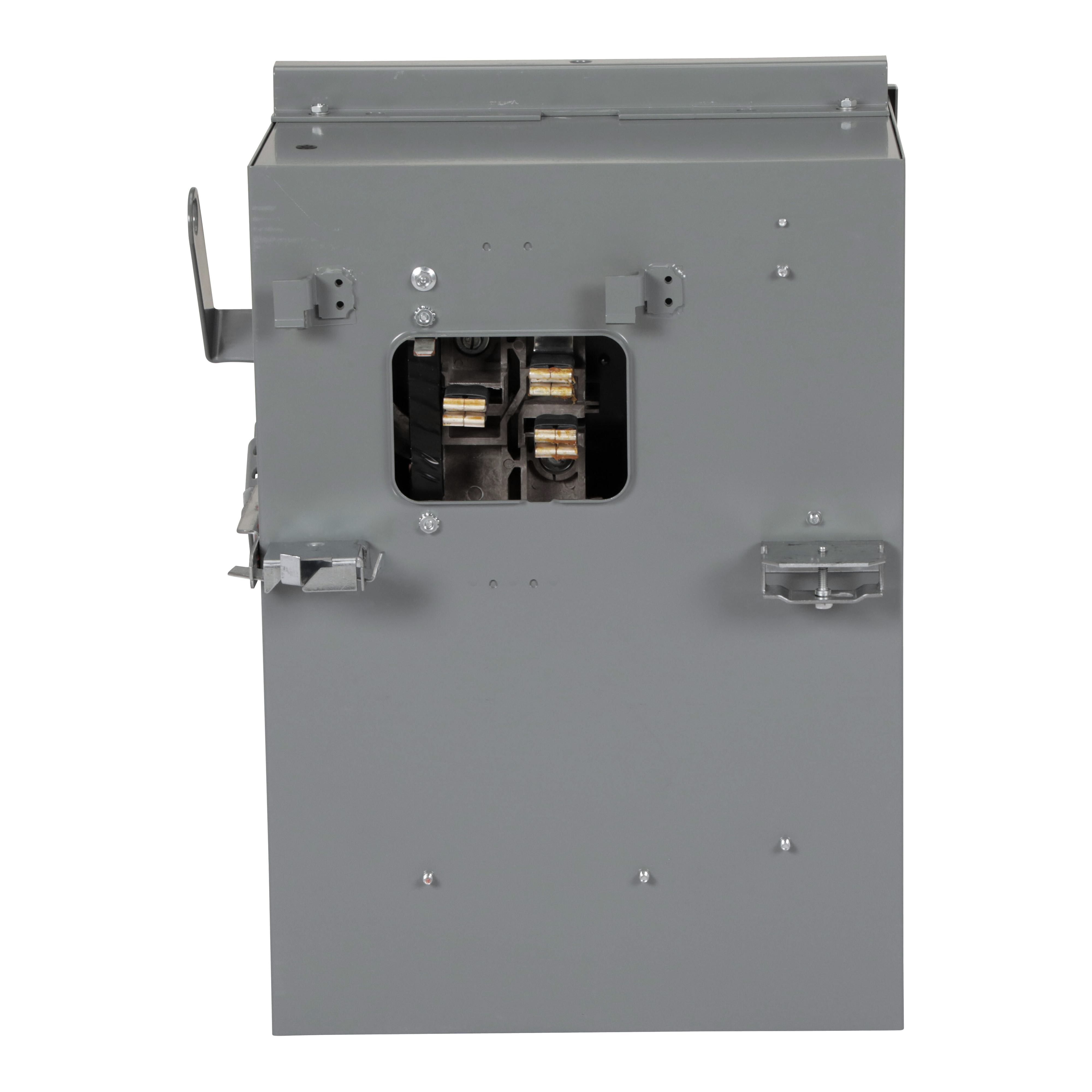

Square D™ PQ3620G Type PQ Ii Busway Fusible Plug-In, 277/480 V AC, 200 A, 4 Wires, FS Frame, NEMA 1 Enclosure
I-Line Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths, fittings, and plug-in units. I-Line plug-in busway has options to 1600A for circuit breaker plug-ins and 1200A for fusible plug-ins. Circuit breaker and fusible plug in units are available in 3 phase, 3 wire or 3 phase, 4 wire configurations. This fusible plug-in unit is 200A, 600VAC max, 3 pole, and 3 fuse + G. This unit uses a plug in connection. This plug-in unit accepts H, K, J or R fuses. I-Line Busway plug in units are UL listed and CSA certified.
-
BrandSquare D™
-
UPC785901263937
-
Manufacturer Part NumberPQ3620G
-
CountryUSA|Canada
-
FrameFS
-
TypeType PQ
-
Voltage Rating277/480 V AC
-
Dimensions22-1/2 in L x 11-2/5 in W x 16-1/5 in H
-
Number of Wires4
-
Interrupt Rating200 kA
-
Enclosure TypeNEMA 1
-
Phase3
- Part of a family of compatible straights, fittings, accessories, and plug-in units for flexible design choices
- Fusible plug in units available through 1200A
- Electronic trips and communication packages available for circuit breaker plug in units
- Reduced installation time with mounting hook alignment to opening
- Four wire with integral ground bus
- Without neutral
- 3 poles, 3 fuse and ground
- 4-wire with integral ground bus
-
Alternative Part Number8110850
-
UNSPSC39131701
-
IDEA Index ID8110850
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed|CSA Certified|RoHS Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
