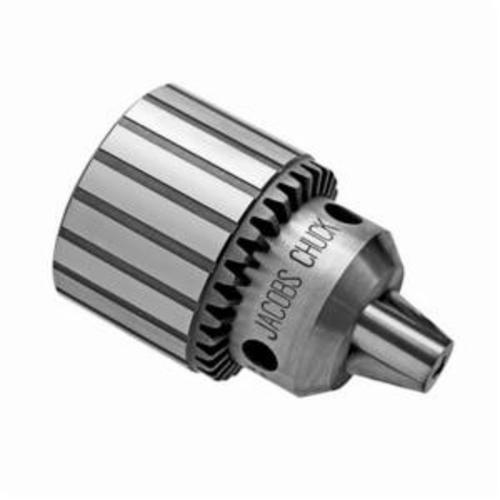

Jacobs® 6230 3PD Fluted Heavy Duty Drill Chuck, 1/8 to 5/8 in Capacity, 3JT Mounting, Plain Bearing, K3
Jacobs® 6230 3PD Fluted Heavy Duty Drill Chuck, 1/8 to 5/8 in Capacity, 3JT Mounting, Plain Bearing, K3
-
BrandJacobs®
-
UPC095456062306
-
Manufacturer Part Number6230
-
CountryUSA|Canada
-
Capacity1/8 to 5/8 in
-
Closed Length4.06 in
-
TypeFluted Heavy Duty
-
Mounting Type3JT
-
Series3PD
-
Bearing TypePlain
-
Open Length3.12 in
-
Key NumberK3
-
Outside Diameter2.29 in

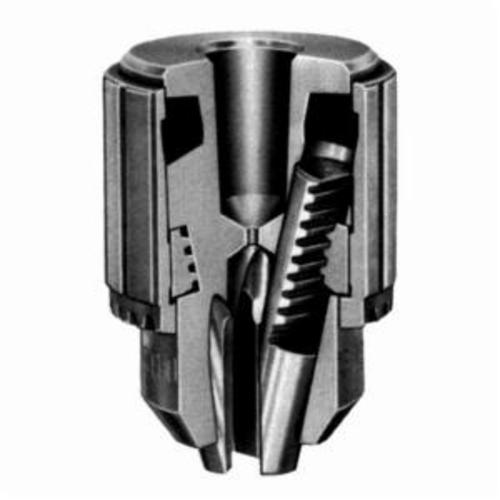

- Jaws center-ground for absolute straightness and alignment
- Through-hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance
- Steel chuck
- Each chuck 100% inspected for performance and precision
- One-piece sleeve eliminates crack between driving teeth often found in other designs
- T.I.R. 0.004 in maximum at half capacity
- This drill chuck is designed for heavy and medium duty applications using portable, bench, or floor-mounted power tools
- KD models have keyed Drive® feature
- Equipped with pin type positive Drive®
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3M318 |
-
UNSPSC27112807
-
Package Description1/BX
-
Warranty1 Year
-
