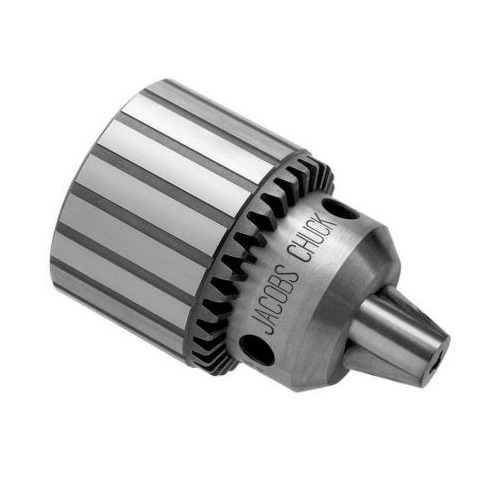

Jacobs® JCM6289 Medium Duty Drill Chuck, 0.08 to 0.5 in Capacity, 5/8-16 Threaded Mounting, Plain Bearing, K32 Key
Jacobs® JCM6289 Medium Duty Drill Chuck, 0.08 to 0.5 in Capacity, 5/8-16 Threaded Mounting, Plain Bearing, K32 Key
-
BrandJacobs®
-
UPC095456002890
-
Manufacturer Part NumberJCM6289
-
CountryUSA|Canada
-
Capacity0.08 to 0.5 in
-
Closed Length3.09 in
-
TypeMedium Duty
-
Mounting TypeThreaded
-
Bearing TypePlain
-
Open Length2.43 in
-
Key NumberK32
-
Outside Diameter1.79 in
- Jaws center ground for absolute straightness and alignment
- One piece sleeve eliminates crack between driving teeth often found in other designs
- Through hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance
- Each chuck 100% inspected for performance and precision
- TIR 0.004 in maximum at half capacity
- Models 0 and 1A are smooth sleeve
- All model 33 plain bearing chucks are hammer capable
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3M502 |
-
UNSPSC27112807
-
Package Description1/PK
-
Standards/ApprovalsPROP65: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
