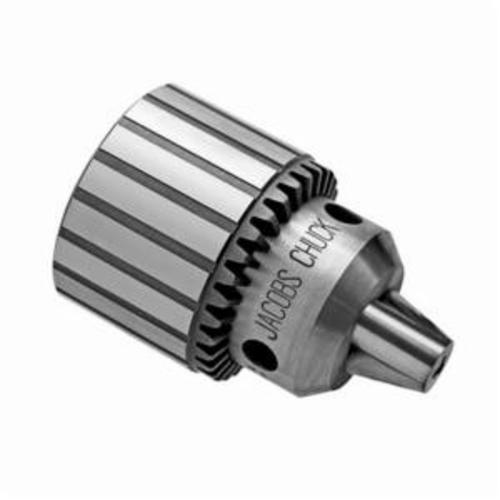

Jacobs® 6295D 34-06 Fluted Heavy Duty Drill Chuck, 0.04 to 0.5 in Capacity, 6JT Mounting, Plain Bearing, K3
Jacobs® 6295D 34-06 Fluted Heavy Duty Drill Chuck, 0.04 to 0.5 in Capacity, 6JT Mounting, Plain Bearing, K3
-
BrandJacobs®
-
UPC095456062955
-
Manufacturer Part Number6295D
-
CountryUSA
-
Capacity0.04 to 0.5 in
-
Closed Length3.52 in
-
TypeFluted Heavy Duty
-
Mounting Type6JT
-
Series34-06
-
Bearing TypePlain
-
Open Length2.74 in
-
Key NumberK3
-
Outside Diameter2.04 in
- Jaws center-ground for absolute straightness and alignment
- One piece sleeve eliminates crack between driving teeth often found in other designs
- Through-hardened sleeve teeth, plus hardened nose and keyholes provide outstanding wear resistance
- Each chuck 100% inspected for performance and precision
- T.I.R. 0.004 in maximum at half capacity
- KD models have keyed Drive® feature
- PD models have pin drive feature
- 34-33C has smooth sleeve with locking collar
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3M522 |
-
UNSPSC27112807
-
Package Description1/BX
-
Warranty1 Year
-
